FRU Label FRU Label
CL3854
Figure 4

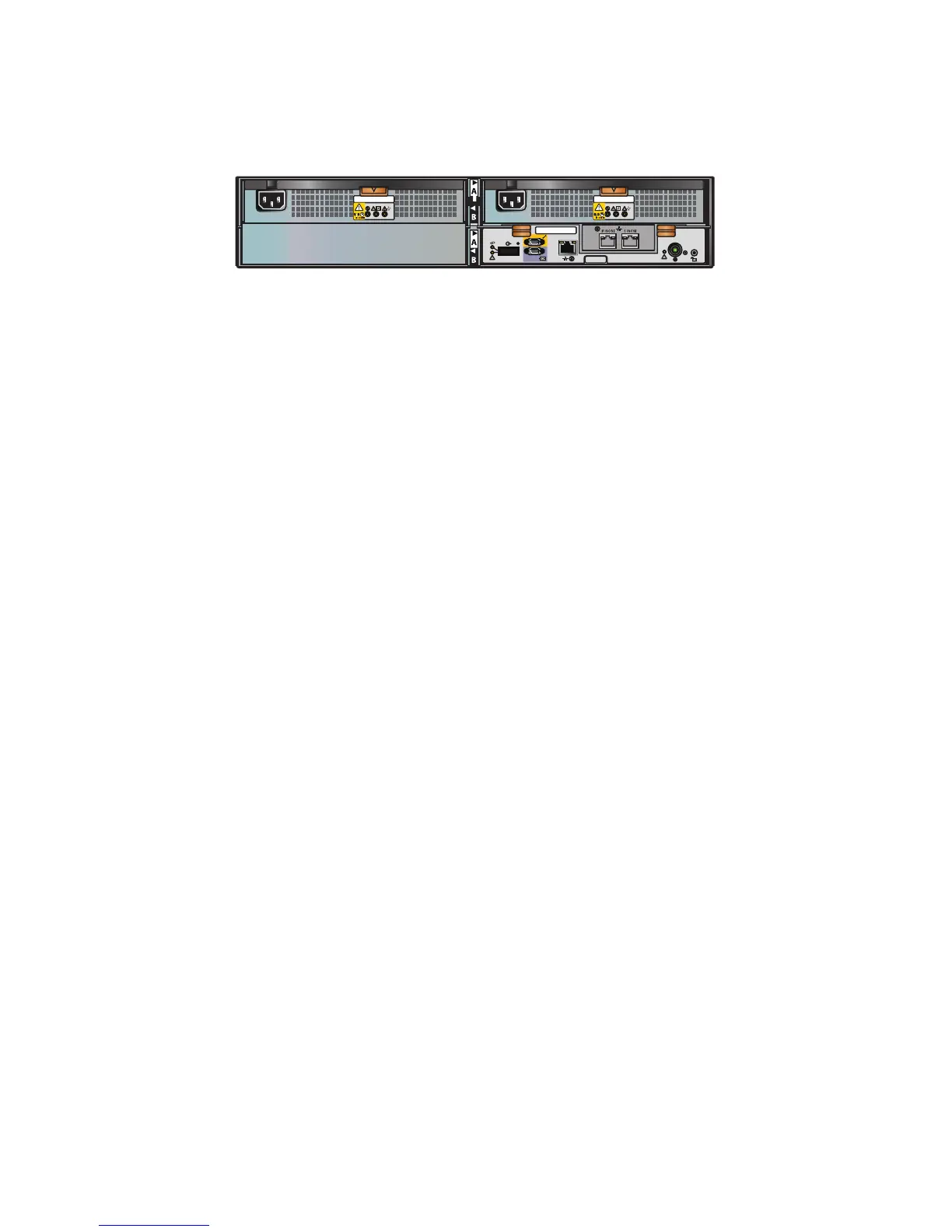

AX4-5SCi DPE-AX (rear view)
AX4-5 and AX4-5i systems include a standby power supply (SPS); a
second SPS is optional. AX4-5 and AX4-5i systems support as many as
four optional disk array enclosures (DAE-AXs). Like the DPE-AX, each
DAE-AX includes two power/cooling modules and can contain a total
of twelve disk drives. Instead of SPs, a DAE-AX has two link control
cards (LCCs) that manage disks on a single redundant back-end bus.
You can install, upgrade, or replace all of the major storage-system
components without professional assistance.
4
Hardware and Operational Overview
