Status lights and
indicators
Status lights, ma
de up of light emitting diodes (LEDs), indicate each
component’s curr
ent status. This section describes status lights visible
on the DPE-AX, DAE
-AX, and SPS.
DPE-AX lights and indicators
Figure 13 and Table 1 display the status lights visible from the front of
aDPE-AX:
SN:1234ABCD1234ABC
123 BPS
PN:123456789 REV123
SATA
Disk drive
activity
System
fault
System
power
CL3917

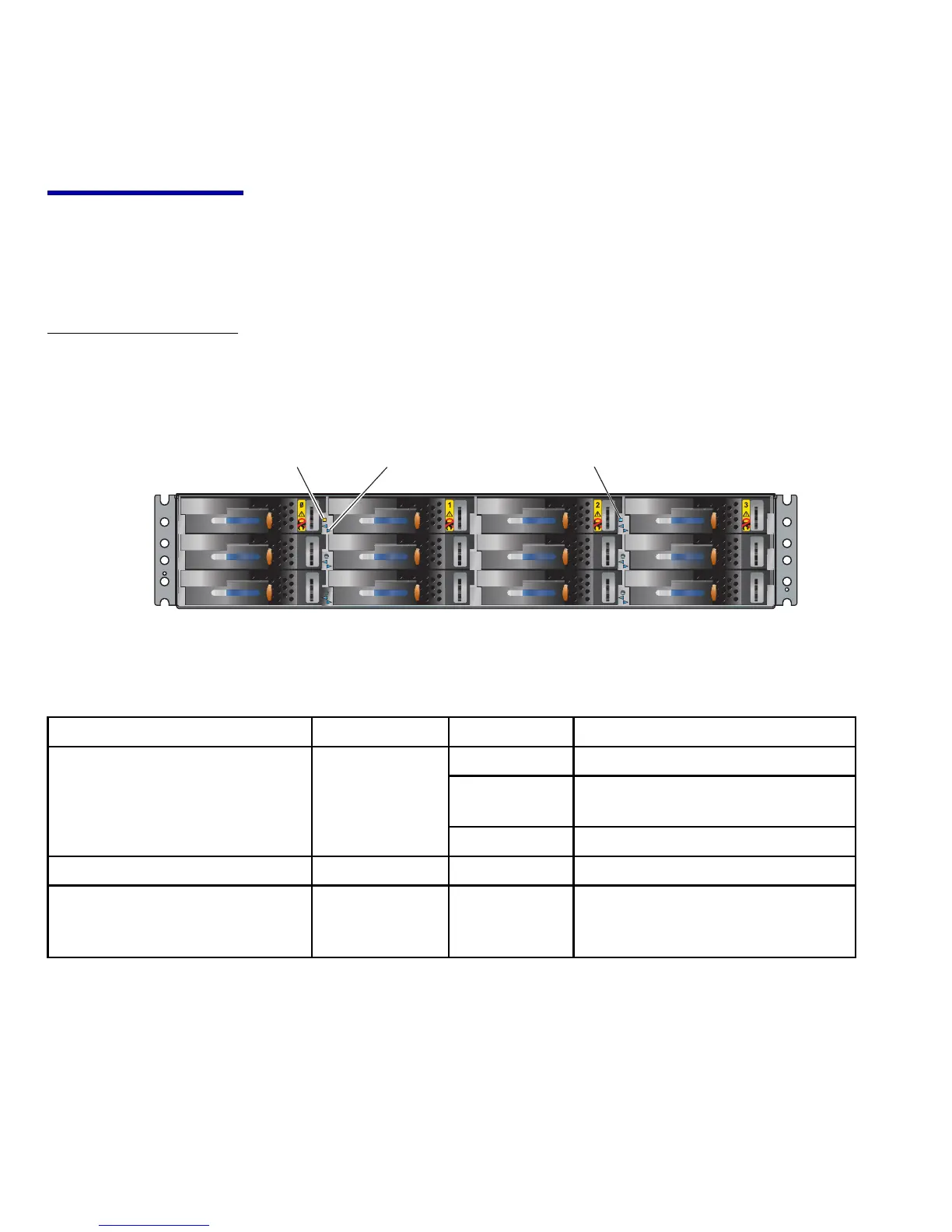

Figure 13 Status lights visible from the front of a DPE-AX
Table 1 DPE-AX status lights visible from the front
LED Quantity State Meaning
Blue The drive is online (flickers with activity)
Alternating
blue/amber
Indicates drive is faulted
Disk drive activity 1 per disk drive
Solid amber Drive is faulted
System power 1 per DPE-AX Blue AC power, normal activity
System fault 1 per DPE-AX Amber Enclosure has a faulted component. Check
disk and rear status lights; check software
event monitor
Figure 14 a
nd Table 2 display the status lights visible from the rear of
aDPE-AX:
Hardware and Operational Overview
15
