VNX5100 Block product description
EMC VNX5300 Hardware Information Guide 7
VNX5100 Block product description
This section shows an example of the front and rear views of a Block VNX5100 platform.
Note: A fully configured VNX5100 platform includes up to four 3U DAEs (a maximum of 75
3.5-inch disk drives) or up to two 2U DAEs (a maximum of 75 2.5-inch disk drives).
Front view

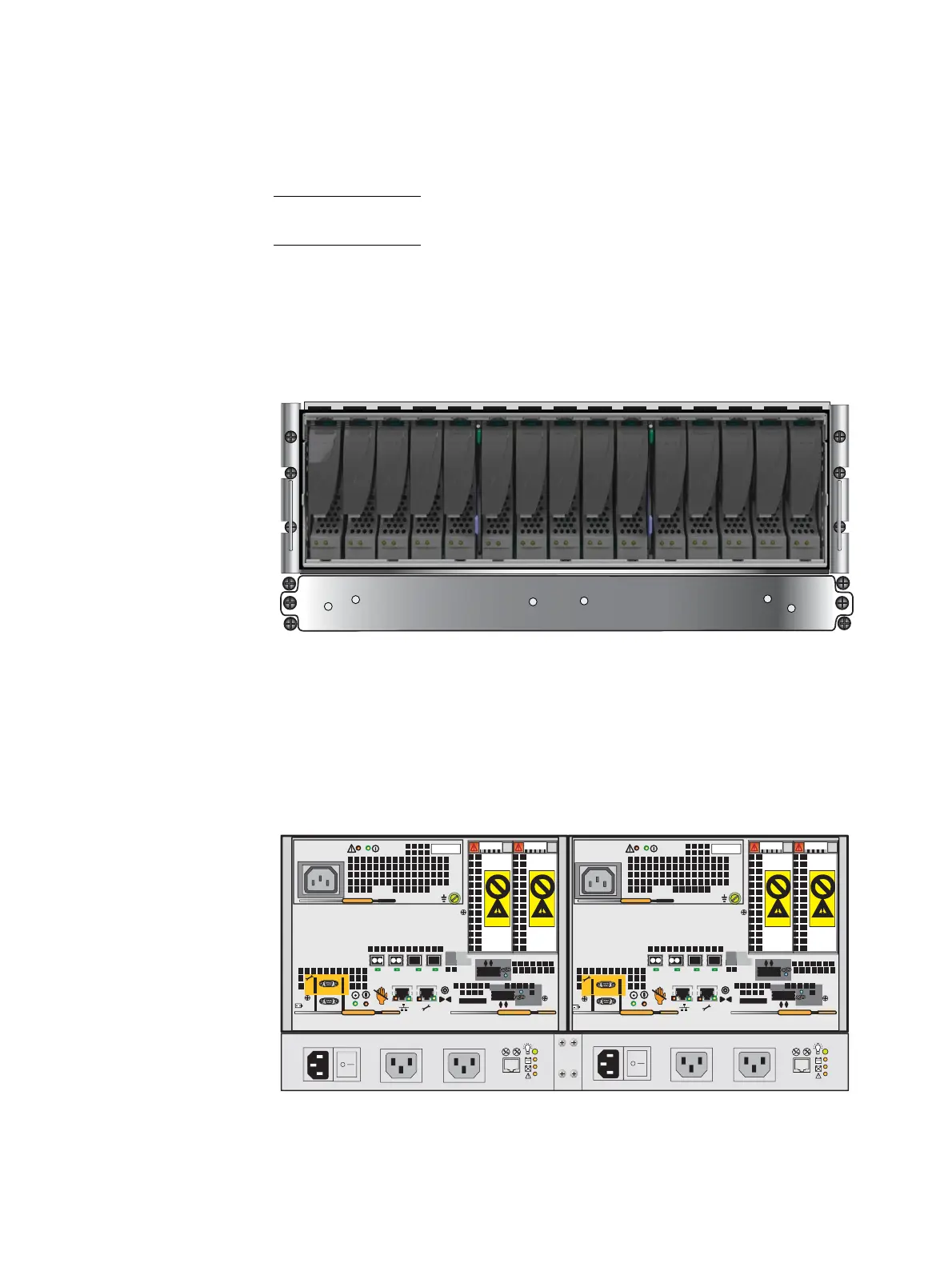

Figure 2 shows an example of the front view of a Block VNX5100 platform having a dual 1U
SPS and a 3U, 15 (3.5-inch) disk drive DPE.
Figure 2 Example of a VNX5100 platform with a 3U, 15 (3.5-inch) DPE and SPS (front view)
Rear view
Figure 3 shows an example of the rear view of a Block VNX5100 platform having a dual 1U
SPS and a DPE with two storage processors (SP A and B).
Figure 3 Example of a Block VNX5100 platform with DPE and SPS (rear view)
3U, 15 (3.5-inch) disk processor enclosure (DPE)
Standby power supply (SPS)
VNX-000291
SPS B (optional)
X4
2
3
4
5
6Gb
SAS
8Gb
bre
1
0 X4
6Gb SAS
B
X4
2
3
4
5
6Gb
SAS
8Gb
bre
1
0 X4
6Gb SAS
A
Cover
Do not remove
Cover
Do not remove
Cover
Do not remove
Cover
Do not remove
SP B SP A
SPS
A
VNX-000288
