Emec ECL6 - PROBE INSTALLATION; pH, ORP, Temperature Probe Assembly; COMMISSIONING PROCEDURE; Flow Adjustment and Indicator Check

13

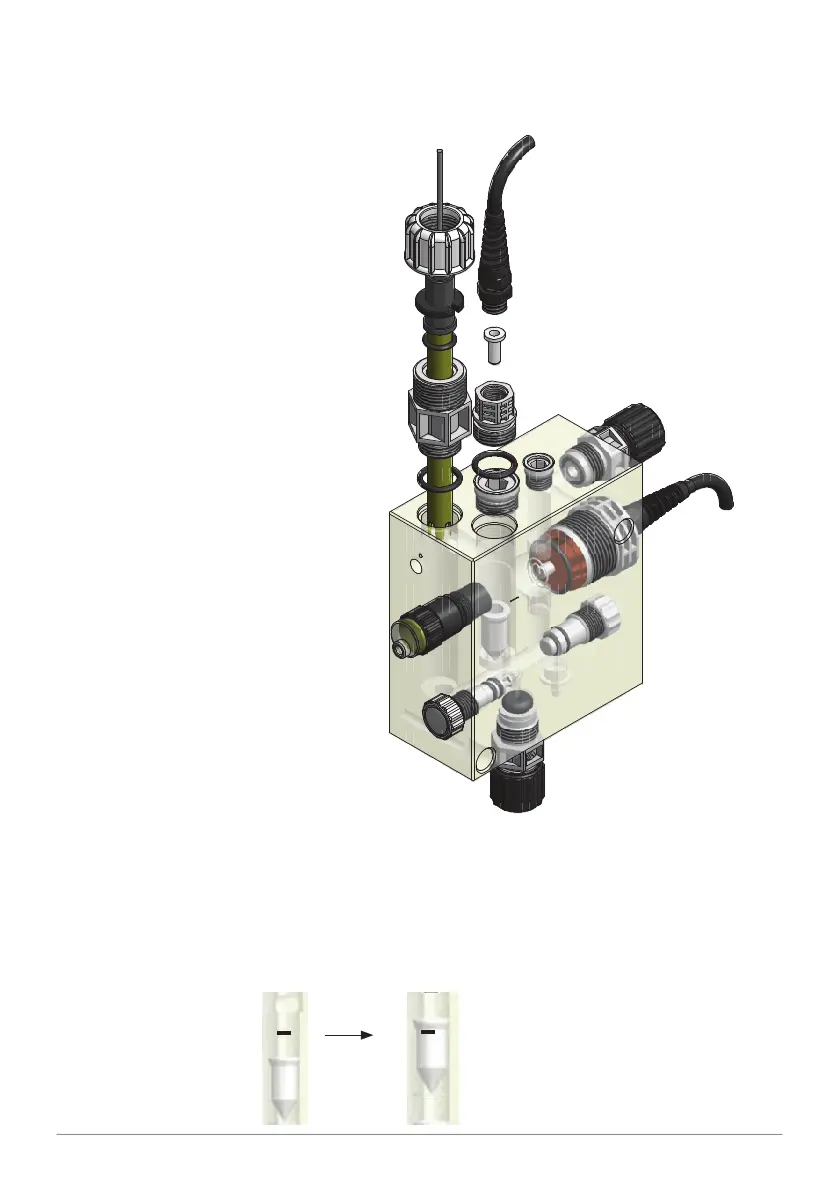

Referring to the drawing below, follow the assembly sequence.
Fig. 3. pH, ORP, temperaure porbes installation.
pH/ORP/
temperature
probes
installation
1. Open water flow into the cell turning water inlet valve.
2. Turn until the float reaches the black mark on the cell.
3. SEPR LED lights to indicate the proper flow into the cell.
Fig. 4. Correct float position
Commissioning
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Progettato da: Controllato da: Data:
Edizione
Foglio
1 / 1
ECL6 CELLA AMPEROMETRICA
Esploso_ECL6
Massimo_F Massimo_F
07/02/2017
00
Toll. Gen.
±0.05
Peso Lordo: Peso Netto:
Materiale:
pH / ORP probe
temperature probe
