Emerald Spa Lite Leader - Page 13

7. Attach power wires to the terminal block. See 240V wiring diagram inside the control enclosure
cover. Attach the wires as follows:
- White wire to terminal #2
- Black wire to terminal #3
- Red wire to terminal #4
- Green wire to terminal #5
8. Complete the conductor connections at the power supply panel.
9. Do not turn power on until instructed to do so in the "Starting and Using Your Spa" section.

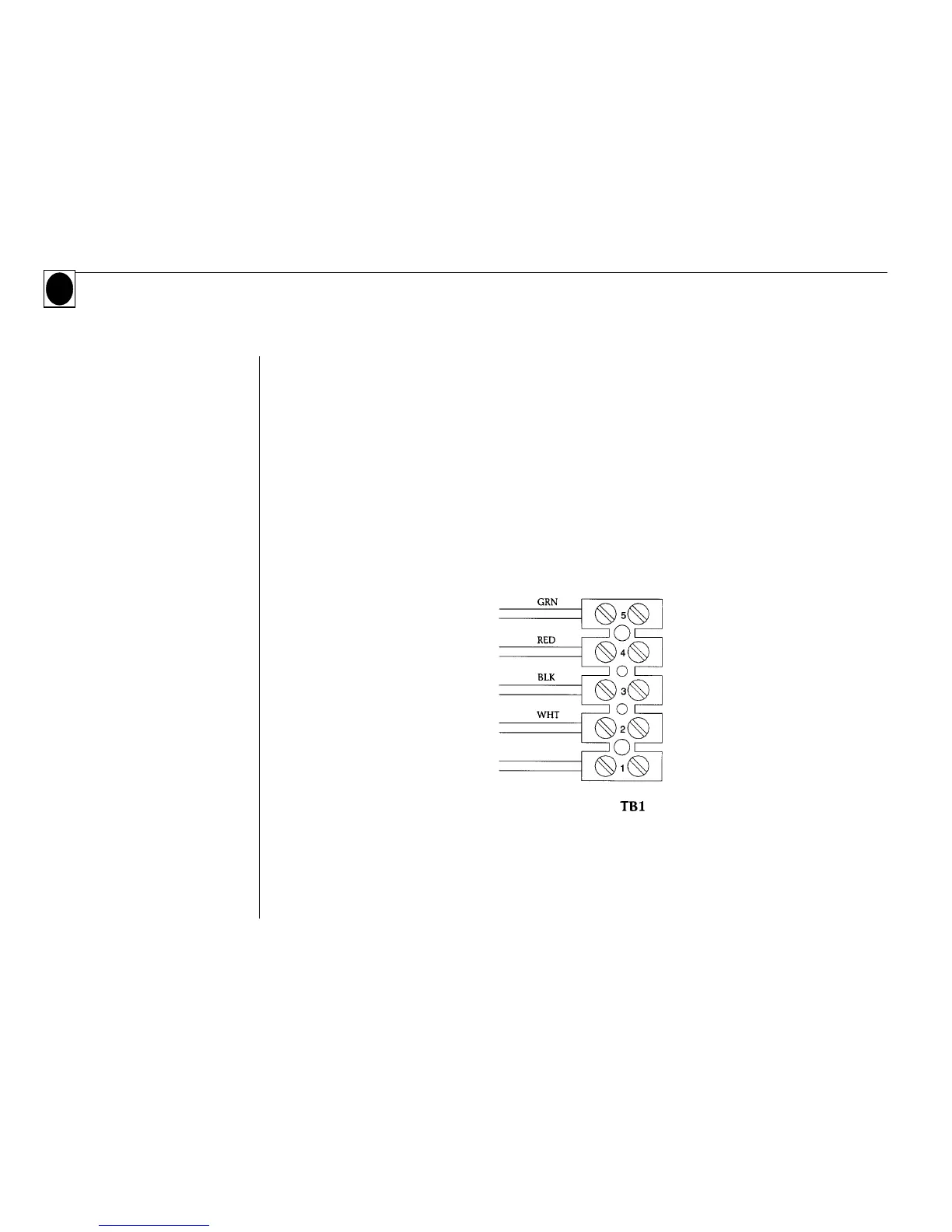

240-Volt Power Input
Note:
Consult the Wiring Diagram on Page 53 for 240 Volt to 120 Volt conversion on
the Lite Leader System Only.
