Power Pack
(continued)

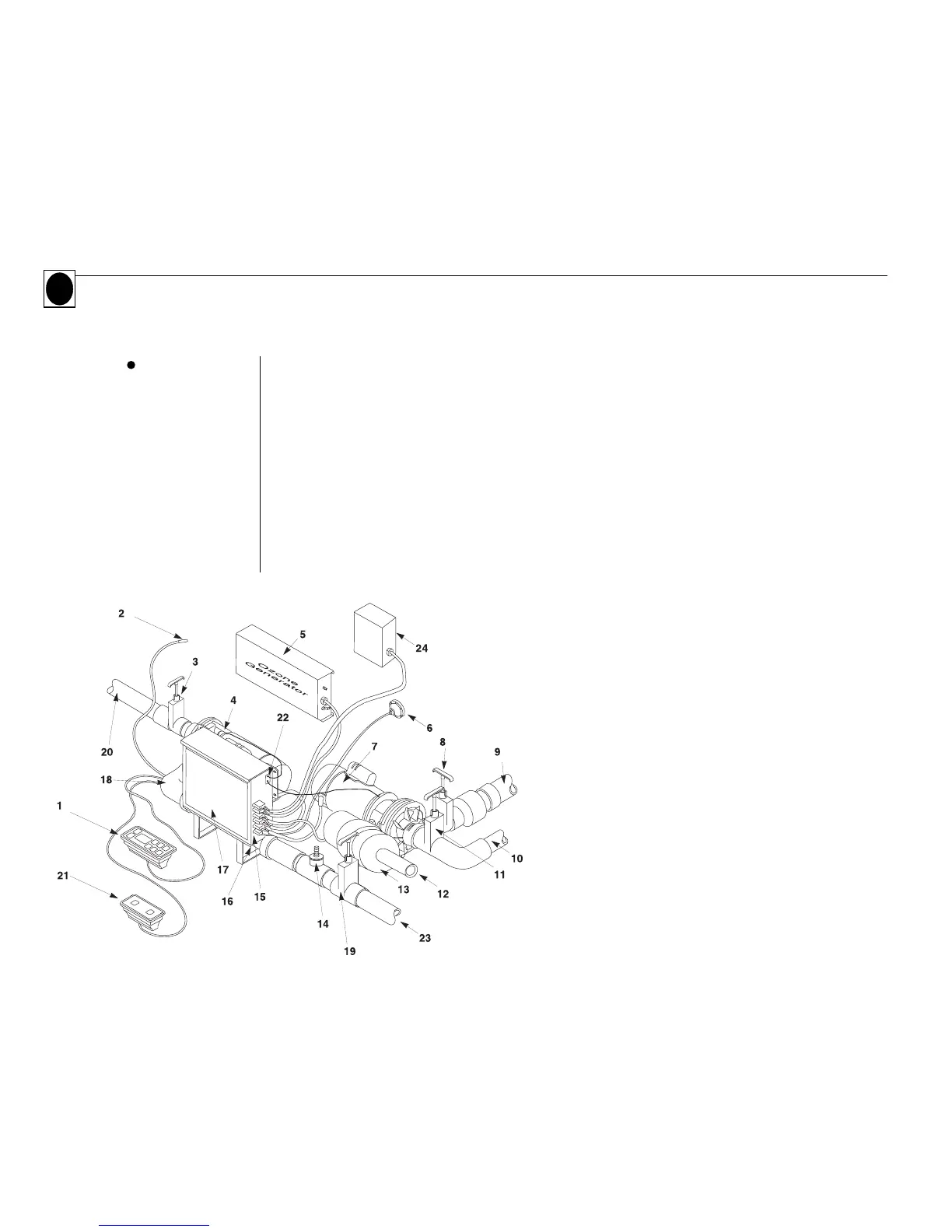

This diagram represents a generic two pump
system. It is not intended to represent any
specific model.
16
Emerald Whirlpool Spa Owner's Manual
Two-Pump System
All Emerald Elite and Cygnus Series models use a two pump system. The following is a general
description of this system. (This also is a generic model of the 1409 w/DS-2 minus booster pump)
1. control panel - (DS-4 shown) 11. water inlet T-valve - pump 2
2. temperature sensor 12. air line from blower to spa
3. water inlet T-valve - pump 1 13. air blower
4. 2-speed circulation/jets pump 14. ozone tee
5. ozone generator (optional) 15. control outputs
6. light 16. heater
7. booster pump - pump 2 17. power pack
8. water outlet T-valve - pump 2 18. connector plumbing elbow
9. water outlet line to manifold 19. water outlet T-valve - pump 1
10. water inlet line from spa-pump 2 20. water inlet line from spa - pump 1
21. Auxillory control panel - (DS-4 only)
22. grounding bar
23. water outlet line to spa
24. fiber optic source (optional)
