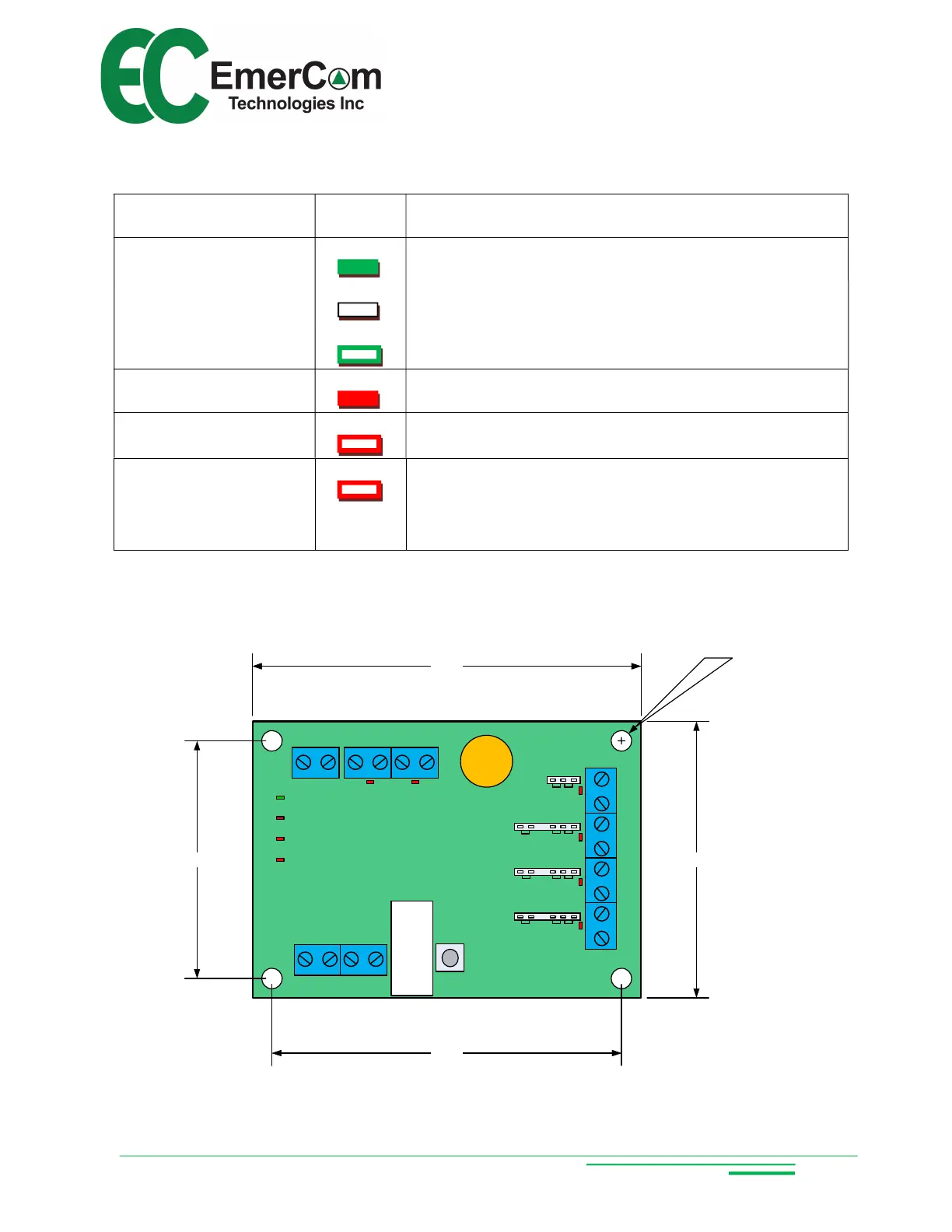

Troubleshooting
Name LED
Status
Possible Symptoms
POWER ON On
 Normal operation
Off
 Mains and battery not connected
Flashing
 Mains not connected to PWR IN
REPLACE BATTERY
+ buzzer
On
 Replace battery
NO MAINS Flashing
 Mains not connected to PWR IN
FAULT Flashing
 Battery dead; replace battery
 Battery fuse blown; replace fuse with 1A fast
 Output shorted; remove load on PWR OUT

Contact Support
1
-
844
-
363
-
7266
Dimensions
16.5 – 24VAC
16 – 28VDC
12V SLA
1200mAh
fuse
1A fast
MAINS
BYPASS
BUZ
