NOTE
• This units increased performance characteristics is the result of having two rear intakes.
• It is very important that these installation instructions are followed so your unit can operate at maximum
efficiency.
• If there is an existing sleeve and rear grille, please check whether the dimension is suitable or not, otherwise
replace them.

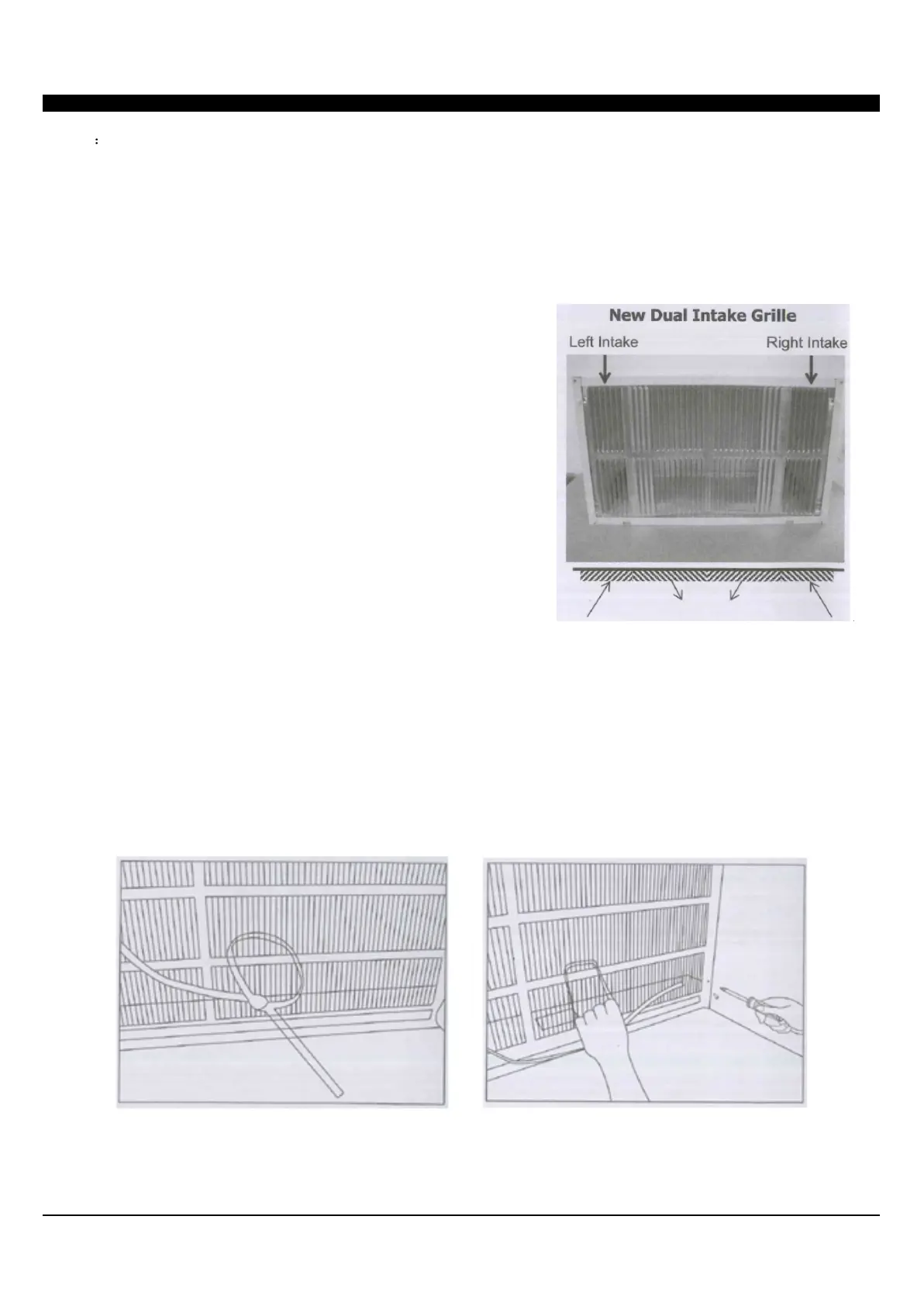

Existing Frigidaire sleeves may have older single sided intake grilles, as below pictures.
1. These grilles should be replaced with the dual intake grille type, as below pictures.
• Remove the existing grille and save the mounting screws.
• Place the grille included with your new air conditioner
towards the inside rear of the sleeve.
• Attach the new grille by aligning the four mounting holes.
• Re-insert the self-tapping screws into the nylon retainers.
2. Grille Remove
Important: Single intake grille must be removed when used with dual intake TTW unit.
Warning: When removing grille, protect from falling by securing with a leash. This can be fastened from cord or
strapping looped through the grille and secured with a knot.
Holding the grille by the leash with one hand the retaining screws can be removed and the grille can be brought
inside through the front of the sleeve.
