5
External AM Antenna
This unit utilizes an external AM loop antenna instead of a built in ferrite bar antenna.
1.) Insert the small white plug from the AM loop antenna into the AM antenna jack
on the back of the radio. The plug can only be inserted one way.

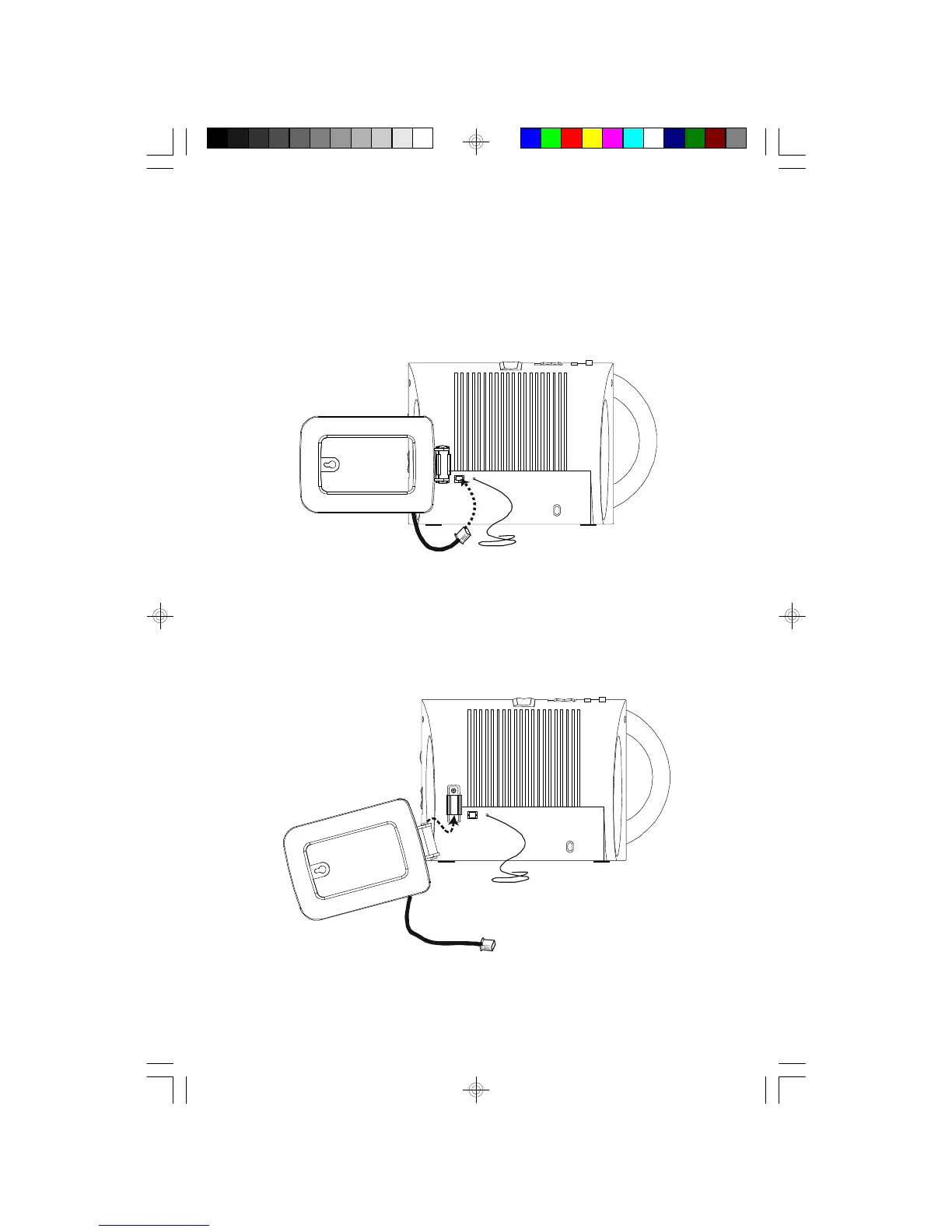

2.) Attach the AM loop antenna to the antenna bracket on the back of the radio as
shown.
CKD2328_2330_B091103.p65 11/9/2003, 14:515
