Epsilon Eb and EN Drives Reference Manual
Pulse Mode Wiring, Single Ended Inputs

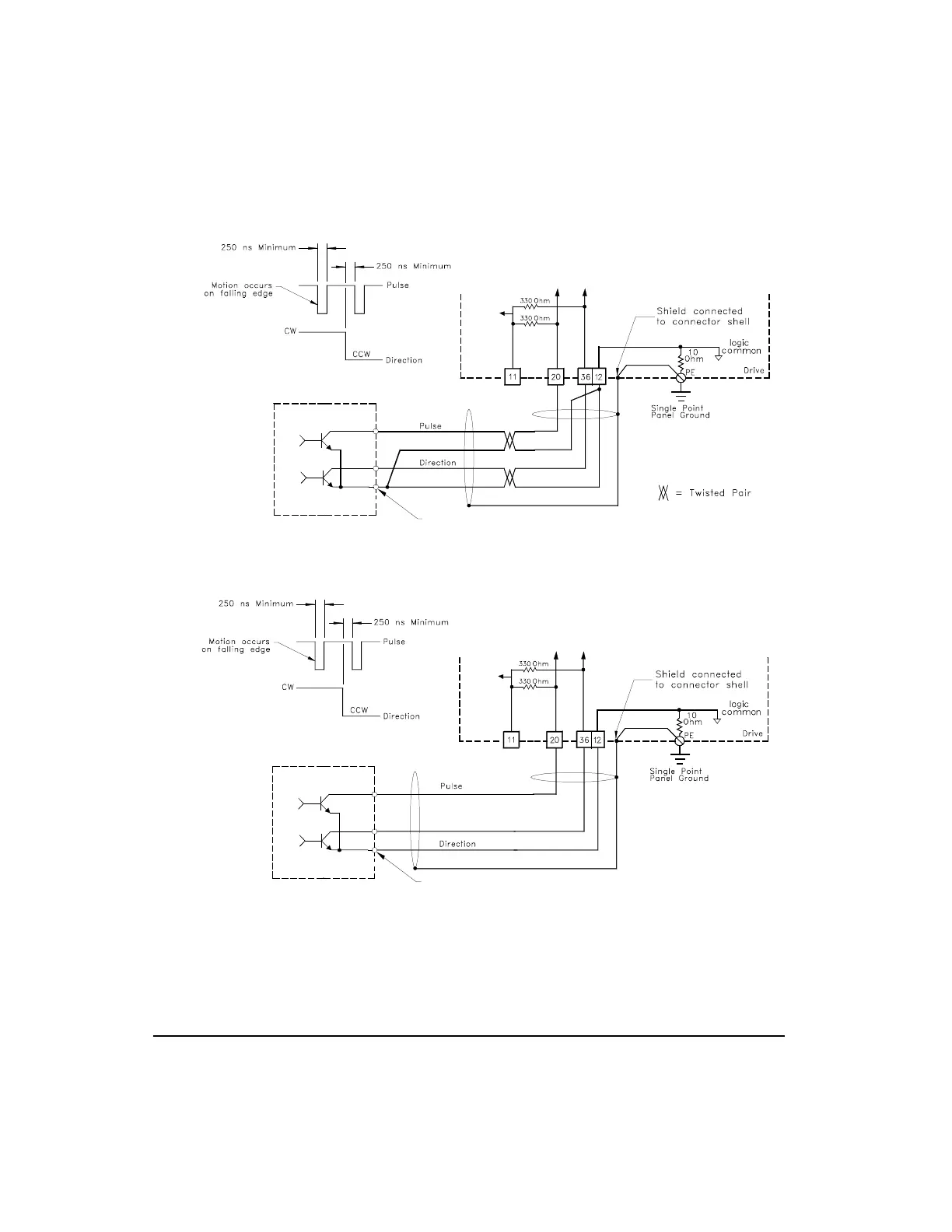

Figure 84: Pulse Mode, Single Ended Output to Single Ended Input (twisted pair cable)
Figure 85: Pulse Mode, Single Ended Output to Single Ended Input (non-twisted pair
cable)
Common isolated
from other sources
Sinking
Outputs (typ)
Pulse
A/
Direct
B
+5
Logic
Power
Common isolated
from other sources
Sinking
Outputs (typ)
Pulse
A/
Direct
B
+5
Logic
Power
