User Defined Motors

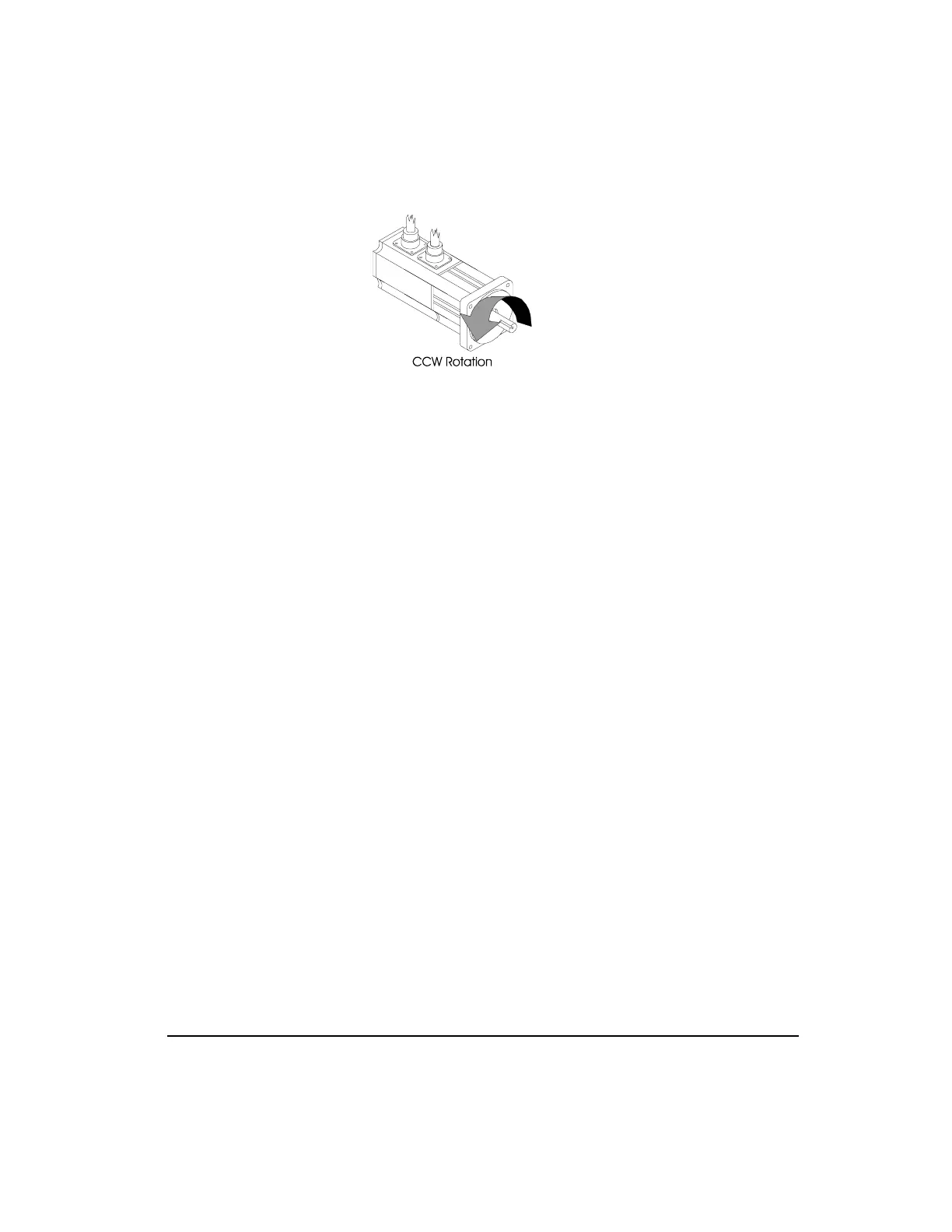

Figure 117: CCW Rotation of the Motor
5. Look at the phase-to-phase voltages VCA and VBA. There are two possibilities. If VCA
leads VBA, then assign B to S and C to T. If VBA leads VCA, then assign B to T and C
to S. These relationships are summarized in the figure below.
