Emerson ControlWave Series Quick Start Guide

Emerson FB2200 Flow Computer Quick Start Guide
D301788X012
March 2019
20

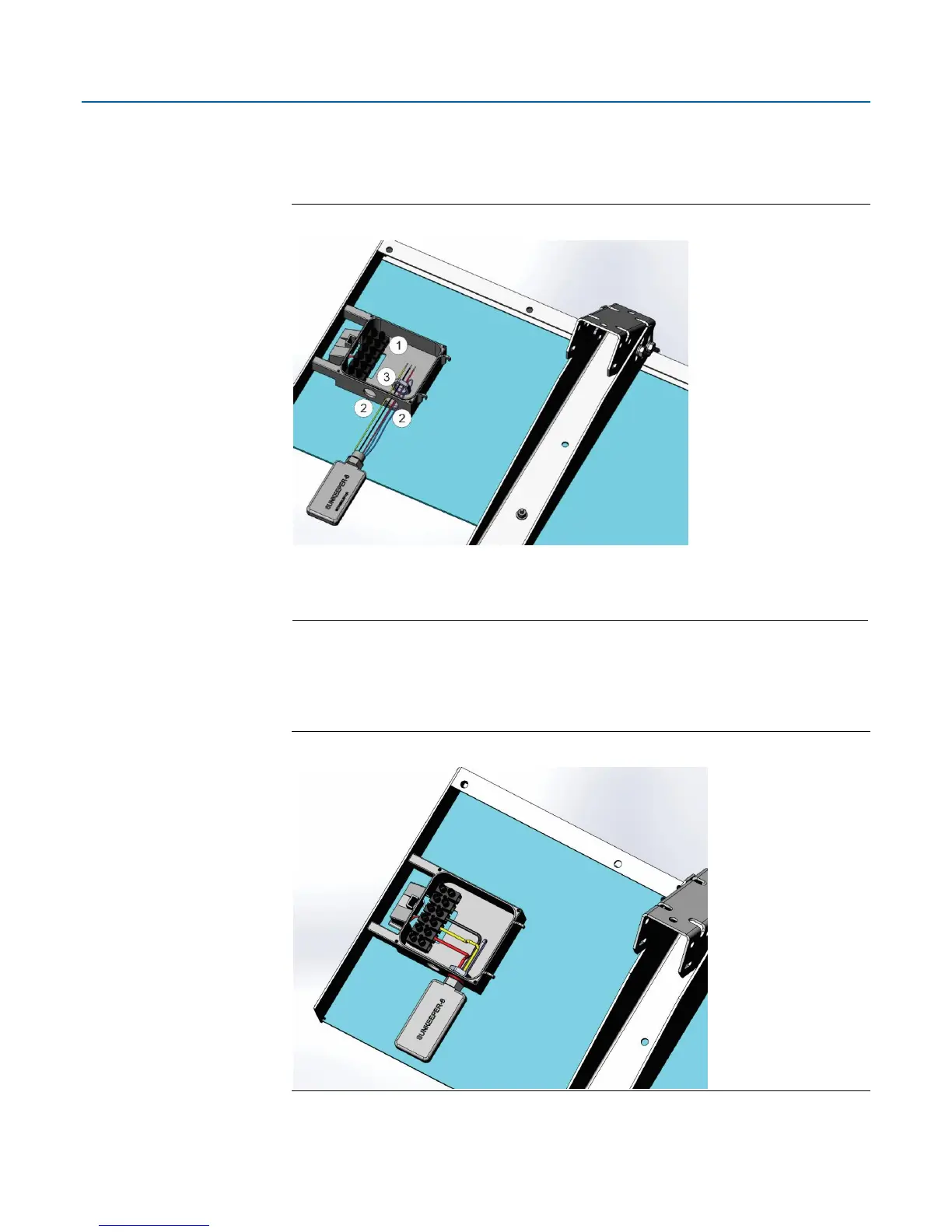

4. Remove the junction box cover. Use a utility knife to remove the knock-outs (Item 2)
in the junction box (Item 1) and feed the wires from the solar regulator into the
junction box, and through the solar regulator lock nut (Item 3).
Wiring External Solar Regulator to 30W Solar Panel
1
Junction box
2
Knock-out holes
3
Lock nut
5. Use the solar regulator lock nut to attach the solar regulator to the junction box, and a
7/32” flat head screwdriver to attach the wires from the regulator to the junction box
connectors as shown.
Wiring External Solar Regulator to 30W Solar Panel
6. Route the BATT+ and BATT- wires from the flow computer into the junction box.
