Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
Installation 15
2.4 Site Considerations
The flow computer must reside in an accessible location for configuration and service. Refer to the
dimensional drawings for information on the space required.
▪
Ensure the installation location provides easy access to the HMI module.
▪
If your unit includes the optional solar panel, ensure the installation location provides
sufficient space to mount the solar panel and adequate sunlight to charge the battery.
▪
If your unit includes the optional Mobile SCADA ensure the installation location provides line-
of-sight access to the transceiver.

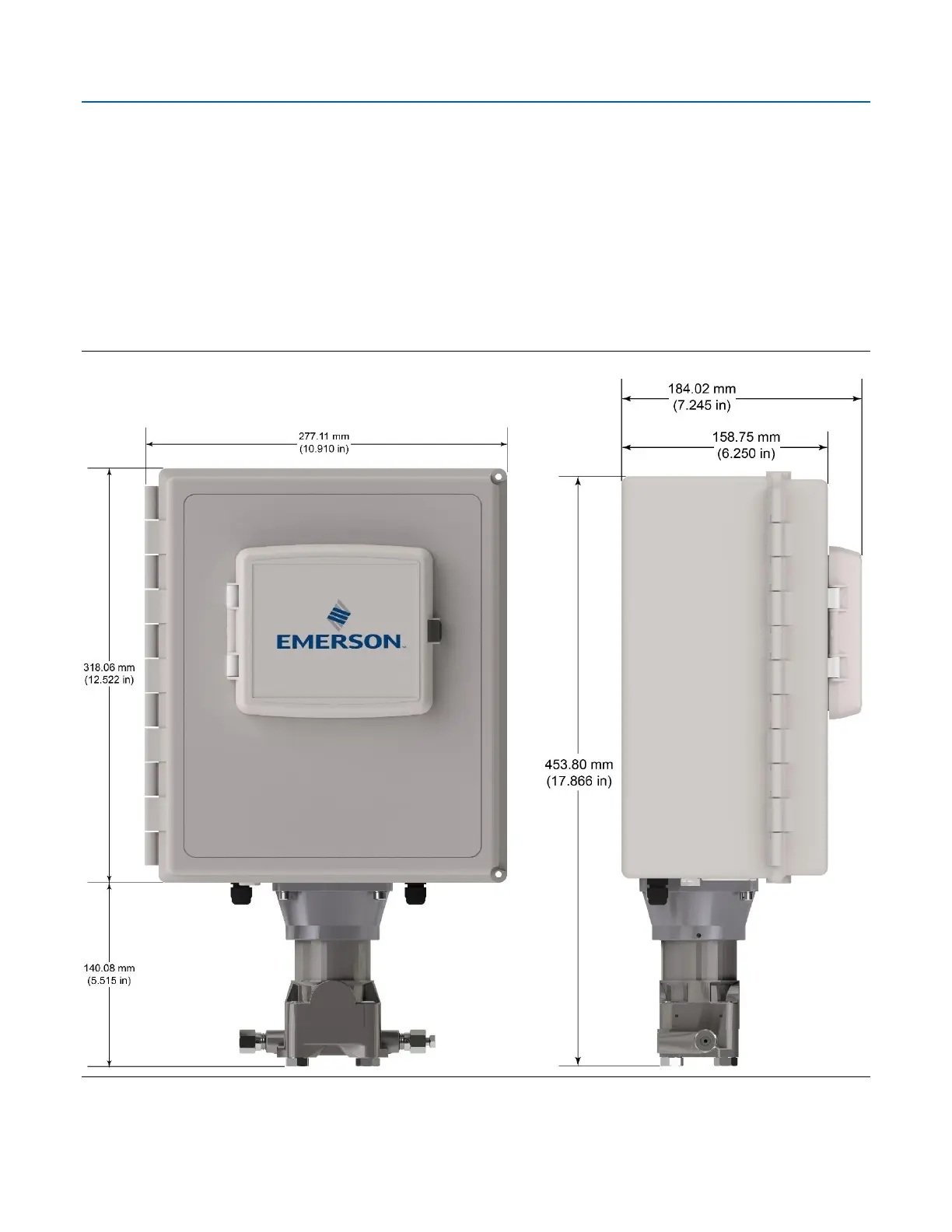

Figure 2-1. Dimensions – Multivariable Sensor Version - Fiberglass Enclosure
