Emerson Copeland 2D Series User Manual

36 D6.3.4/0715-0716/E

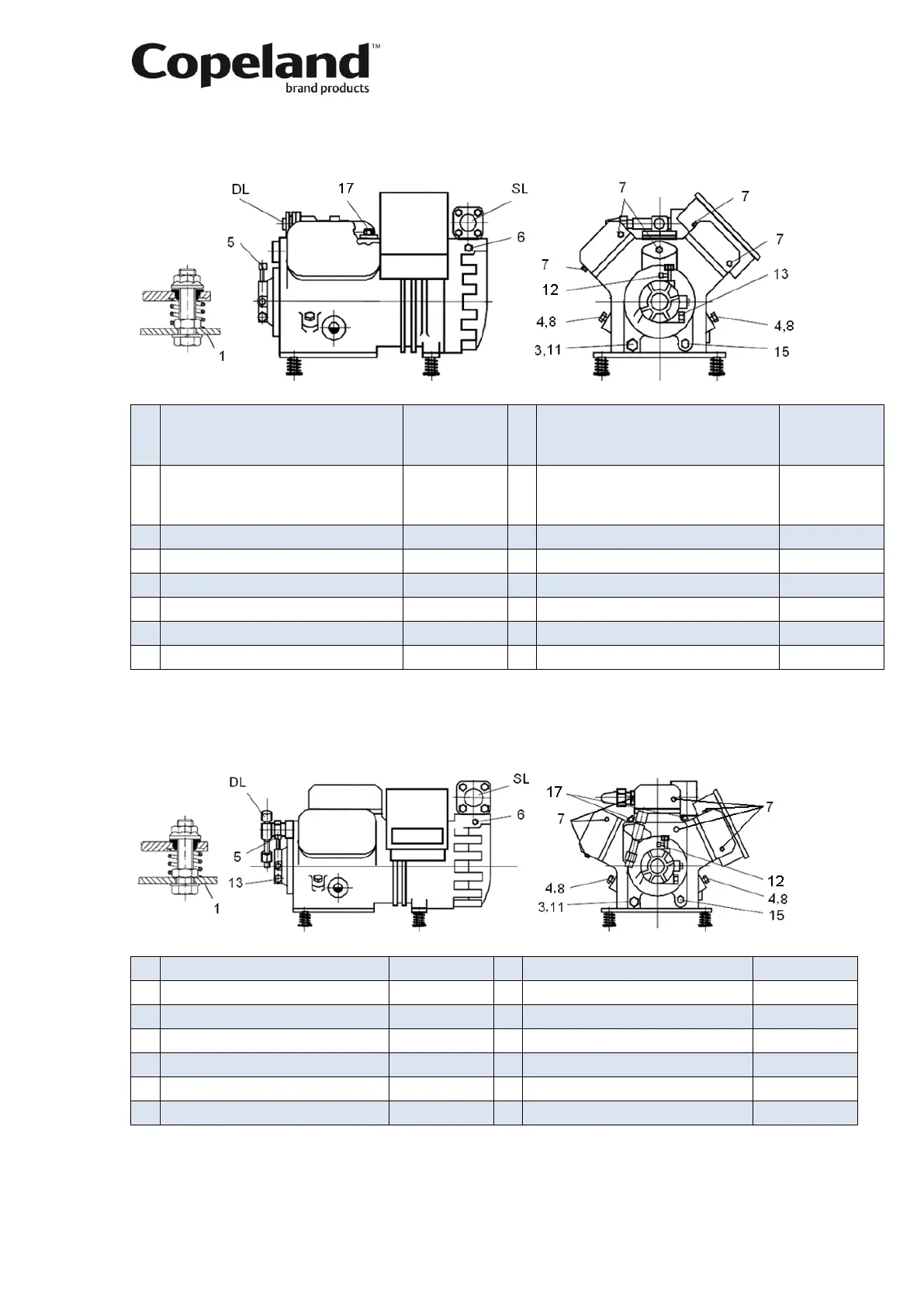

D4D
D4DA-100* D4DF-100* D4DH-150* D4DJ-200* D4DL-150* D4DT-220*
D4DA-200* D4DH-250* D4DJ-300*
SL
Suction line size (sweat)
D4DA-100*, D4DF-100*, D4DH-150*,
D4DL-150*, D4DA-200*
Ø 1 5/8"
DL
Discharge line size (sweat)
D4DA-100*, D4DF-100*, D4DH-150*,
D4DL-150*, D4DA-200*, D4DH-250*
Ø 1 1/8"
SL
Suction line size (sweat)
D4DH-250*, D4DJ-200*,
D4DT-220*, D4DJ-300*
Ø 2 1/8"
DL
Discharge line size (sweat)
D4DJ-200*, D4DT-220*, D4DJ-300*
Ø 1 3/8"
1
Base mountings
Ø 18 mm
8
Plug oil charge
1/4" - 18 NPTF
3
Magnetic plug
1" - 16 UN
11
Oil screen built-in
4
Plug oil-pressure control LP
1/4" - 18 NPTF
12
Oil pressure connection, Schraeder
7/16" - UNF
5
Connection oil pressure control HP
1/4" - 6 mm
13
Sensor connection OPS
6
Plug low pressure connection
1/8" - 27 NPTF
15
Sleeve (crankcase heater)
1/2" - 14 NPSL
7
Plug high pressure connection
1/8" - 27 NPTF
17
Plug low pressure connection
3/8" - 18 NPTF
D6D
D6DH-200* D6DL-270* D6DH-350*
SL
Suction line size (sweat)
Ø 2 1/8"
DL
Discharge line size (sweat)
Ø 1 3/8"
1
Base mountings
Ø 18 mm
8
Plug oil charge
1/4" - 18 NPTF
3
Magnetic plug
1" - 16 UN
11
Oil screen built-in
4
Plug oil-pressure control LP
1/4" - 18 NPTF
12
Oil pressure connection, Schraeder
7/16" - UNF
5
Connection oil pressure control HP
1/4" - 6 mm
13
Sensor connection OPS
6
Plug low pressure connection
1/8" - 27 NPTF
15
Sleeve (crankcase heater)
1/2" - 14 NPSL
7
Plug high pressure connection
1/8" - 27 NPTF
17
Plug low pressure connection
3/8" - 18 NPTF
