OPERATION (CONTINUED)
REVERSING THE DOOR POSITION
Caution: To avoid injury to yourself and/or properly,we recommend someone assist you during the door reversal process.
IMPORTANT NOTE: The Lock is only functional when the Doors are in the original positions. If
the door is reversed, the Lock will not function.

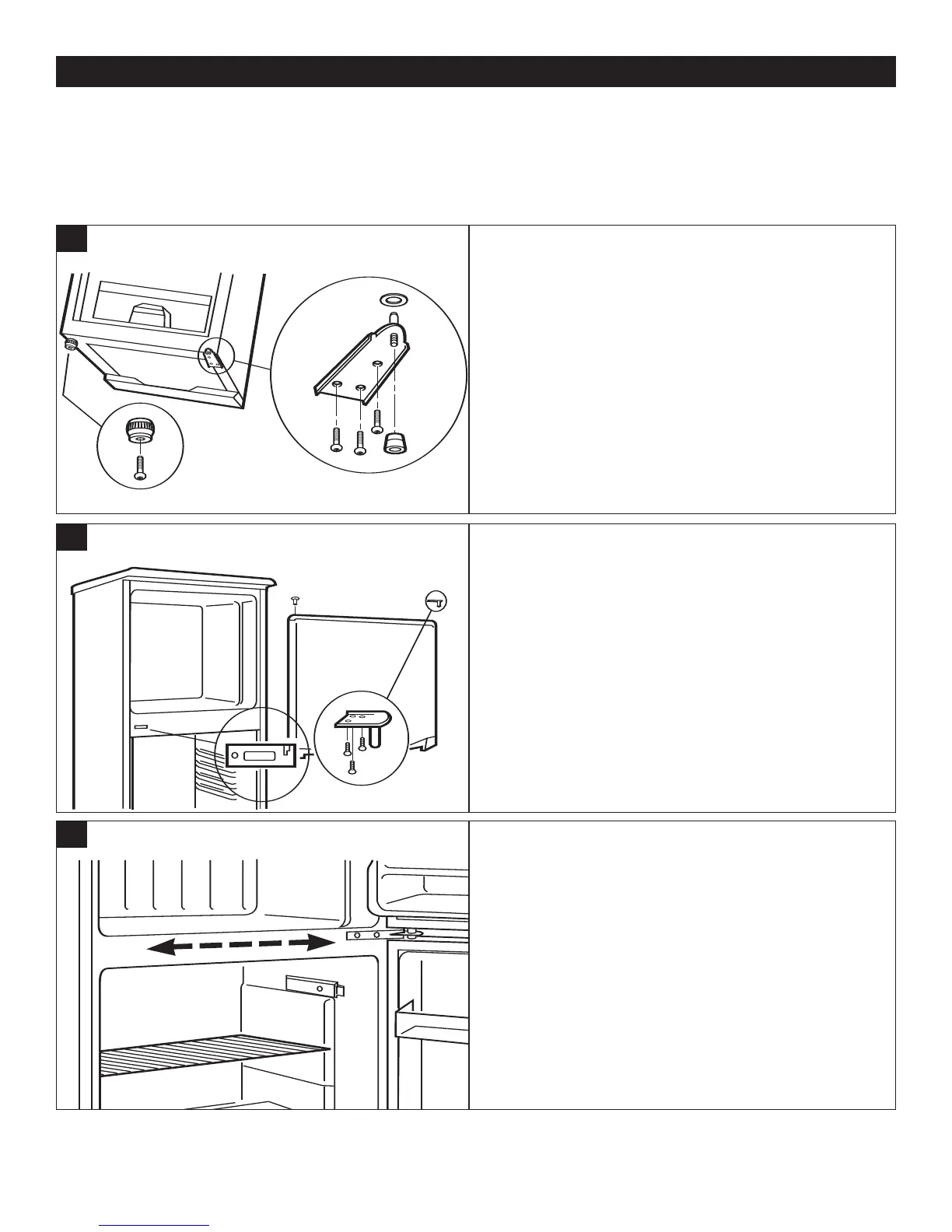

1
To access the lower hinge assembly, tilt back the
refrigerator cabinet or lay the refrigerator on its back.
Remove both legs located at the front of the cabinet:
adjustable leg on hinge side and fixed leg on opposite side.
Remove the screws holding the lower hinge assembly to the
cabinet.
Remove the main door assembly from the refrigerator
cabinet by opening the door and pulling down.
2
Remove the screws from the middle hinge assembly.Then
remove the hinge and freezer door.
Remove the top hinge pin and the lock tack.
Re-install the top hinge pin on the opposite side of the
cabinet.
Remove the door plugs and door bushing located on the top
and bottom of each door assembly.
Interchange positions of plugs and bushings on both doors
(ie.door plug right side,door bushing left side).
Re-install freezer door assembly on cabinet.
3
Re-install the middle Hinge assembly on the opposite side.
Make sure the door assembly is properly aligned on the
cabinet ,before tightening hinge screws.
Re-install the main door assembly on cabinet.
Re-install the lower hinge assembly on the opposite side.
Make sure to change bushing and screw on opposite sides
on bottom of unit.
Make sure the door assembly is properly aligned on the
cabinet, before tightening lower hinge screws.
Re-install both legs (reversed from the original positions:
adjustable leg on hinge side and fixed leg on opposite side.)
