Emerson Dixell XW30L – CL01 - Connections and Default Settings

1598029000 XW30L-XW60LS CLD IT-GB-FR-SP-TD r2.1 23.09.2015 XW30L – XW60LS 8/20
Compressor: relay SPST 20(8) A, 250Vac
Fans: relay SPST 8(3) A, 250Vac
Defrost: relay SPDT 8(3) A, 250Vac
Other output: buzzer (optional)
Serial output: TTL standard
Communication protocol: ModBUS – RTU
Data storing: on the non-volatile memory (EEPROM)
Kind of action: 1B
Pollution grade: 2
Software class: A
Rated impulsive voltage: 2500V
Over voltage Category: II
Operating temperature: 0 to 60°C (32 to 140°F)
Storage temperature: -30 to 85°C
Relative humidity: 20 to 85% (no condensing)
Measuring and regulation range:
NTC probe: -40 to 110°C (-40 to 230°F)
PTC probe: -50 to 150°C (-58 to 302°F)
Resolution: 0.1°C or 1°C or 1 °F (selectable)
Accuracy (ambient temp. 25°C): ±0.7 °C ±1 digit

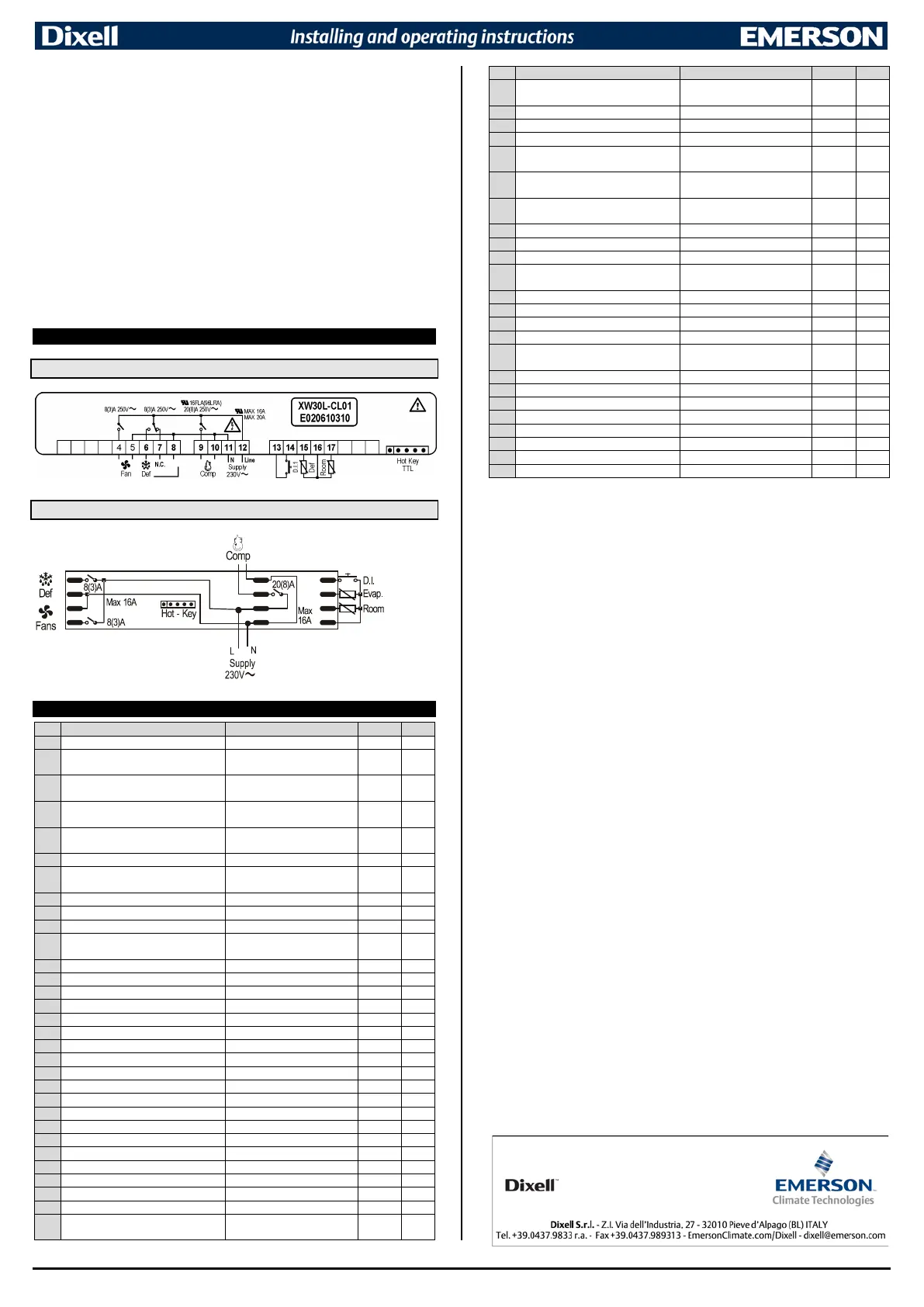

15. CONNECTIONS
15.1 XW30L - CL01
15.2 XW60LS - CL02
16. DEFAULT SETTING VALUES
Label
Name
Range
°C/°F
Level
Set
Set point
LS to US
-5.0
- - -
Hy
Differential
0.1 to 25.5°C
1 to 255°F
2.0 Pr1
LS
Minimum set point
-50°C to SET
-58°F to SET
-30.0 Pr2
US
Maximum set point
SET to 110°C
SET to 230°F
20.0 Pr2
Ot
Thermostat probe calibration
-12 to 12°C
-21 to 21°F
0 Pr2
P2P
Evaporator probe presence
n=not present; Y=pres.
y
Pr2
OE
Evaporator probe calibration
-12 to 12°C
-21 to 21°F
0 Pr2
odS
Outputs delay at start up
0 to 255 min
0
Pr2
AC
Anti-short cycle delay
0 to 50 min
1
Pr2
CCt
Continuous cycle duration
0.0 to 24h00min
0.0
Pr2
CCS
Set point for continuous cycle
-55.0 to 150.0°C
-67 to 302°F
-5.0 Pr2
COn
Compressor ON time with faulty probe
0 to 255 min
15
Pr2
COF
Compressor OFF time with faulty probe
0 to 255 min
30
Pr2
CF
Temperature measurement unit
°C; °F
°C
Pr1
rES
Resolution
in=integer; dE= dec.point
dE
Pr1
Lod
Probe displayed
P1; P2
P1
Pr2
dLy
Display temperature delay
0.0 to 20min00sec, res. 10 sec
0
Pr2
tdF
Defrost type
EL=el. heater; in= hot gas
EL
Pr2
dtE
Defrost termination temperature
-50 to 50°C
8.0
Pr2
IdF
Interval between defrost cycles
1 to 120 hours
6
Pr1
MdF
(Maximum) length for defrost
0 to 255 min
30
Pr1
dSd
Start defrost delay
0 to 99 min
0
Pr2
dFd
Displaying during defrost
rt, it, SEt, DEF
it
Pr2
dAd
MAX display delay after defrost
0 to 255 min
30
Pr2
Fdt
Draining time
0 to 120 min
0
Pr2
dPo
First defrost after start-up
n=after IdF; y=immed.
n
Pr2
dAF
Defrost delay after fast freezing
0.0 to 23h50min, res. 10 min
0
Pr2
Fnc
Fan operating mode
C-n, o-n, C-y, o-Y
c-n
Pr2
Fnd
Fan delay after defrost
0 to 255min
10
Pr2
Fno
Fan delay after compressor start
0 to 255min
1
Pr2
Fct
Differential of temperature for forced
activation of fans
0 to 50°C
10 Pr2
Label
Name
Range
°C/°F
Level
FSt
Fan stop temperature
-50 to 50°C
-58 to 122°F
2,0 Pr2
Fon
Fan on time with compressor off
0 to 15 min
0
Pr2
FoF
Fan off time with compressor off
0 to 15 min
0
Pr2
FSU
Fan operating mode
Std, Fon, FOF
FoF
Pr2
ALc
Temperat. alarms configuration
rE= related to set;
Ab = absolute
rE Pr2
ALU
MAXIMUM temperature alarm
SET to 110.0°C
SET to 230°F
10 Pr2
ALL
Minimum temperature alarm
-50.0°C to SET
-58°F to SET
10 Pr2
ALd
Temperature alarm delay
0 to 255 min
10
Pr2
dAO
Delay of temperature alarm at start up
0 to 23h50min, res. 10 min
2.0
Pr2
i1P
Digital input polarity (13-14)
oP=opening;CL=closing
cL
Pr2
i1F
Digital input 1 configuration (13-14)
EAL, bAL, PAL, dor;
dEF; Htr, AUS
EAL Pr2
did
Digital input alarm delay (13-14)
0 to 255 min
0
Pr2
Nps
Number of activation of pressure switch
0 to 15
15
Pr2
odc
Compress and fan status when open door
no; Fan; CPr; F_C
no
Pr2
rrd
Regulation restart with door open alarm
n; Y
y
Pr2
HES
Differential for Energy Saving
-30 to 30°C
-54 to 54°F
0 Pr2
LoC
Keyboard lock enabling
n; Y
n
Pr2
Adr
Serial address
1 to 247
1
Pr2
PbC
Kind of probe
PtC; ntC
ntC
Pr2
dP1
Room probe display
--
-
Pr2
dP2
Evaporator probe display
--
-
Pr2
rSE
Real set
actual set
-
Pr2
rEL
Software release
--
1.8
Pr2
Ptb
Map code
--
-
Pr2
TTL
