Emerson DXP-FF User Manual

www.topworx.com
13
TM

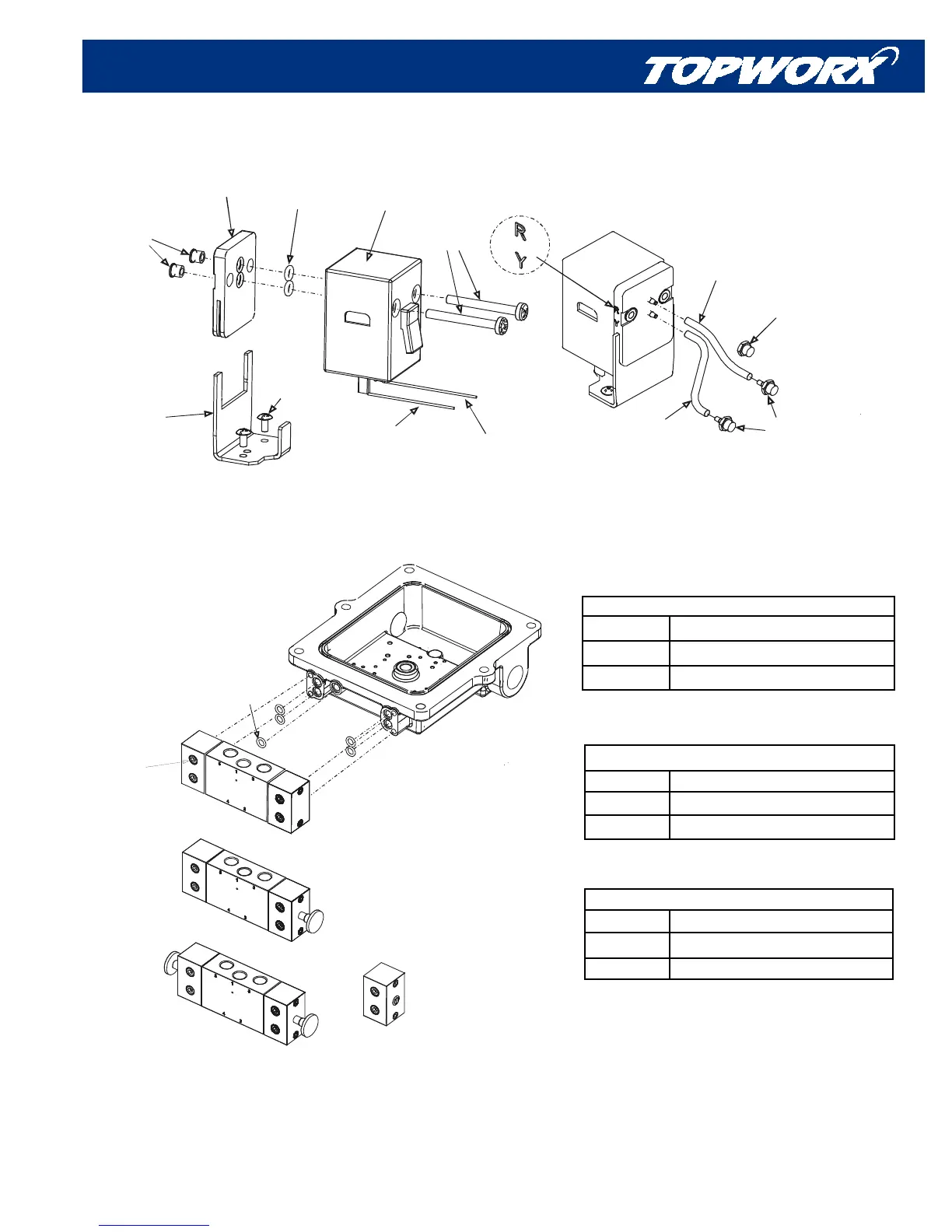

Component Replacement
RED Urethane
Tubing (Supply)
YELLOW
Urethane
Tubing
(Work)
10-32 Nylon Plug
Used in Fail Closed
Applications
10-32 Nylon
Barb Fitting
Piezoelectric
Pilot Device
O-rings,
Buna
Manifold
Inserts
Bracket
4-40x.25 (x2)
Orange
to V+
Black
to V -
M4x35
Flame arrestor O-ring
(x5)
Spool Valve with No Manual Override
Spool Valve with Single Palm Actuator Override
Spool Valve with Dual Palm Actuator Override
Push-button Style Override
M5 x 25mm SHCS (x4)
(4mm hex wrench)
Fail Closed Spool Valve Replacement Assemblies
AV-BFCVA20 Std Alum Spool Valve Assy w/Buna seals
AV-BFCVS20 Std 304SS Spool Valve Assy w/Buna seals
AV-BFCV620 Std 316SS Spool Valve Assy w/Buna seals
Fail Last Position Spool Valve Replacement Assemblies
AV-BFLPVA20 Std Alum Spool Valve Assy w/Buna seals
AV-BFLPVS20 Std 304SS Spool Valve Assy w/Buna seals
AV-BFLPV620 Std 316SS Spool Valve Assy w/Buna seals
Block-Center Spool Valve Replacement Assemblies
AV-BBCVA20 Std Alum Spool Valve Assy w/Buna seals
AV-BBCVS20 Std 304SS Spool Valve Assy w/Buna seals
AV-BBCV620 Std 316SS Spool Valve Assy w/Buna seals
