Emerson DXP-FF User Manual

D-Series with FF Option Installation, Operation & Maintenance
502.969.8000
14

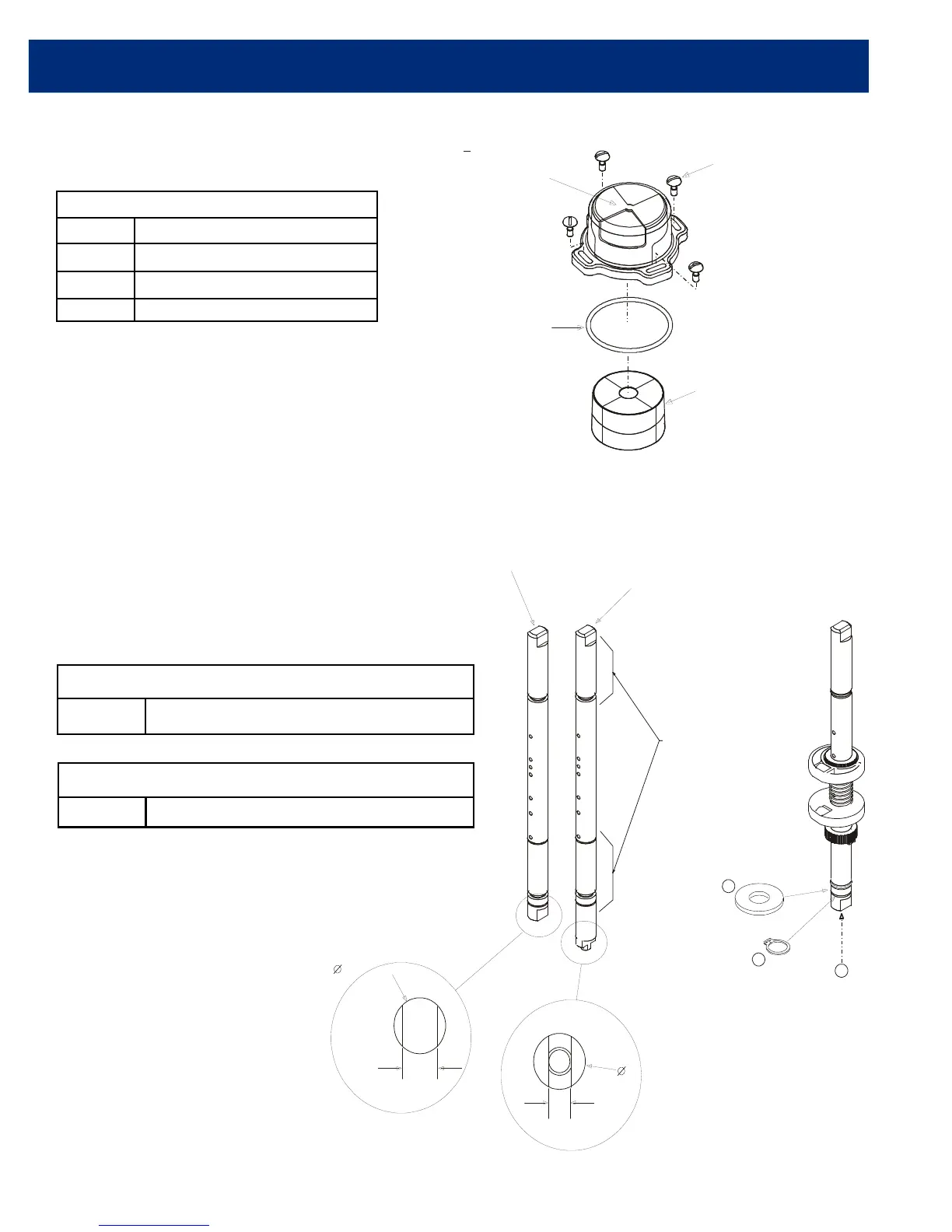

Indicator / Dome Replacement
Color-coded Indicator is
available in several
coordinating rotations and
forms for various valve
types, such as 90deg, 180deg
and Thru-divert applications.
O-ring
Available in Buna-N,
Silicone, EPDM, Viton
10-32 Captive screws,
Stainless (x4)
Indicator Dome,
5 adjustable
Polycarbonate
with keyed mask.
Several rotation and
form options.
+
O
Shaft Replacement
NAMUR Shaft,
Stainless
Standard 0.25” DD Shaft,
Stainless
Lubrication
Areas
1
2
3
4mm
0.375 [9.53mm]
0.375 [9.53mm]
0.25 in
For more shaft dimension
details, see Page 1.
Indicator / Dome Replacement Kits
AV-GB002 90º, Green/Open, Red/Closed, Buna O-Ring
AV-YB002 90º, Yellow/Open, Black/Closed, Buna O-Ring
AV-TB002 90º, Green/Thru, Red/Divert, Buna O-Ring
AV-4B002 90º, Green/Open, Red/Closed, Buna O-Ring
NAMUR Shaft Replacement Kits
SCM’s with (2) Reed Switches
AV-NSB202
NAMUR Shaft w/Buna-N O-Rings & (2) Cam Assembly
with Installation Hardware
Standard Shaft Replacement Kits
SCM’s with (2) Reed Switches
AV-SSB202
Standard Shaft w/Buna-N O-Rings & (2) Cam Assembly
with Installation Hardware
