Emerson EWD2004 - Page 50

M1
M2
M3
N1
N2
N3
O1
O2
O3
P1
P2
P3
Q1
Q2
Q3
R1
R2
R3
M4
N4
O4 P4 Q4 R4
VIDEO SIGNAL
DATA(AUDIO) SIGNAL
DVD AUDIO SIGNAL
1-10-29
1-10-30
H9600SCD3

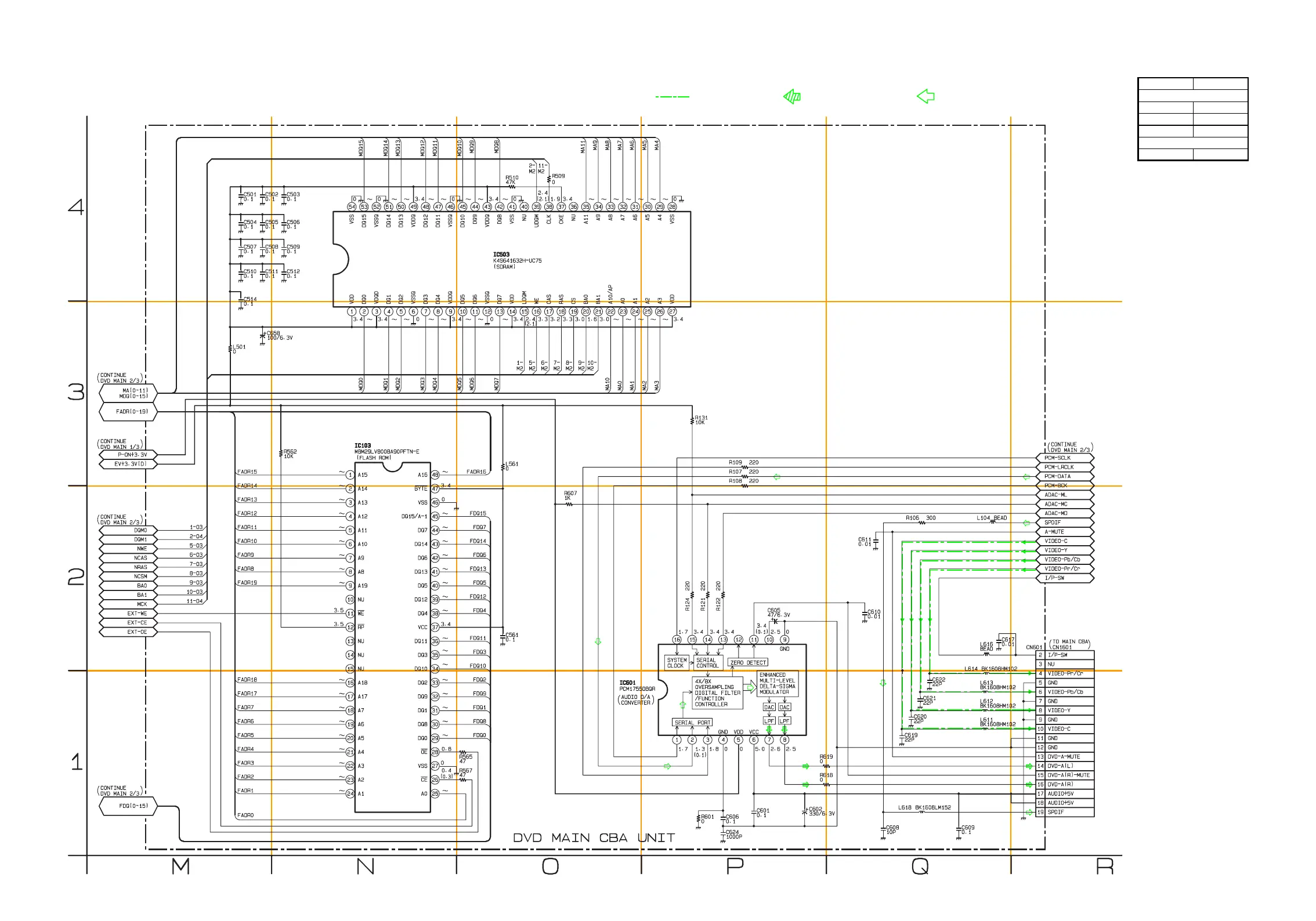

DVD Main 3/3 Schematic Diagram < DVD Section > ( DVC860E )
DVD MAIN 3/3
Ref No. Position
IC103 N-3
IC503 O-4
IC601 P-1
CN601 R-1
CONNECTOR
ICS
