Emerson EWD7002 Service Manual
5
of 1
of 1 rating
45 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
A1
A2
A3
A4
A5
B1
B2
B3
B4
B5
C1
C2
C3
C4
C5
D1
D2
D3
D4
D5
E1
E2
E3
E4
E5
F1
F2
F3
F4
F5
G1
G2
G3
G4
G5
TRACKING SER
VO SIGNAL
FOCUS SERV
O SIGNAL
DA
T
A(VIDEO+A
UDIO)
1-8-3
1-8-4
1-8-5
E5662SCD1

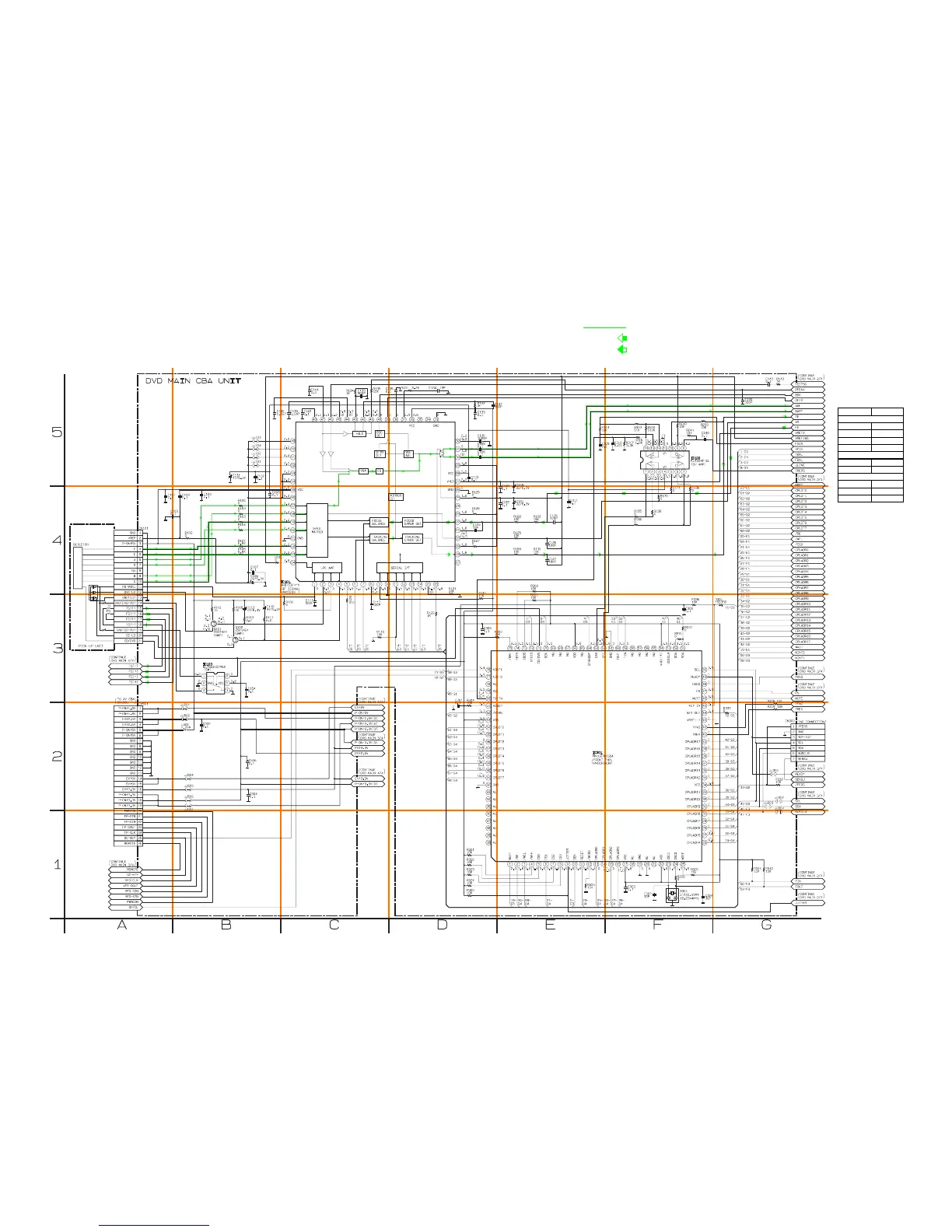

DVD Main 1/4 Schematic Diagram
M
A
IN 1
/4
Ref
No.
Posit
io
n
IC101
C-4
IC102
F-5
IC103
B-3
IC301
E-2
Q101
B-3
Q102
B-3
CN101
A-4
CN302
G-2
CN501
A-2
CONNECTO
RS
ICS
TR
ANSI
ST
ORS
23
25
Table of Contents
Table of Contents
2
Specifications
4
Laser Beam Safety Precautions
5
Important Safety Precautions
6
Safety Check after Servicing
7
Standard Notes for Servicing
8
Front Panel
11
Operating Controls and Functions
11
Rear View
12
Displays During Operation
12
Loading the Batteries
12
Cabinet Disassembly Instructions
13
System Control Block Diagram
16
Block Diagrams
16
Video Block Diagram
19
Audio Block Diagram
20
Power Supply Block Diagram
21
Schematic Diagrams / Cba's and Test Points
22
Av Cba Bottom View
31
Waveforms
32
Wiring Diagram
33
Rom Renewal Mode
34
System Control Timing Charts
35
IC Pin Function Descriptions
36
Lead Identifications
37
Exploded Views
38
Mechanical Parts List
40
Electrical Parts List
41
