1-9-2
E5630WF
1-9-1
NOTE:
Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)

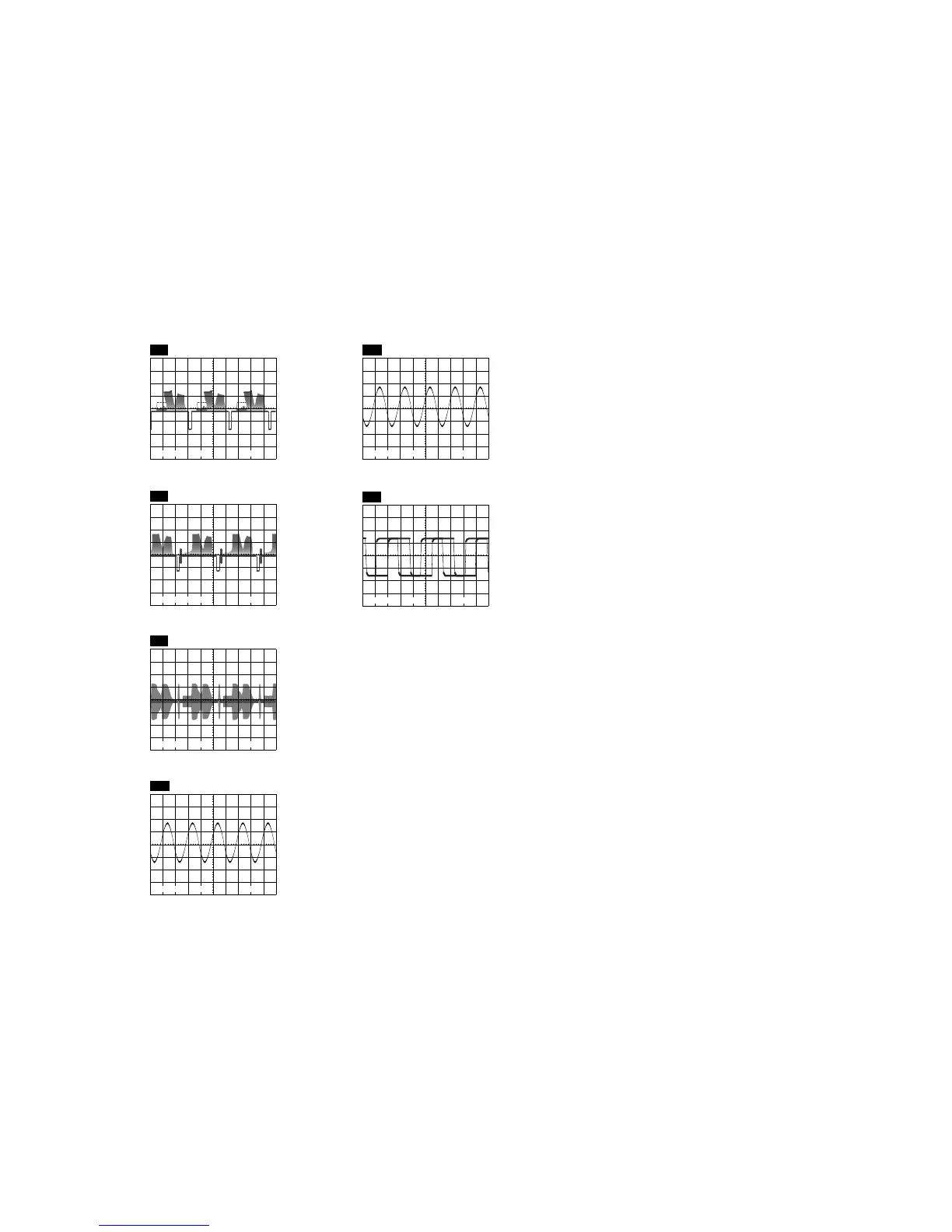

WAVEFORMS
WF6
SPDIF
Pin 18 of CN1601
1V
0.2usec
WF1
Pin 5 of CN1601
WF3
Pin 9 of CN1601
WF4
AUDIO-L
Pin 13 of CN1601
1V
0.5msec
WF5
AUDIO-R
Pin 15 of CN1601
1V
0.5msec
WF2
Pin 7 of CN1601
VIDEO-Y
0.2V
20usec
VIDEO-CVBS
0.5V
20usec
VIDEO-C
0.2V
20usec
31
33
Table of Contents
Table of Contents
2
Specifications
4
Laser Beam Safety Precautions
5
Important Safety Precautions
6
Safety Check after Servicing
7
Standard Notes for Servicing
8
Front Panel
11
Operating Controls and Functions
11
Rear View
12
Displays During Operation
12
Loading the Batteries
12
Cabinet Disassembly Instructions
13
System Control Block Diagram
16
Block Diagrams
16
Video Block Diagram
19
Audio Block Diagram
20
Power Supply Block Diagram
21
Schematic Diagrams / Cba's and Test Points
22
Av Cba Bottom View
31
Waveforms
32
Wiring Diagram
33
Rom Renewal Mode
34
System Control Timing Charts
35
IC Pin Function Descriptions
36
Lead Identifications
37
Exploded Views
38
Mechanical Parts List
40
Electrical Parts List
41
