Emerson Fisher 656 - Casing-Mounted Adjustable down Travel Stop

Instruction Manual
D100304X012
656 Actuator
June 2017
11

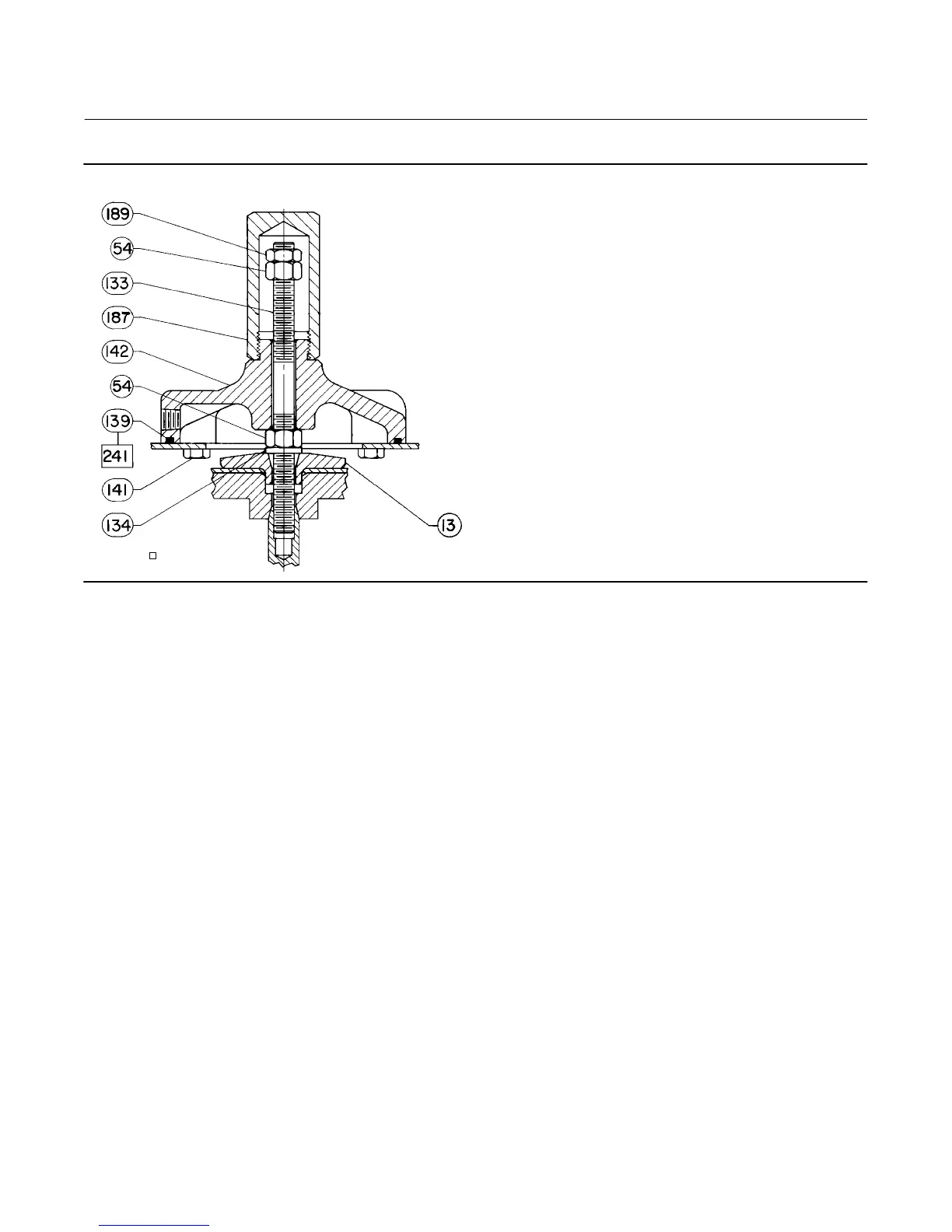

Figure 7. Casing‐Mounted Adjustable Down Travel Stop for Size 30 and 40 Actuators (Style 2)
APPLY LUB
BV8054-D
Casing‐Mounted Adjustable
Down Travel Stop (figure 7)
Key Description
54 Stop Nut
133 Travel Stop Stem
134 Washer
Key Description
139* O‐Ring, nitrile
Sizes 30, 34, & 40
Sizes 45, 46, 50, & 60
Sizes 70 & 87
141 Cap Screw
142 Body
187 Travel Stop Cap
189 Jam Nut
241 Lubricant, Lithium Grease or equivalent
(not furnished with travel stop)
*Recommended spare parts
