Instruction Manual
D100399X012
EW Valve
July 2017
23

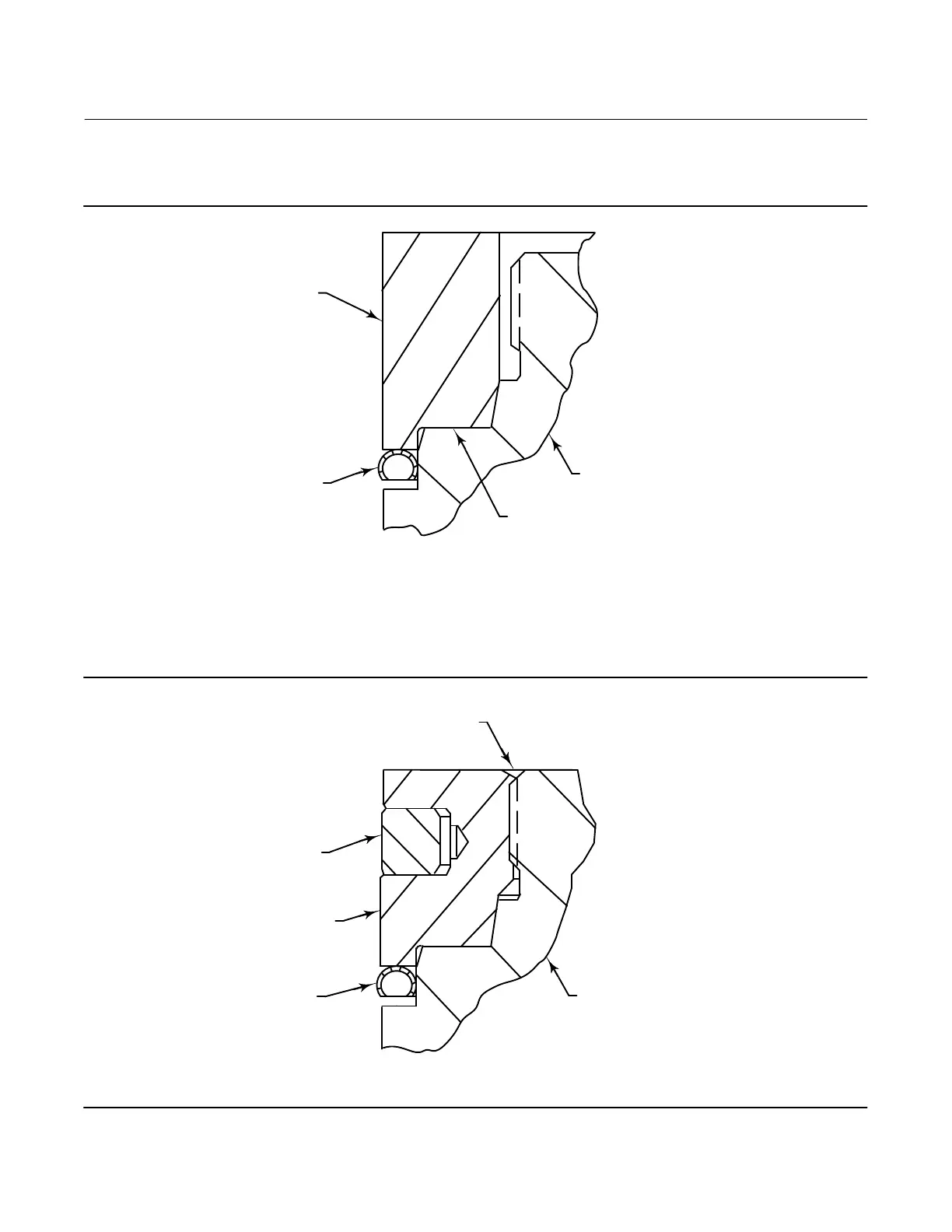

Figure 11. Installing the C‐seal Plug Seal Using the Installation Tool
NOTE:
PRESS INSTALLATION TOOL OVER VALVE PLUG UNTIL THE TOOL CONTACTS THE
HORIZONTAL REFERENCE SURFACE OF THE VALVE PLUG.
C‐SEAL
METAL
PLUG
SEAL
INSTALLATION
TOOL
A6778
VALVE
PLUG
HORIZONTAL
REFERENCE
SURFACE
FLOW DOWN
Figure 12. Stake the Threads of the C‐seal Retainer
C‐SEAL
METAL
PLUG
SEAL
VALVE
PLUG
FLOW DOWN
PISTON
RING
RETAINER
DEFORM THREAD TO
STAKE C‐SEAL RETAINER
A6779
