Instruction Manual
D103175X012
GX Valve and Actuator
April 2011
28

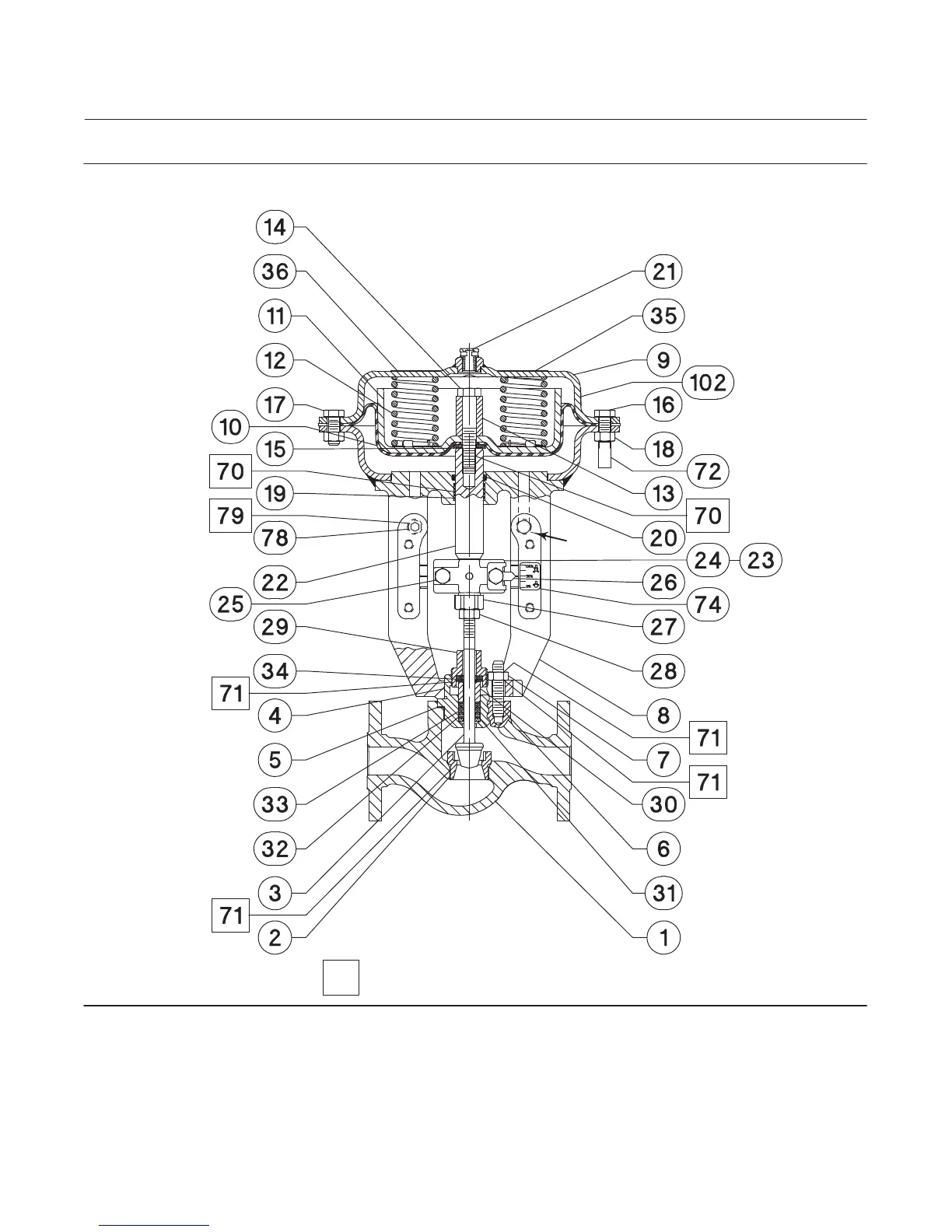

Figure 18. Fisher GX Control Valve and Actuator System Assembly, Air‐to‐Open (Spring‐to‐Close) (DN25 (NPS 1) with
Unbalanced Contoured Plug)
GE02171‐G
AIR SUPPLY
CONNECTION
APPLY LUBRICANT
