Instruction Manual
D103553X012
Large ET and ED Valves
July 2017
25

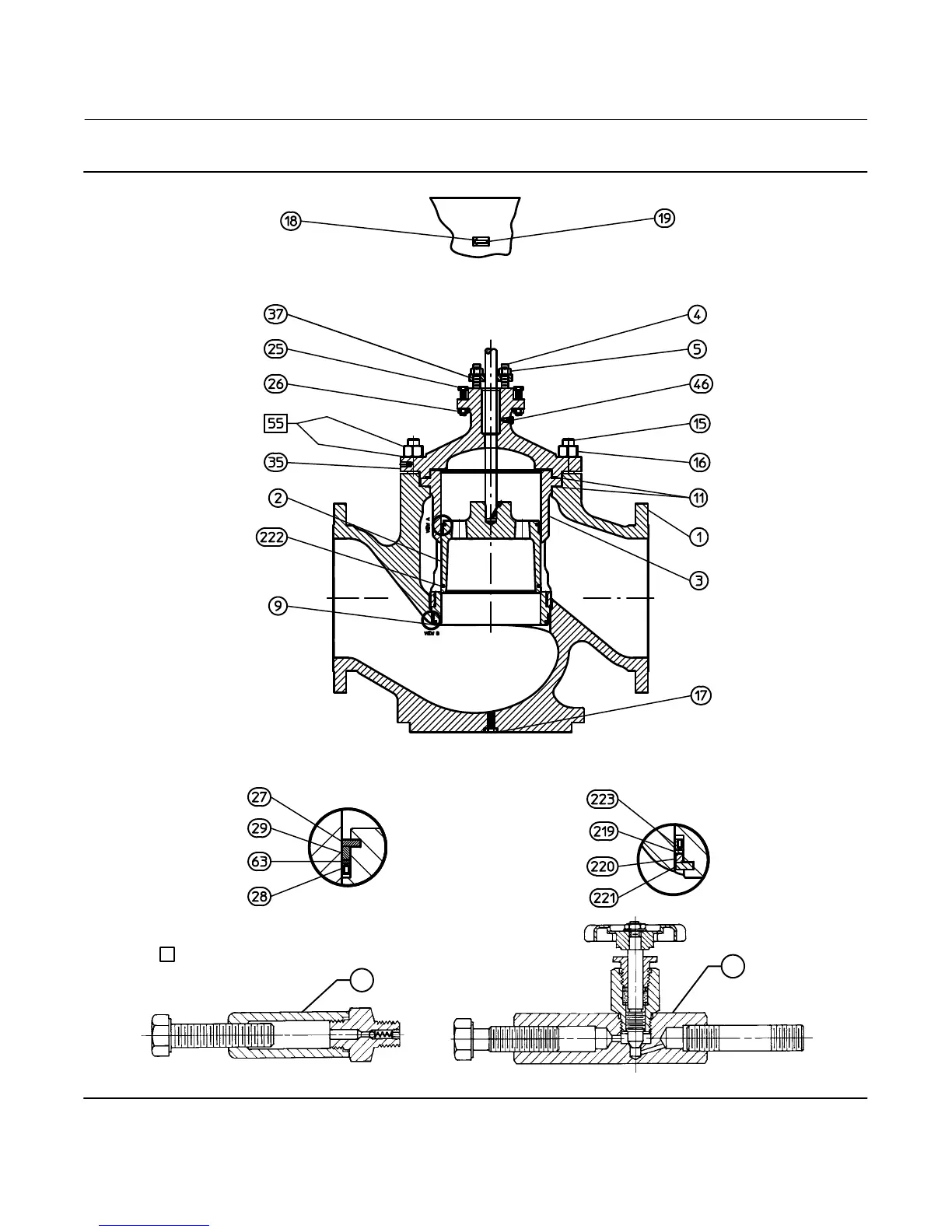

Figure 7. Typical Fisher ET/EWT Valve Equipped with HTS1 Seals
31
31
OPTIONAL LUBRICATOR OPTIONAL LUBRICATOR/ISOLATING VALVE
GG12454-C
10A9421‐A
AJ5428‐D
A0832‐2
VIEW A
VIEW B
FLOW DIRECTION
APPLY LUBRICANT
