Emerson Fisher Large ED - Page 26

Instruction Manual
D103553X012
Large ET and ED Valves
July 2017
26

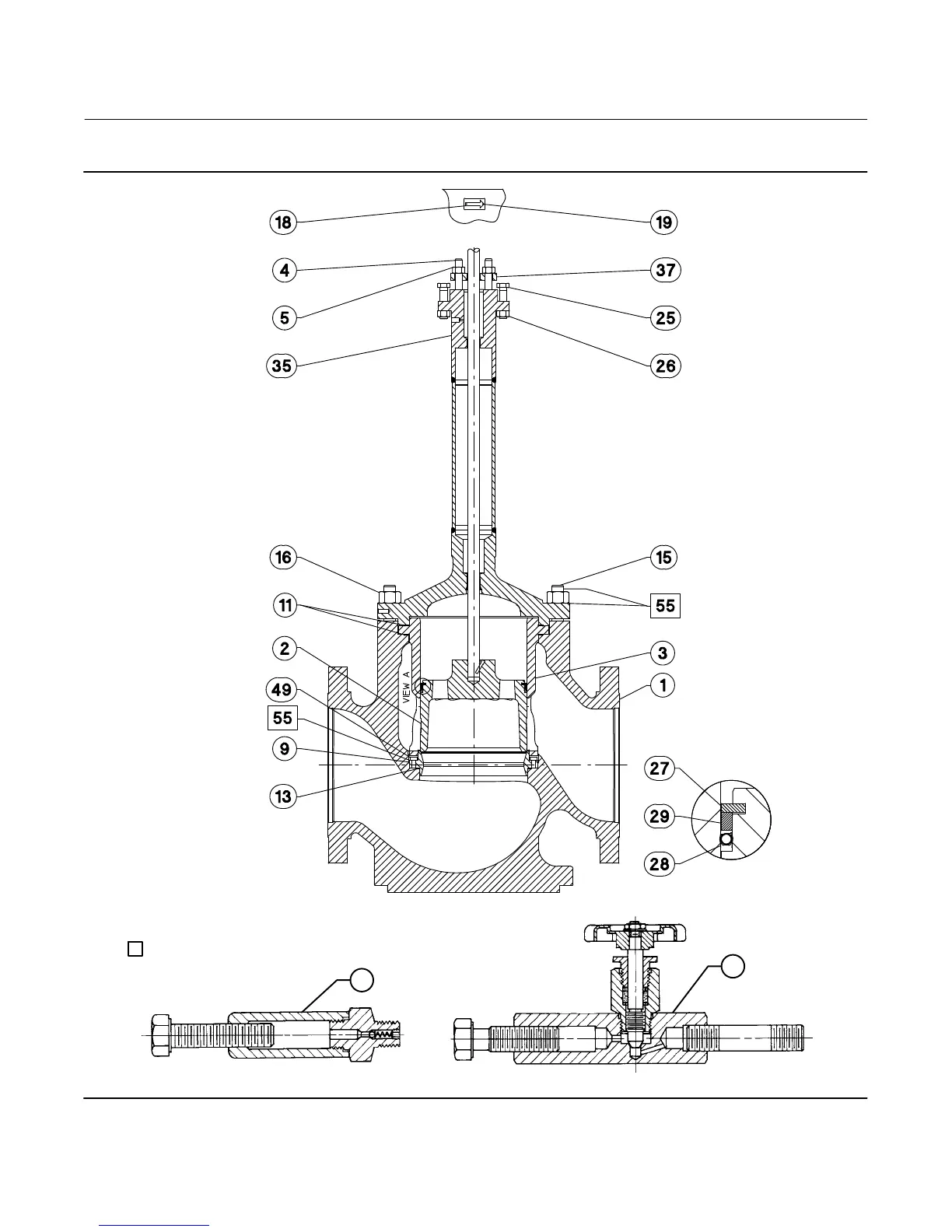

Figure 8. Typical Fisher ET-C/EWT-C Valve
31
31
OPTIONAL LUBRICATOR OPTIONAL LUBRICATOR/ISOLATING VALVE
GE81255-A
10A9421‐A
AJ5428‐D
A0832‐2
VIEW A
FLOW DIRECTION
APPLY LUBRICANT
