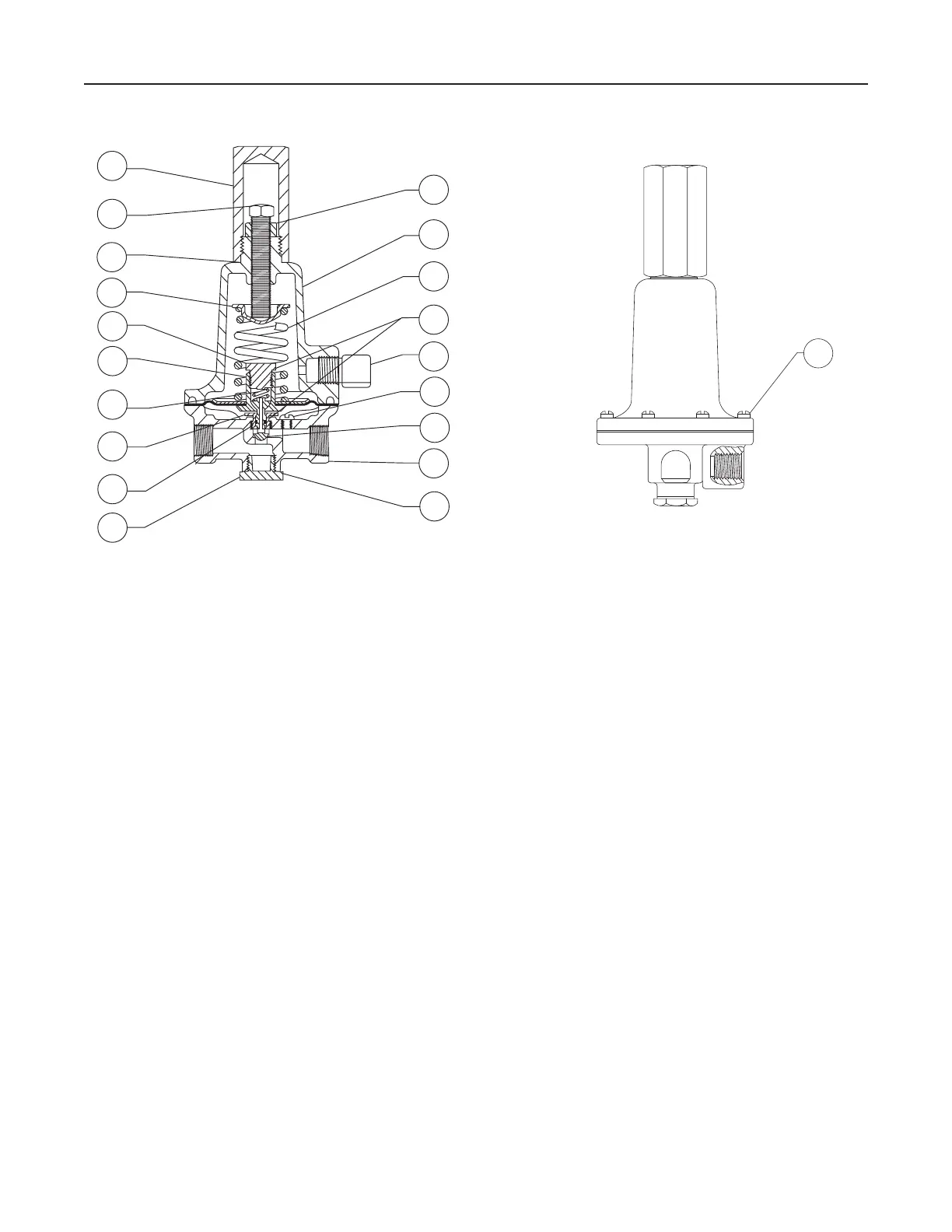

TYPE 6358B PILOT INTERIOR VIEW TYPE 6358B PILOT EXTERIOR VIEW
Figure 6. Type 6358B Pilot Assembly
B2619-1
A6920
Type 6358B Pilot (Figure 6)
Key Description Part Number
Parts Kit (includes keys 4, 5, 13, 14,
19, 36, and 37) R6358X00012
1 Pilot Body, Aluminum 39A0138X012
2 Spring Case, Aluminum 25A6220X012
3 Body Plug, Aluminum 1B797509032
4* Valve Plug and Stem Assembly
Nitrile (NBR) plug with stainless steel stem 14B6372X012
Fluorocarbon (FKM) plug with stainless
steel stem 16A2924X012
5* Diaphragm Assembly
Nitrile (NBR) 15A6216X072
Fluorocarbon (FKM) 15A6216X172
6 Connector Cap, Stainless steel 16A2921X012
7 Spring
10 to 18 psig (0,69 to 1,2 bar), green 1B986027212
18 to 30 psig (1,2 to 2,1 bar), unpainted 1B788327022
30 to 60 psig (2,1 to 4,1 bar), red 1B798525062
Key Description Part Number
8 Spring Seat, Zinc-plated steel 1B798525062
9 Stem Guide, Stainless steel 16A2923X012
10 Adjusting Screw 10B7192X012
11 Locknut 1A946324122
12 Closing Cap 23B9152X012
13* Body Plug Gasket or O-ring
Nitrile (NBR) 1C495704022
Fluorocarbon (FKM) 1N463906382
14 Valve Spring 17A2328X012
16 Vent Assembly, Type Y602X1-A12 (2 required) 27A5515X012
17 Machine Screw (6 required) 10B6189X022
20 Restriction
High gain 17A7270X012
36* Stem Guide Gasket,
Fluorocarbon (FKM) (2 required) 1U1716X0012
37 Stem O-ring
Nitrile (NBR) 16A2920X012
Fluorocarbon (FKM) 16A2920X022
* Recommended spare part
12
10
19
8
6
5
14
9
37
3
13
1
4
20
16
36
7
2
11
17
