Type 289P
11

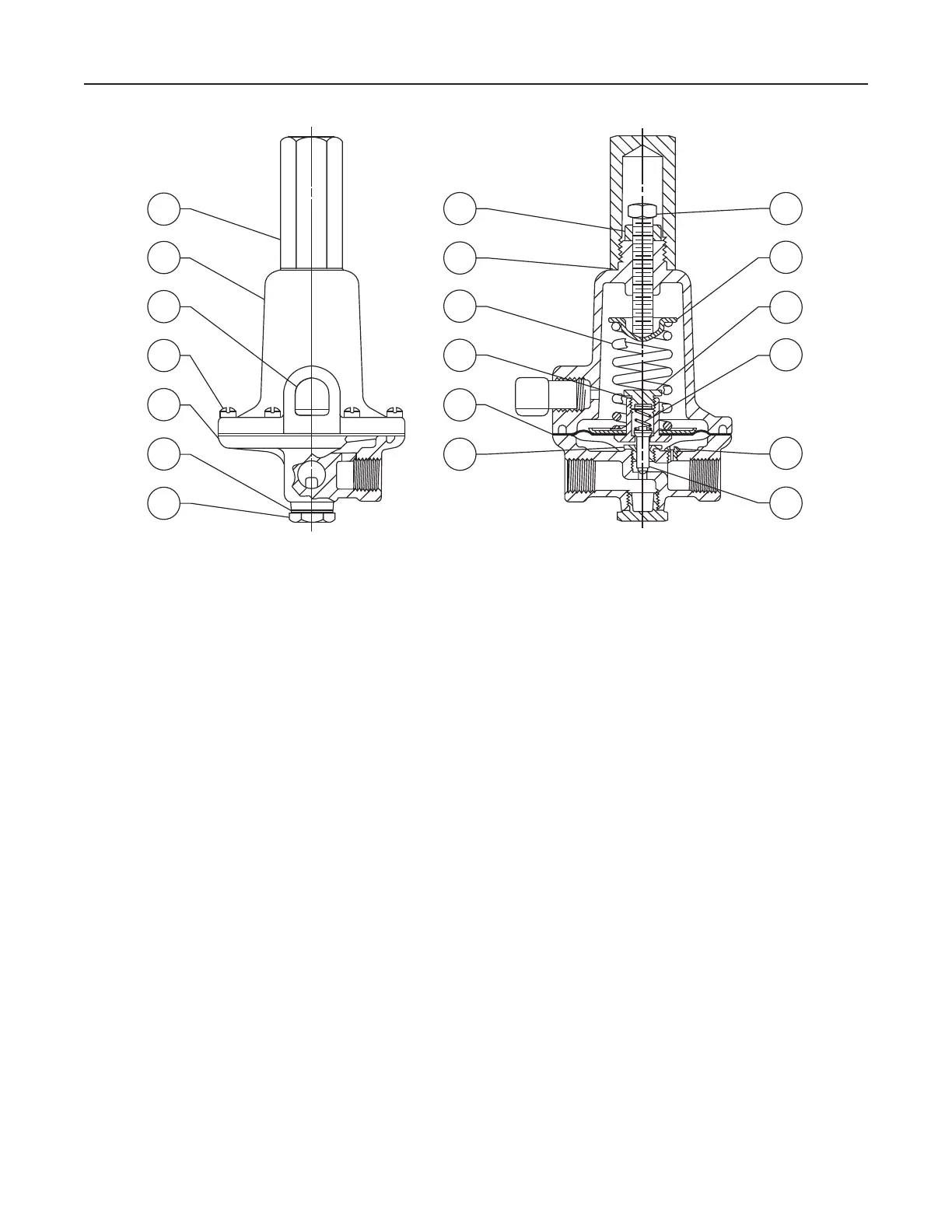

TYPE 6365 PILOT INTERIOR VIEW TYPE 6365 PILOT EXTERIOR VIEW
Figure 7. Type 6365 Pilot Assembly
Type 6365 Pilot (Figure 7)
Key Description Part Number
Parts Kits (included are keys 4, 5, 13,
14, 19, and 36)
0.5 to 10 psig (0,03 to 0,69 bar) R6365X00012
1 Body Assembly, Aluminum 39A0138X012
2 Spring Case, Aluminum 25A6220X012
3 Body Plug, Aluminum 1B797509032
4* Plug/Stem Assembly
Nitrile (NBR) plug with stainless steel stem 19A0137X012
5* Diaphragm Assembly (includes heat-treated
416 Stainless steel diaphragm plate) 15A6216X182
6 Connector Cap, 18-8 Stainless steel 16A2921X012
7 Control Spring, Zinc-plated steel spring wire
14-inches w.c. to 2 psig (35 mbar to 0,14 bar) 14A9672X012
8 Spring Seat, Steel 1B798525062
Key Description Part Number
9 Plug/Stem Guide, Stainless steel 16A2923X012
10 Adjusting Screw, Plated steel 10B3692X012
11 Locknut, Zinc-plated steel 1A946324122
12 Closing Cap, Aluminum 23B9152X012
13* Body Plug Gasket, Composition 1C495704022
14* Plug/Stem Spring, Inconel
(1)
X750 17A2328X012
16 Type Y602-12 Vent Assembly, Plastic 27A5516X012
17 Machine Screw, Carbon steel (6 required) 10B6189X022
19* Closing Cap Gasket, Composition 15A6218X012
20 Restriction, Plated carbon steel
No. 70 drill size or 0.028-inch (0,71 mm)
diameter, standard (indicated by H for
high gain stamped on pilot body and
yellow color code) 17A7279X012
36* Connector Cap Gasket, Fluorocarbon (FKM) 1U1716X0012
* Recommended spare part
1. Inconel
®
is a marked owned by Special Metals Corporation.
1
13
3
17
16
2
12
11
10
8
6
14
20
4
19
7
36
5
9
