Emerson Fisher Y692 - Page 2

3
4
2
1
4
5
35
23
93
30
5
4
44
35
23
30
1
2
3
47
74
44
23
30
35
21
22
20
13
11
19
17
16
14
28
25
27
46
6
7
1
2
3
4
5
8
9
34B4832-B
34B4869-A
Type Y692
Facebook.com/EmersonAutomationSolutions
LinkedIn.com/company/emerson-automation-solutions
Twitter.com/emr_automation
Webadmin.Regulators@emerson.com
Emerson Automation Solutions
Fisher.com
D102031X014 © 2001, 2021 Emerson Process Management Regulator
Technologies, Inc. All rights reserved. 10/21.
The Emerson logo is a trademark and service mark of Emerson Electric Co.
All other marks are the property of their prospective owners.
Fisher™ is a mark owned by Fisher Controls International LLC, a business
of Emerson Automation Solutions.
The contents of this publication are presented for informational purposes
only, and while every e󰀨ort has been made to ensure their accuracy,
they are not to be construed as warranties or guarantees, express or
implied,regarding the products or services described herein or their use
or applicability. All sales are governed by our terms and conditions, which
are available upon request. We reserve the right to modify or improve the
designs or specications of such products at any time without notice.
Emerson Process Management Regulator Technologies, Inc does not
assume responsibility for the selection, use or maintenance of any product.
Responsibility for proper selection, use and maintenance of any Emerson
Process Management Regulator Technologies, Inc. product remains solely
with the purchaser.
For further information on the current
PED revision see Bulletin: D103053X012
or scan the QR code.
Taking Out of Service (Shutdown)
▲
WARNING
To avoid personal injury resulting from sudden
release of pressure, isolate the regulator from all
pressure before attempting disassembly.
Parts List
Key Description
1 Control Spring
2 Adjusting Screw
3 Closing Cap
4 Control Spring Seat
5 Diaphragm and Plate Assy
6 Lower Diaphragm Plate
7 Diaphragm Plate Gasket
8 Pusher Post
9 Lever Assembly
11 Machine Screw
13 Stem
14 Cotter Pin
16 Body Gasket
17 Split Ring
19 Union Nut
20 Lower Casing
21 Diaphragm Case Cap Screw
Key Description
23 Spring Case
25 Disk Assembly
27 Orice
28 Body
29 Pipe Plug
30 Diaphragm Cap Screw
35 Closing Cap Gasket
44 Upper Spring Seat
46 Valve Disk Washer
47 Machine Screw
50 Nameplate
51 Drive Screws (4 required)
56 Vent Assembly
71 Bushing
74 Pitot Tube
93 Hex Nut

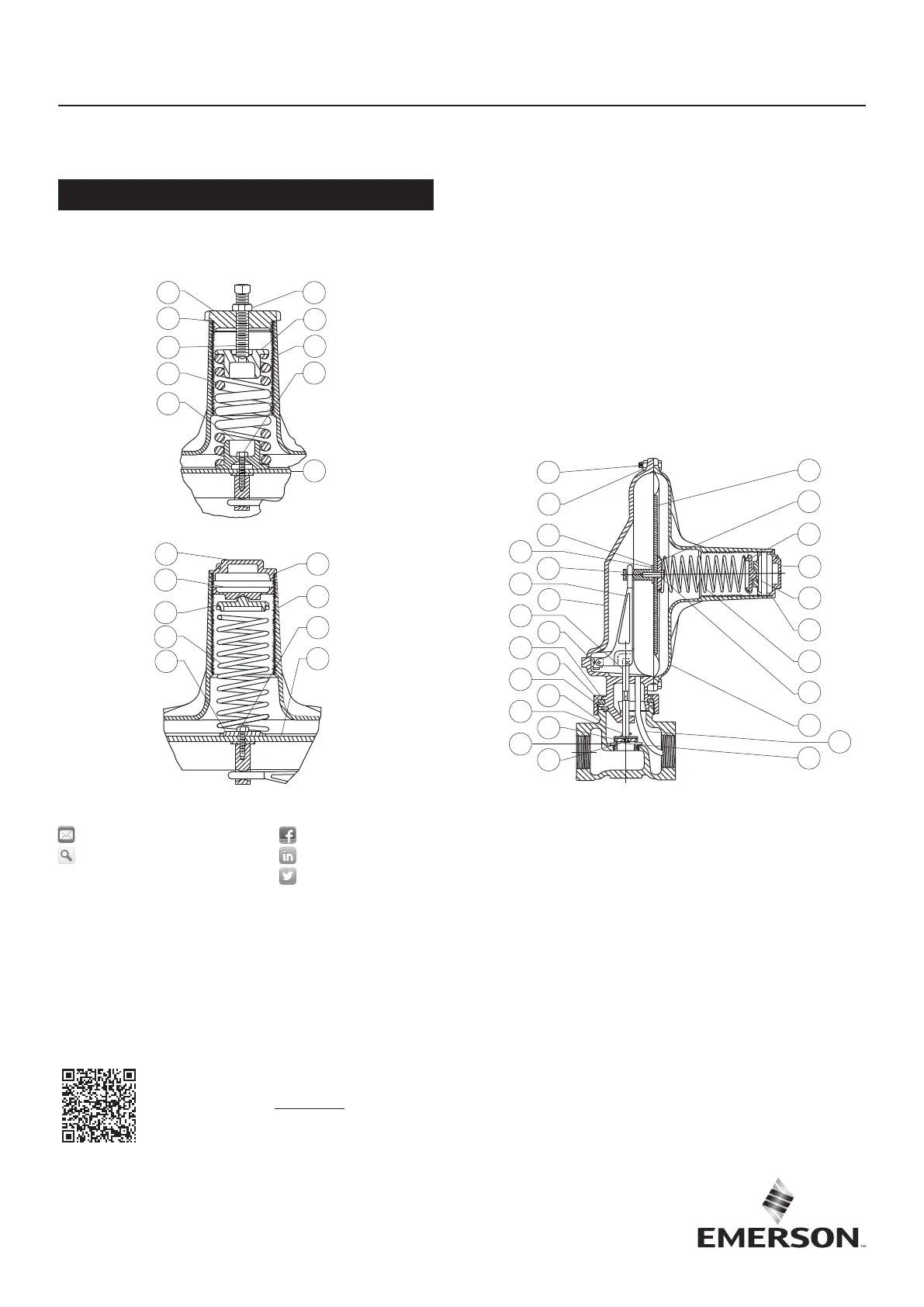

Figure 1. Type Y692 with a Heavy Control Spring Assembly
Figure 2. Type Y692 with a Light Control Spring Assembly
Figure 3. Type Y692 Regulator
