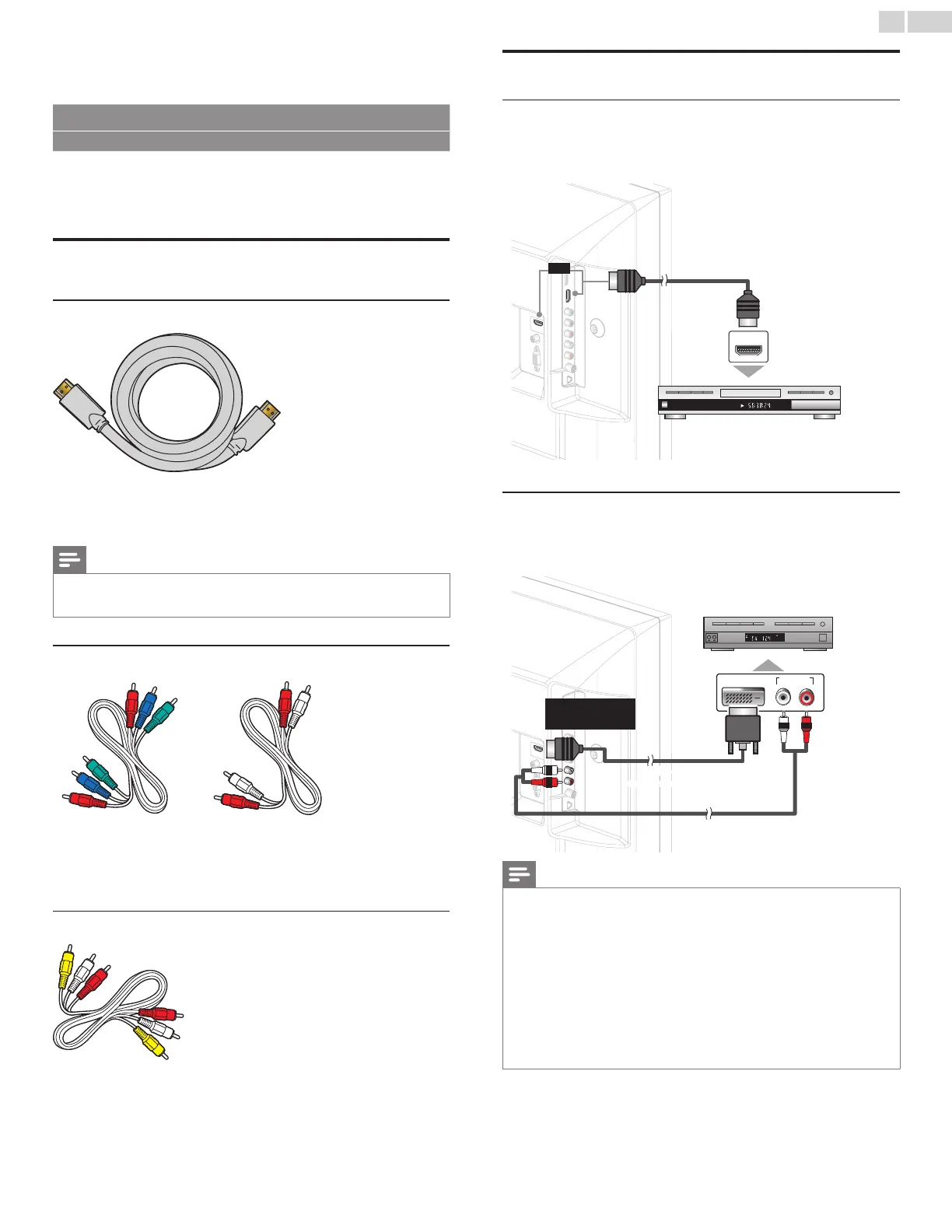

7 Connecting devices
No supplied cables are used with these connections:
• Please purchase the necessary cables at your local store.
Before you connect AC power cord:
Be sure other devices are connected properly before plugging in the AC
power cord.
Selecting your connection quality
HDMI - Highest quality
Supports high-denition Digital signals and gives highest picture and
sound quality. Video and audio signals are combined in one cable.
You must use HDMI for full high-denition video and to enable
fun-Link (HDMI CEC).
Note
• Emerson HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP
is a form of Digital Rights Management that protects high denition content in Blu-ray
discs or DVDs.
Component (Y Pb Pr) - High quality
Supports high-denition Analog signals but gives lower picture quality than
HDMI. Component (Y/Pb/Pr) Video cables combine red / green / blue
video cables with red / white audio (L/R) cables. Match the cable colors
when you connect to the TV.
Composite - Basic quality
For analog connections. Composite Video / Audio Analog cable usually
combine a yellow video cable with red / white audio (L/R) cables. With
this unit, yellow cable must be connected to Y (green) of Component
Video Input jacks.
Connecting your devices
HDMI Digital connection
HDMI connection offers the highest picture quality.
HDMI (High-Denition Multimedia Interface) transports high denition
Digital video and multi-channel Digital Audio through a single cable.
HDMI OUT
CHAPTER 15
REPEAT A-B
TITLE 5
Blu-ray / DVD recorder
with the HDMI output jack
HDMI cable
HDMI-DVI Connection
This unit can be connected to your device that has a DVI terminal.
Use an HDMI-DVI conversion cable for this connection and it requires
audio cable for Analog Audio signal as well.
STEREO
PCM
DVI OUT
AUDIO OUT
RL
cable receiver or satellite box with
the DVI output jack
HDMI-DVI
conversion cable
audio cables
To HDMI 1
Input jack only
Note
• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI
cable is recommended for the better compatibility.
For HDMI connection
• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals, 32kHz
/ 44.1kHz and 48kHz of audio signals.
• This unit accepts 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal
(LPCM).
• This unit accepts only signals in compliance with EIA861.
For HDMI-DVI connection
• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
• HDMI-DVI connection requires separate audio connections as well and the audio
signals are output as Analog (L/R) Audio.
• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
or
