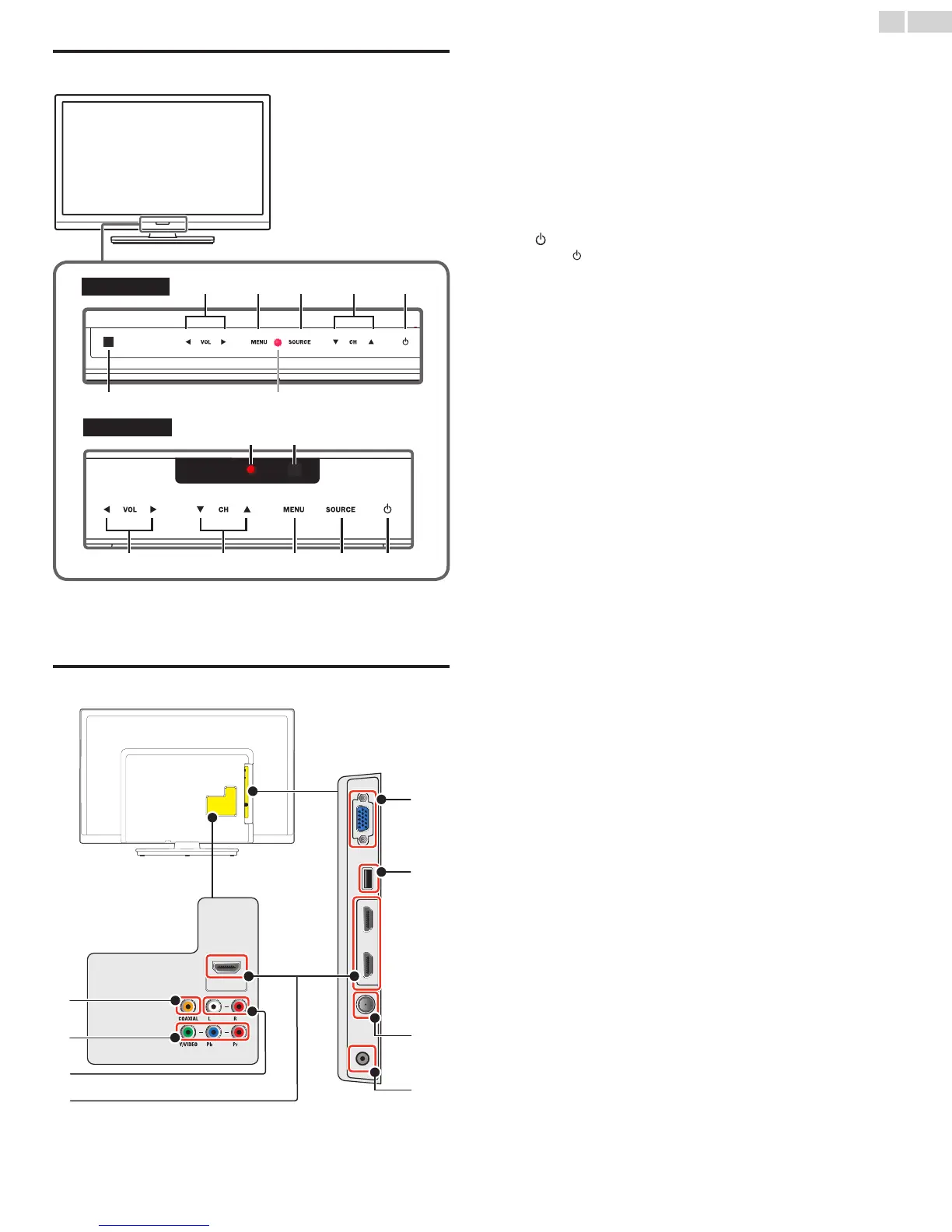

Control panel
a VOL ◄/►
Touch to adjust volume down (◄) / up (►) or to move
left (◄) / right (►) when selecting menu items.
b CH ▲/▼
Touch to select channels or to move up (▲) / down (▼) when
selecting menu items.
c MENU
Touch to display the main menu.
d SOURCE
Touch to select the connected devices.
e (POWER-ON / STANDBY-ON)
Touch
to Turn the unit On and go into Standby mode.
To completely Turn Off the unit, you must unplug the AC power
cord.
f Power On indicator
Lights up red when the unit is in Standby mode and ashes while
the unit is Turning On.
g
 Infrared sensor
Receives IR signals from remote control.
a db c e
fg
50 inch TVs
4 23
a b c d e
f g
39 inch TVs
Terminals
h Digital Audio Output jack
Digital Audio (S/PDIF) Output to home theaters and other Digital
Audio systems.
i Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks for
VIDEO
Composite Video Input (VIDEO) jack is shared jack with
Component Video Input (Y) jack.
j Analog Audio (L/R) Input jacks
Connect Analog Audio signals from;
- HDMI-DVI / Analog Audio (L/R) jacks signal
- Component Video / Analog Audio (L/R) jacks signal
- Composite Video / Analog Audio (L/R) jacks signal
- PC Connection / Analog Audio (L/R) jacks signal with Stereo
mini 3.5mm plug Audio cable on PC
k HDMI Input jack(s)
Digital audio and video Input from high denition Digital devices
such as Blu-ray disc players, cable boxes and satellite set-top
boxes.
l PC Input jack
VGA cable connection for PC.
m USB terminal
Data Input from USB Memory Stick only.
Do not connect any device to this terminal such as; Digital
camera, keyboard, mouse, etc.
n 75 ohm Cable / Antenna connection
Signal Input from an antenna, cable or satellite.
o Headphone Audio Output jack
Headphone 3.5mm stereo jack for personal listening.
h
j
k
l
m
n
o
i
