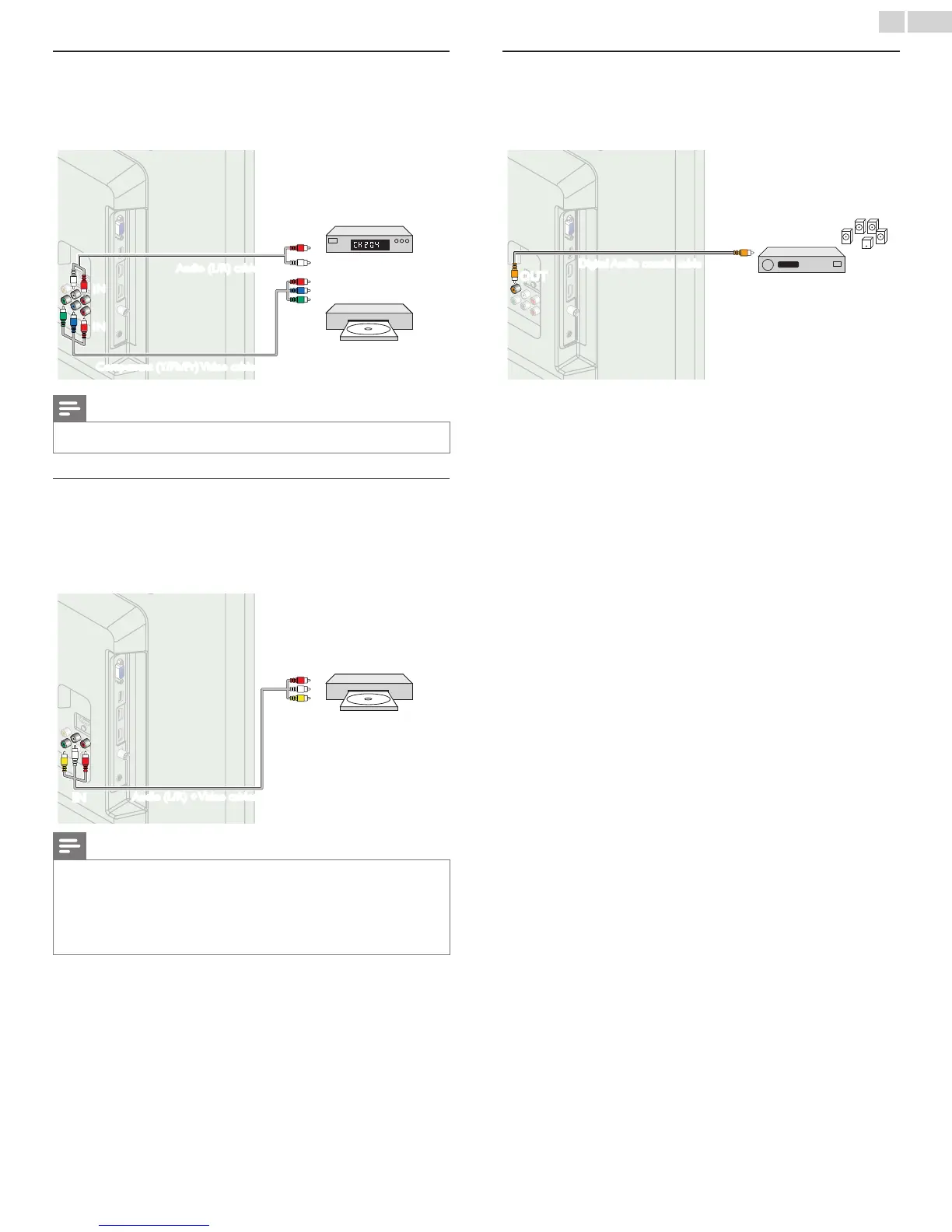

Component Analog Video Connection
Component Analog Video connection offers better picture quality for
video devices connected to the unit.
If you connect to the unit’s Component Video (Y/Pb/Pr) Input jacks,
connect Analog Audio cables to the Analog Audio (L/R) Input jacks.
OUTOUT
IN
IN
IN
IN
OUT
OUT
Component (Y/Pb/Pr) Video cables
Audio (L/R) cables
set-top box
or
Blu-ray disc/DVD recorder
Note
• The unit accepts 480i / 480p / 720p and 1080i of video signals for this connection.
Composite Analog Video Connection
Composite Analog Video connection offers standard picture quality for
video devices connected to the unit.
If you connect to the unit’s Composite Video (Y/VIDEO) Input jack,
connect audio cables to the Audio (L/R) Input jacks. When the Audio is
monaural, then only connect to the Audio L Input jack.
OUTOUT
IN
IN
DVD player
Audio (L/R) + Video cables
Note
• With this unit, yellow cable must be connected to Y (green) of Component Video Input
jacks.
• Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must
disconnect the Component Video Input jacks (Pb and Pr). If you leave those jacks
connected, it may cause of unstable picture.
• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to
stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.
Digital Audio Output Connection
If you connect this unit to an external Digital Audio device, you can
enjoy multi-channel audio like 5.1ch Digital broadcasting sound.
Use a Digital Audio coaxial cable to connect the unit to external Digital
Audio devices.
ININ
OUT
OUT
Digital home theater
amplier
Digital Audio coaxial cable
