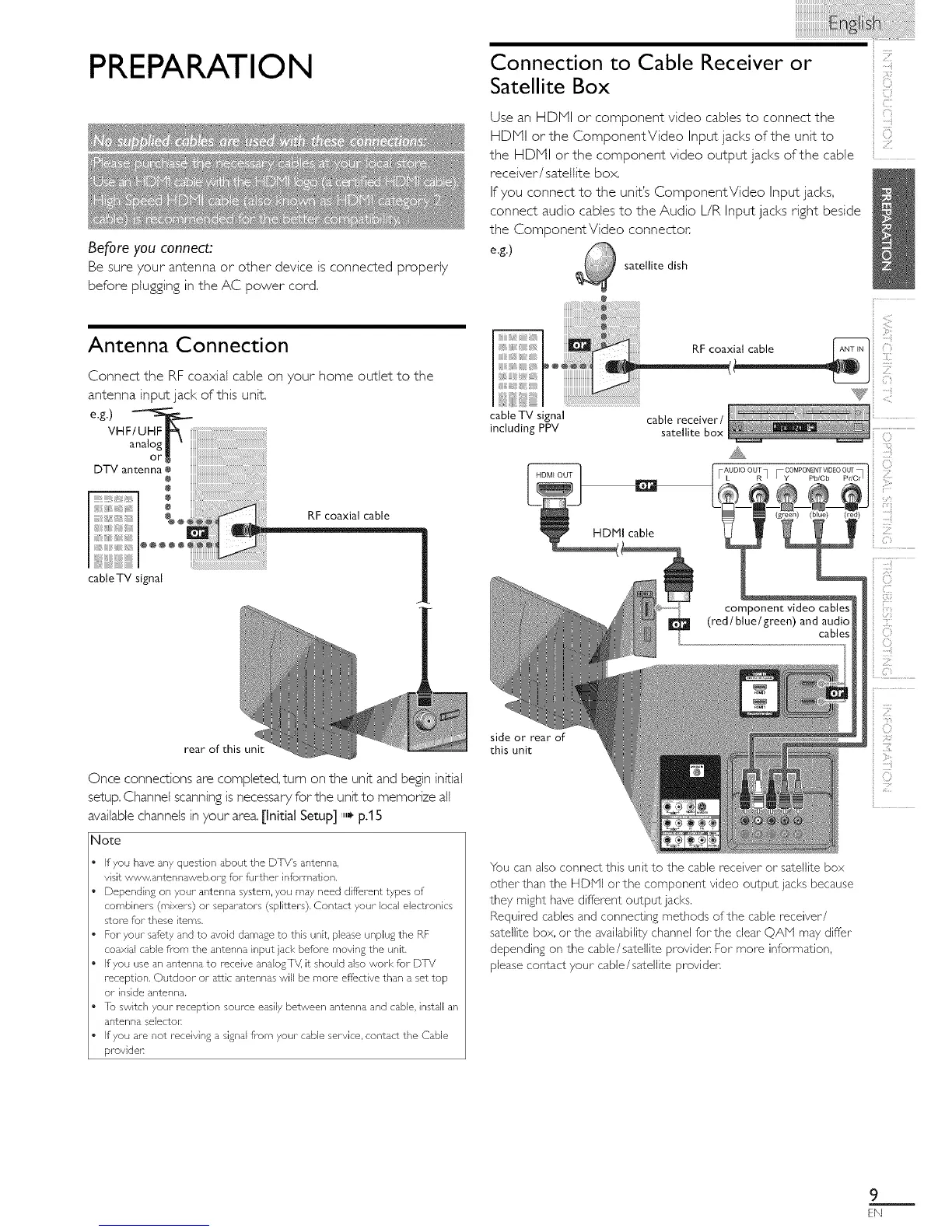

PREPARATION
Before you connect:
Be sure your antenna or other device is connected properly
before plugging in the AC power cord,
Antenna Connection
Connect the RF coaxial cable on your home outlet to the
antenna input jack of this unit,
cable TV signal
rear of this unit
Once connections are completed, turn on the unit and begin initial
setup, Channel scanning is necessary for the unit to memorize all
available channels in your area, [Initial Setup] ,,_ p.15
Note
If you have any question about the DTV's antenna,
visit www, antennaweb.org for further information,
Depending on your- antenna system, you may need different types of
combiners (mixers) or separaIors (splitters). Contact your local electronics
store for- these items.
For- your safety and to avoid damage to this unit, please unplug the RF
coaxial cable from the antenna input jack before moving the unit.
If you use an antenna to receive analogTV, it should also work for DTV
reception, Outdoor- or attic antennas will be more effective than a set top
or- inside antenna,
To switch your reception source easily between antenna and cable, install an
antenna sdectol:
If you are not receiving a signal from your cable service, contact the Cable
provider:
Connection to Cable Receiver or
Satellite Box
Use an HDiVil or component video cables to connect the
HDiVil or the ComponentVideo Input jacks of the unit to
the HDiVil or the component video output jacks of the cable
receiver/satellite box.
If you connect to the unit's ComponentVideo Input jacks,
connect audio cables to the Audio L/R Input jacks right beside
the ComponentVideo connector.
e.g.)
satellite dish
.....ii
!31
O
T i
cable TV signal cable receiver/
including PPV satellite box
A
AUDIO OUT
FL R q Fy
side or rear of
this unit
i!3i
You can also connect this unit to the cable receiver or satellite box
other than the HDMI orthe component video output jacks because
they might have dP,rferent output jacks.
Required cables and connecting methods of the cable receiver/
sa±ellite box, orthe availability channel for the clear QAH may differ
depending on the cable/satellite provider: For" more information,
please contact your" cable/satellite providen
9
EN
