Emerson LD260EM2 - Connecting Input Sources; 26 Model Input Jacks; 19 Model Input Jacks

9
INTRODUCTION
PREPARATION WATCHING TV
USING FUNCTIONS OPERATING DVD
CONNECTING DEVICES
INFORMATION USEFUL TIPS
English
18
21
17
20
19
22
15
16
14
*
12
13
26”

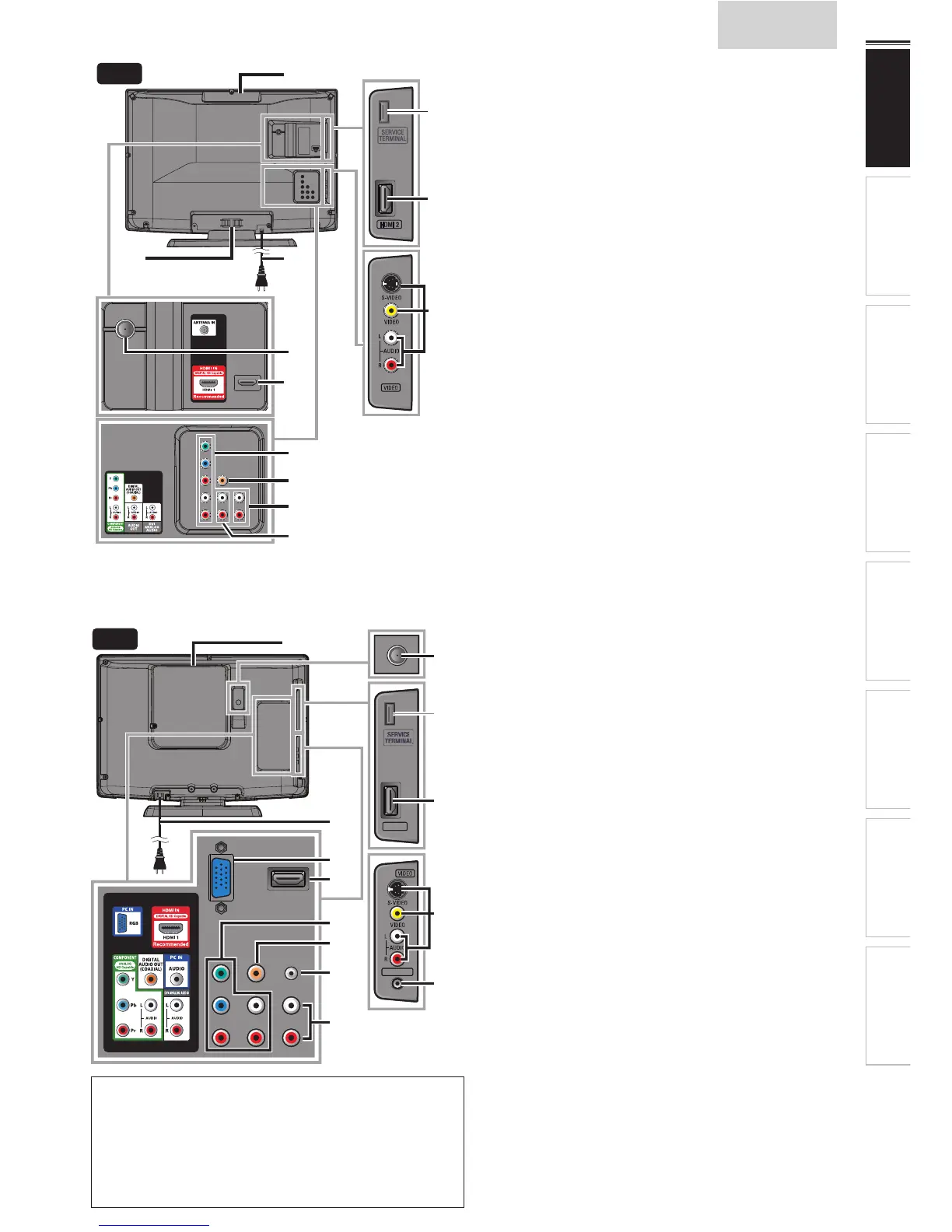

<LD320EM2 / LD260EM2>
Side Panel
12 HDMI 2 Input jack
➠
p. 12, 34
13 S-Video / Composite Video / Audio (L/R) Input jacks
for VIDEO
➠
p. 35, 36
Rear Panel
14 Disc loading slot
➠
p. 29
15 AC power cord
➠
p. 12
16 Cable management
➠
p. 37
17 Component Video and Audio (L/R) Input jacks
➠
p. 12, 35
18 Analog Audio (L/R) Output jacks
➠
p. 37
19 Analog Audio (L/R) Input jacks for HDMI 1 /
HDMI-DVI
➠
p. 34, 37
Audio cable connection from a DVI device.
When you connect your PC that has a DVI terminal,
use a stereo mini plug conversion cable as well.
(For HDMI 1 Input jack only)
20 Digital Audio Output jack
➠
p. 36
21 Antenna Input jack
➠
p. 11
22 HDMI 1 / HDMI-DVI Input jack
➠
p. 12, 34, 37
HDMI connection for HDMI or DVI device.
When you connect your PC that has a DVI terminal,
you can enjoy this unit as a PC monitor.
HDMI 2
HDMI 2
HEAD PHONE
HEAD PHONE
HDMI 2
HDMI 2
HEAD PHONE
HEAD PHONE
*
14
13
12
15
16
19
21
20
22
23
*
14
13
12
15
16
19
21
20
22
23
18
19”19”
17
Note for service terminal
*
service terminal (service use only)
• Use this terminal only when a software update is necessary.
• User should not connect any devices to the service terminal such as
digital camera, keyboard, mouse, etc. (because these will not work).
• The software update is, in most cases, handled by an authorized
service person or in some circumstances the user may be asked
to do the software update themselves.
<LD190EM2>
Side Panel
12 HDMI 2 Input jack
➠
p. 12, 34
13 S-Video / Composite Video / Audio (L/R) Input jacks
for VIDEO
➠
p. 35, 36
14 Headphone Audio Output jack
Headphone connection for personal listening.
Rear Panel
15 Antenna Input jack
➠
p. 11
16 Disc loading slot
➠
p. 29
17 AC power cord
➠
p. 12
18 PC (VGA) Input jack
➠
p. 37
19 HDMI 1 / HDMI-DVI Input jack
➠
p. 12, 34
20 Component Video and Audio (L/R) Input jacks
➠
p. 12, 35
21 Digital Audio Output jack
➠
p. 36
22 Analog Audio (L/R) Input jack for PC connection
➠
p. 37
Mini-plug audio cable connection from PC.
23 Analog Audio (L/R) Input jacks for HDMI 1 /
HDMI-DVI
➠
p. 34
Audio cable connection from a DVI device.
(For HDMI 1 Input jack only)
