6.0 INDICATOR LAMPS
6.1 Mains Indicator Lamp
This amber lamp is illuminated when mains power is present (see Figure 6). It signals that loads can
be transferred to maintenance bypass (Mains mode) operation via the rotary switch. If mains power is
not present, this lamp will be off and the UPS will supply battery backup power to connected loads.
6.2 UPS Indicator Lamp
This green lamp is illuminated when output power is available from the UPS (see Figure 6). It sig-
nals that it is safe to transfer connected loads from mains power back to UPS output power.

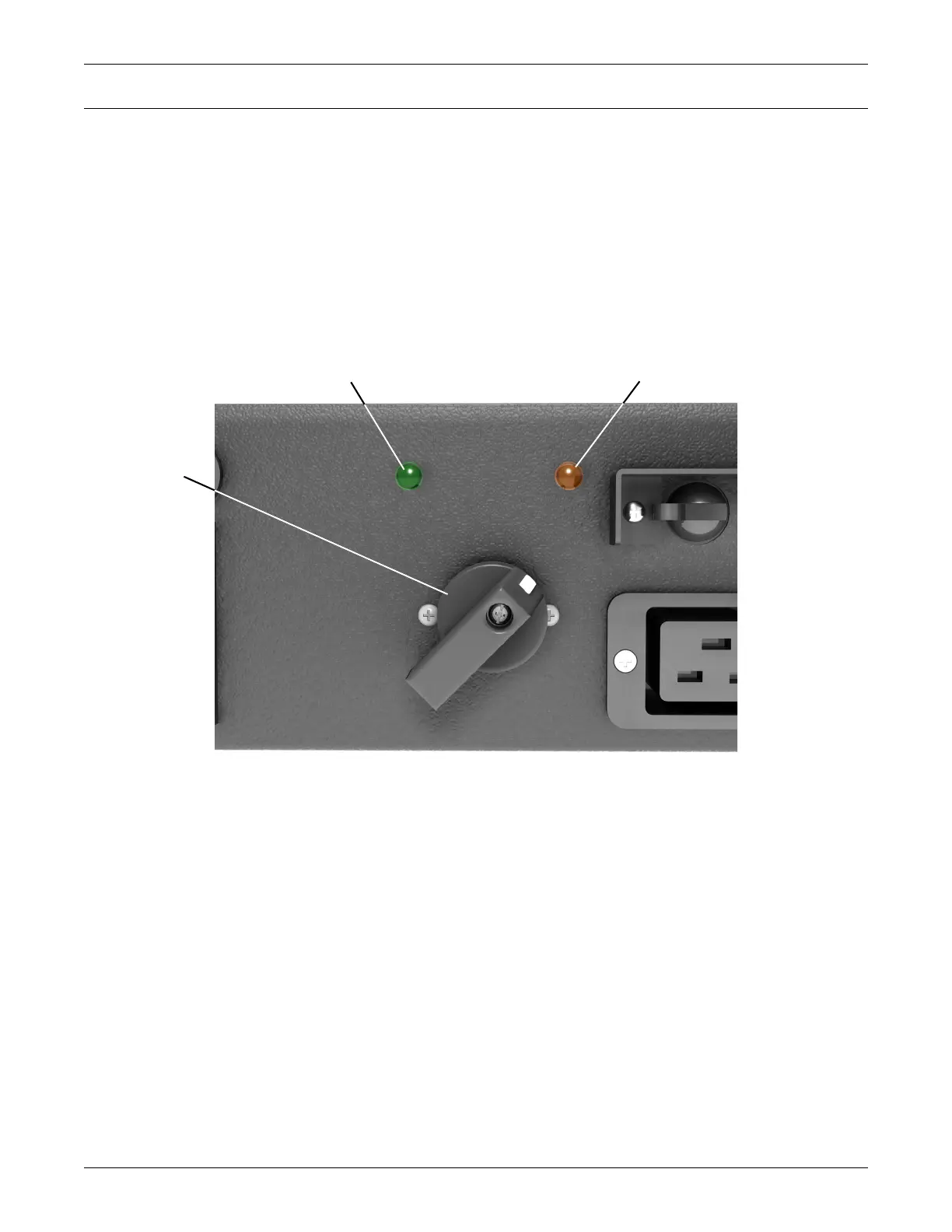

Figure 6 Indicator lamps on Liebert MicroPOD
Green lamp:
Output power available from UPS
Rotary
switch
Amber lamp:
Mains power present
