Emerson LXP48F1 User Manual

System Application Guide SAG582135000
Spec. No. 582135000 (Model LXP48F1) Issue AE, January 31, 2007
Page 39 of 43
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

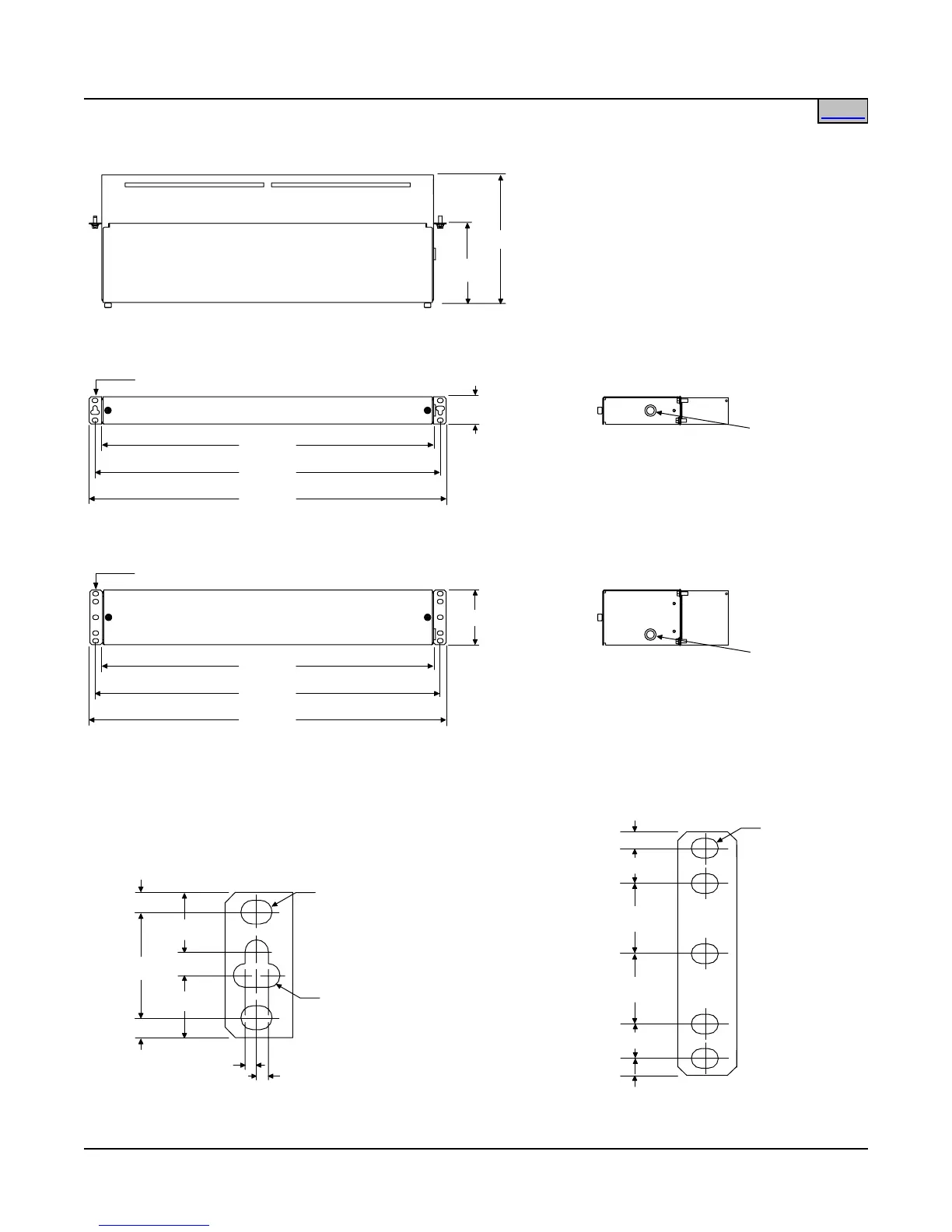

Wireway Dimensions—List 61 and 62
TOP VIEW
LIST 61 & 62
8.120
5.000
MOUNTING ANGLE DETAIL
LIST 61
0.250 x 0.375
SLOT
(2 PLACES)
1.250
0.234
0.234
0.703
0.251
0.734
(3) 0.281 DIA.
0.251
RIGHT SIDE VIEW
LIST 61
FRONT VIEW
LIST 61
1.750
23.000
21.380
22.250
See Mounting Angle Detail
RIGHT SIDE VIEW
LIST 62
FRONT VIEW
LIST 62
3.500
23.000
21.380
22.250
See Mounting Angle Detail
MOUNTING ANGLE DETAIL
LIST 62
0.250 x 0.375
SLOT
(5 PLACES)
1.000
0.234
0.500
0.234
0.500
1.000
NOTES :
2. Weight (In Pounds):
1. All dimensions are in inches.
3.
Finish :
Body: Bright Zinc
Front Panel:
Textured Warm
Gray (M500-146)
Net: 4
Shipping:
List 61:
Net:
Shipping:
List 62:
Alarm & Control
Wiring Entrance.
Bushing
I. D. = 0.375
Alarm & Control
Wiring Entrance.
Bushing
I. D. = 0.375
