Chapter 5 Use Of Monitoring Module M800D 45

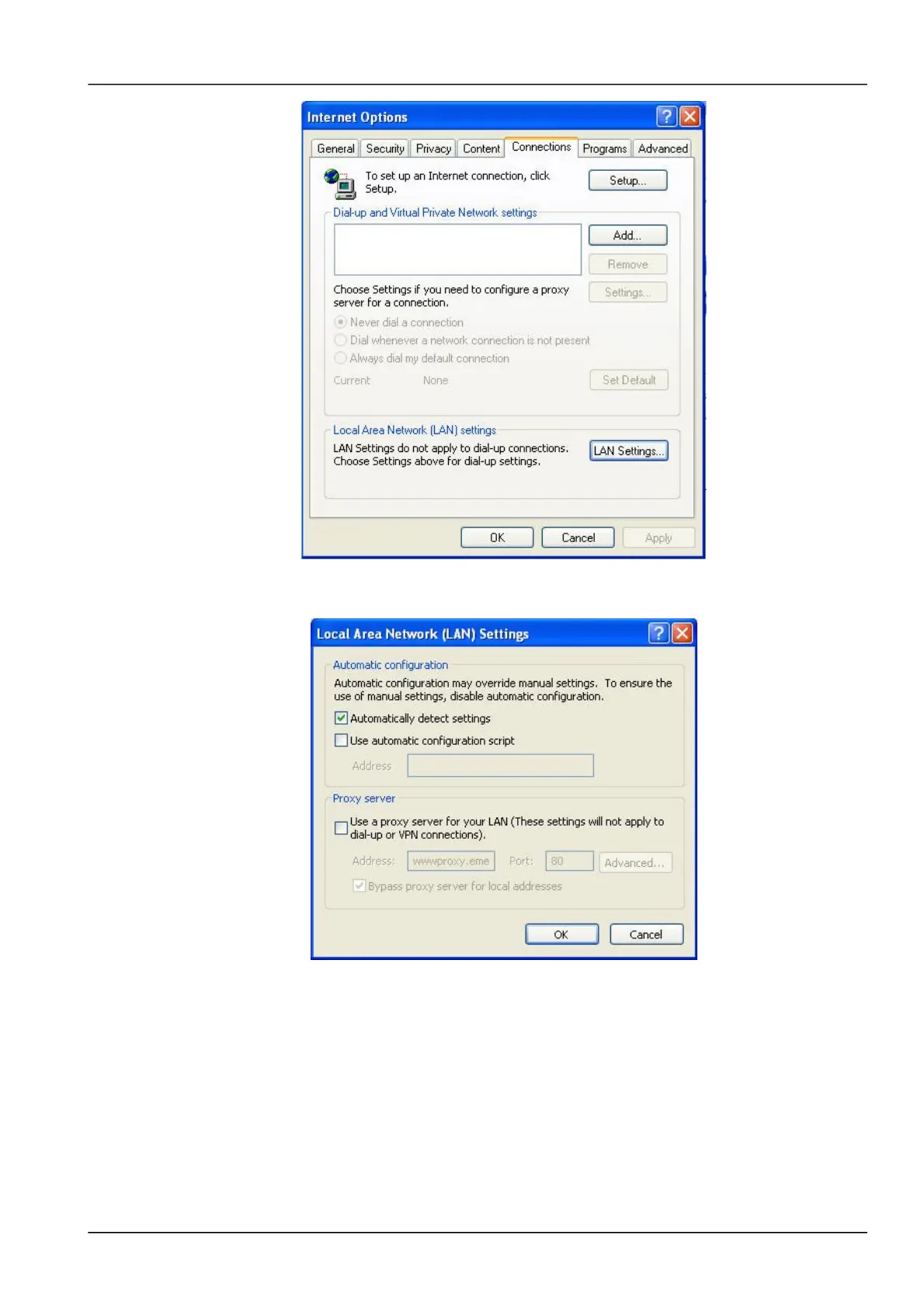

Figure 1.1 LAN setting (step 1)
In the screen shown in Figure 4-2, click the button “LAN Settings” to pop up the following screen:
Figure 1.2 LAN setting (step 2)
In the preceding screen, uncheck the proxy screen and click OK to finish the LAN setting. Then input the IP address
and press ENT, the following Web interface pops up requiring user to enter user name and password.
Note that the user needs to do the above settings only when the M800D is connected to an intranet and the user has
set that the access to the intranet must be made through proxy. If the M800D is connected to Internet and the user
computer is connected to the intranet, the user cannot disable the proxy, otherwise he cannot access the M800D.
NetSure 501 A50, NetSure 501 AA0, NetSure 701 A51 19-Inch Subrack Power Supply System User Manual
