Emerson NetSure 501 A50 User Manual

Chapter 5 Use Of Monitoring Module M800D 53
Figure 1.9 Sampled values of battery 1

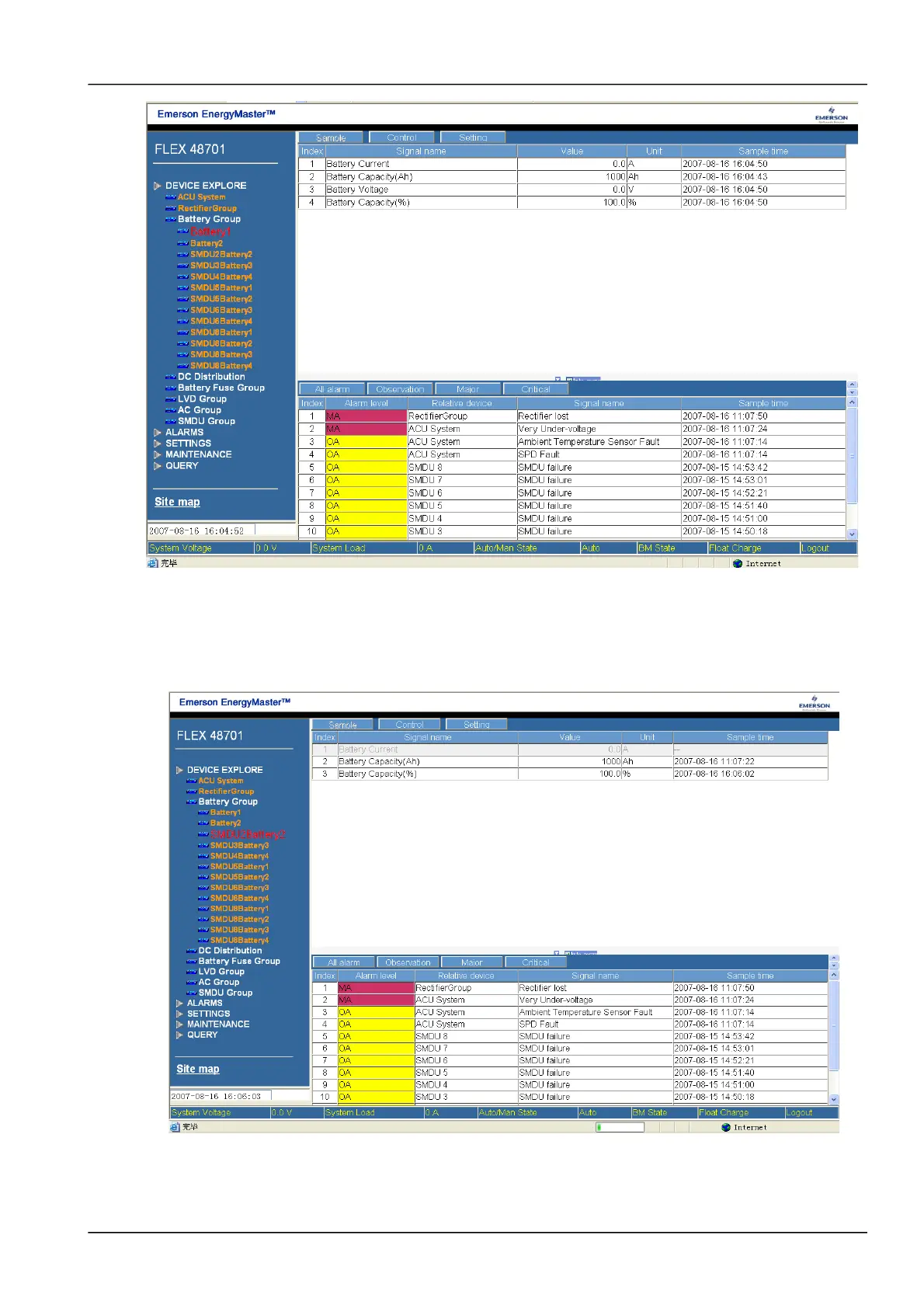

The screen shown in Figure 4-14 displays the sampled values of battery 1. In this screen, if the user click “Control” or
“Setting”, nothing will be displayed because it is not allowed to control the single battery or set the values of the single
battery.
Click “SMDU2Battery2”, following screen pops up:
Figure 1.10 SM Battery sample signal
Figure 4-15 shows the sampled values of SM battery 1. Click the button [Setting], to configure the battery
parameters.
NetSure 501 A50, NetSure 501 AA0, NetSure 701 A51 19-Inch Subrack Power Supply System User Manual
