74 Chapter 5 Use Of Monitoring Module M800D

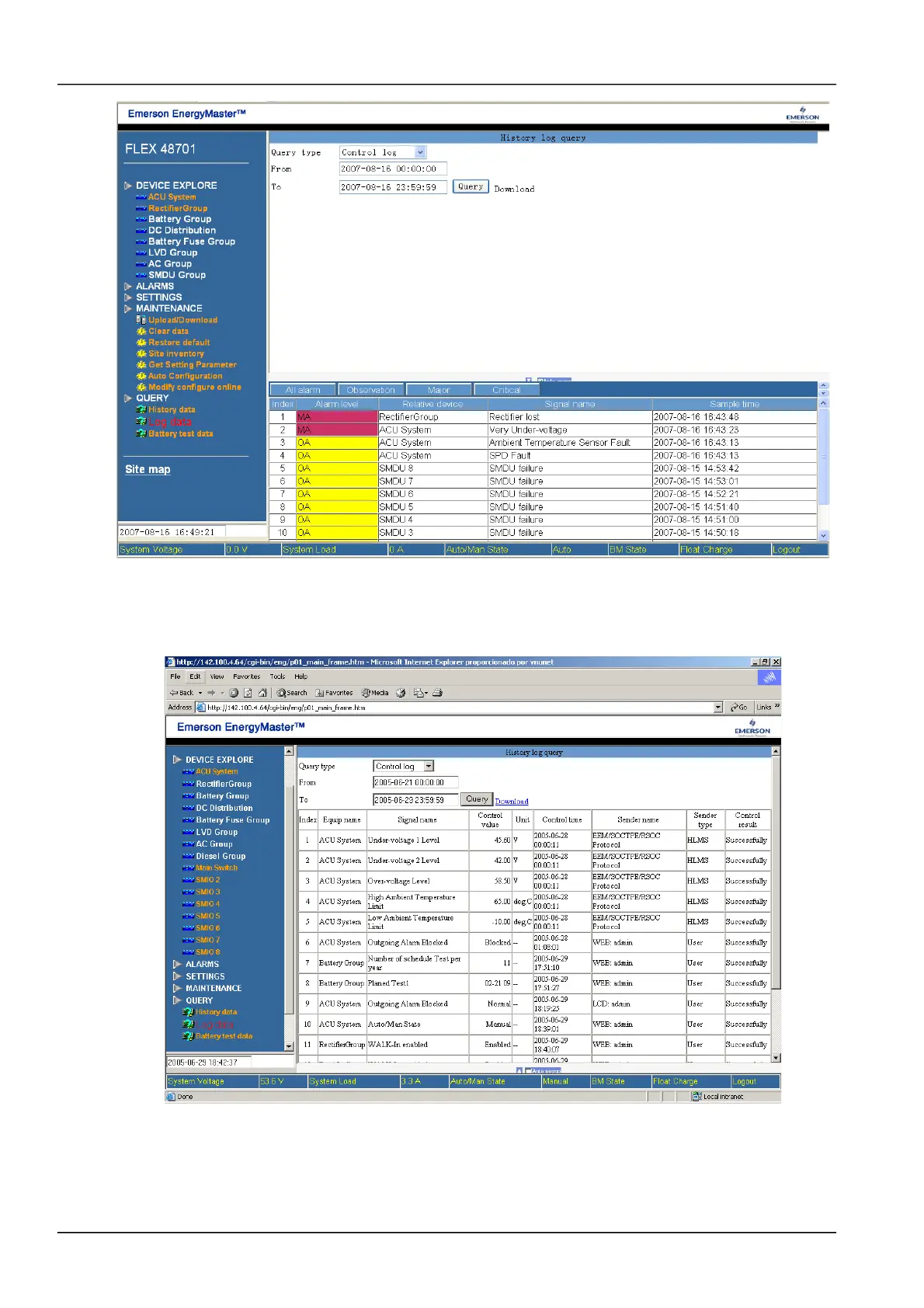

Figure 1.3 Query log screen
In the screen shown in Figure 4-45, select query type first, enter the start time and end time (for example from
00:00:00 June 21, 2005 to 23:59:59 June 29, 2005), then the log recorded from 00:00:00 June 21, 2005 to 23:59:59
June 29, 2005 will be displayed as shown in Figure 4-46.
Figure 1.4 Control log
Click the button “Battery test data”, and the following screen pops up:
NetSure 501 A50, NetSure 501 AA0, NetSure 701 A51 19-Inch Subrack Power Supply System User Manual
