Emerson PNC001-A Series Manual

Battery & Energy Pack Manual Chapter 2
GFK-2741J Oct 2019
Batteries 15
Parameter
Specification
Physical dimensions
145.1 x 65.0 x 39.9 mm (5.713” long x 2.559” wide x 1.571”
high)
Weight
232 grams
Case material
Black, flame-retardant ABS plastic
Connection
60cm (2ft) twisted red/black 22 AWG (0.326mm
2
) cable with
female two-pin connector compatible with the battery connector
on PAC Systems CPUs.
Operating temperature range
0 to +60ºC
Nominal shelf life
7 years @ 20ºC
Battery Mounting
With power removed from the equipment, drill four #29 (0.136”) (3.45mm) holes in the
panel mounting surface, and tap for #8-32 threads, according to the hole pattern shown in
the following figure. Use care to keep metal chips from falling into other equipment.
Securely attach the Auxiliary Battery module to the panel mounting surface using four #8-
32 x ½” (M4x0.7x12mm) flat head machine screws.

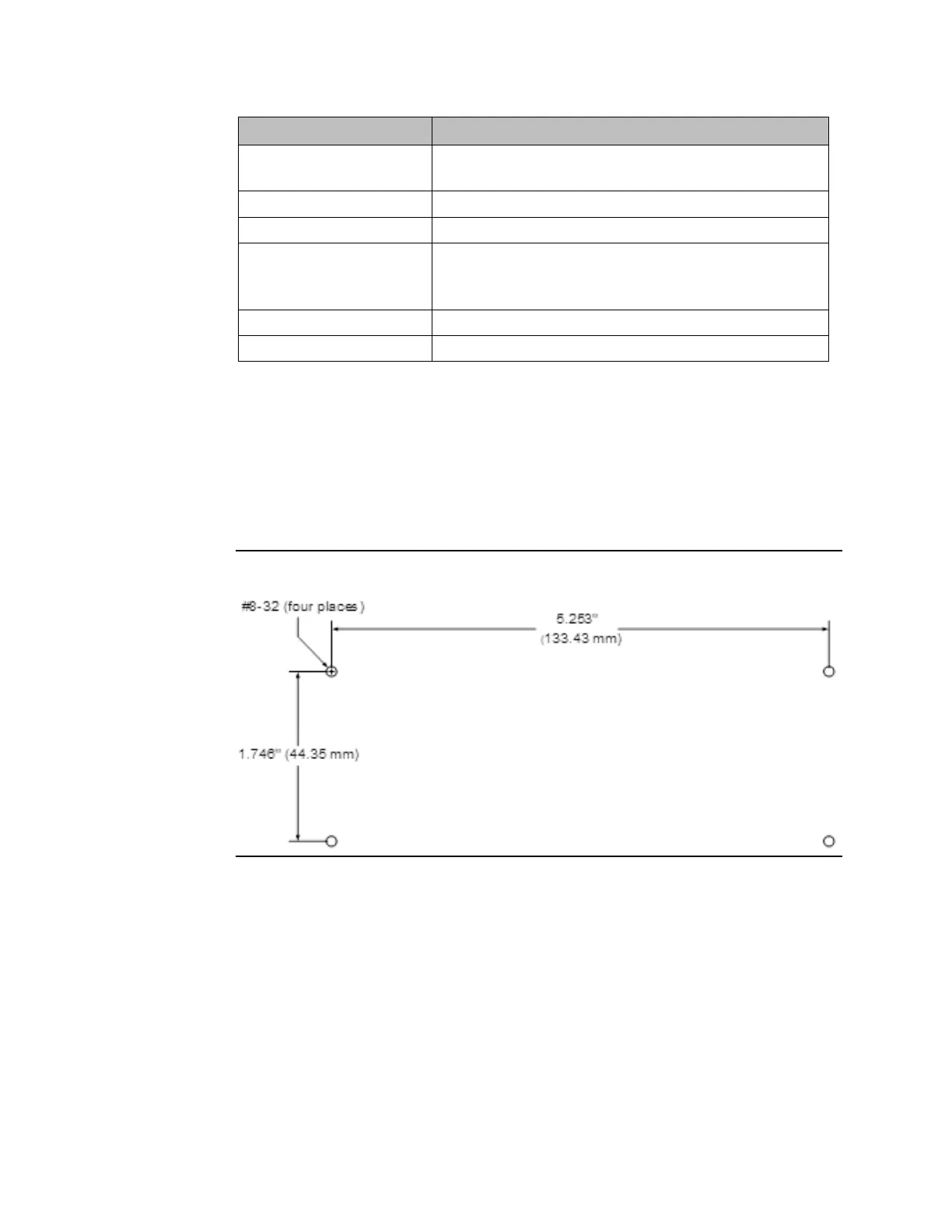

Figure 4: Mounting Diagram for IC693ACC302 Auxiliary Battery Module
CPU Battery Low Indication
The IC693ACC302 Auxiliary Battery module will not reliably provide the CPU with a battery
low indication. User logic should not rely on any of the battery status bits when using this
battery.
Diagnostics
This unit is not user-serviceable. The unit has a built-in 1-Amp fuse that will open if the unit
is subjected to a short circuit or severe overload condition. This fuse is sealed inside the
battery pack and is not replaceable.
