DETECTOR CHARACTERISTICS
MAX. SWITCHING POWER DC = 5 W - AC = 5 VA
SWITCHING VOLTAGE see below
MAX. SWITCHING CURRENT 100 mA
SHORT-CIRCUIT PROTECTION no
REVERSE POLARITE PROTECTION yes (without LED function)
OVERLOAD PROTECTION no
VOLTAGE DROP (EN 60947-5-2) < 5 volt
BREAKDOWN VOLTAGE 230 V DC
CONTACT RESISTANCE 0,2 ohm max.
INSULATION RESISTANCE 10
8
ohms at 100 V
SENSITIVITY 2,1 mTesla (21 Gauss)
REPONSE TIME 0,1 ms opening - 0,6 ms closing
REPEATABILITY < ± 0,2 mm
WORKING TEMPERATURE - 25°C , + 70°C
HOUSING
PA + GF overmoulding
CABLE PUR, resistant to cutting oils
DEGREE OF PROTECTION (IEC 60529) IP 67
PROTECTION CLASS cable outlet: class II, M8 and M12 connection: class III
APPROVAL CE
SIGNAL INDICATION yellow diode (LED) which lights up when the contact is established
CHOICE OF DETECTOR
Voltage
5 to 120 Volt AC/DC
5 to 50 Volt AC
5 to 60 Volt DC
Connection
PUR lead, 2 or 5 m long,
2 wires 0.14 mm
2
,
stripped ends
0.3 m PUR lead + 3-pin
plug-in male
connector and Ø M8
0.3 m PUR lead + 3-pin
screw-type male
connec tor, Ø M12
connection of pins
1 - 4 1 - 3
2 metres 5 metres 0,3 metre 0,3 metre 0,3 metre
weight (g) 22 50 7 7 16
compatible
cylinders
STANDARD CATALOGUE NUMBER detector
detector supplied with cable holding clip and adjustment position stop
PEC
(1)
PES 453
PES Ω (453)
CSC - CGT
REED-FL2-00 REED-FL5-00 REED-QDS-M8E
REED-QDS-M8U
(3)
REED-QDS-M12E
ISOCLAIR (2)
K - P2B - P2L
PES 450 - PES Ω (450)
PCN
(1) Detector designed for direct fi tting to "T" cylinder grooves
(2) Fastening kit required, see pages 7 and 8
(3) U.S. market

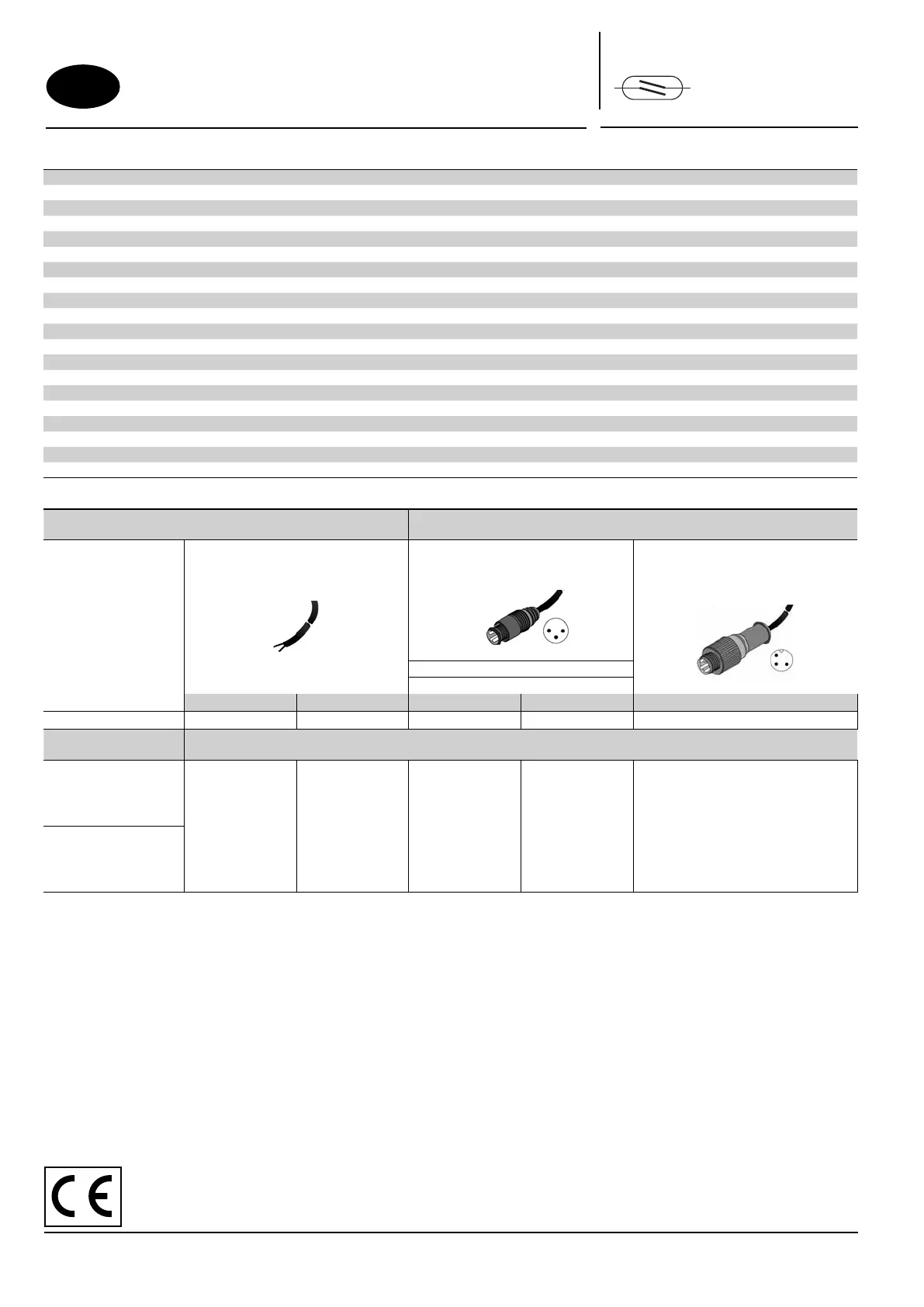

MAGNETIC POSITION DETECTORS
for "T" grooves
reed switch type
Series
REED
Type
2 wires
GB
