C.3 Level setup
C.3.1 Geometry
The transmitter configuration includes setting the tank geometry parameters, see Figure
C-4 and Figure C-5.

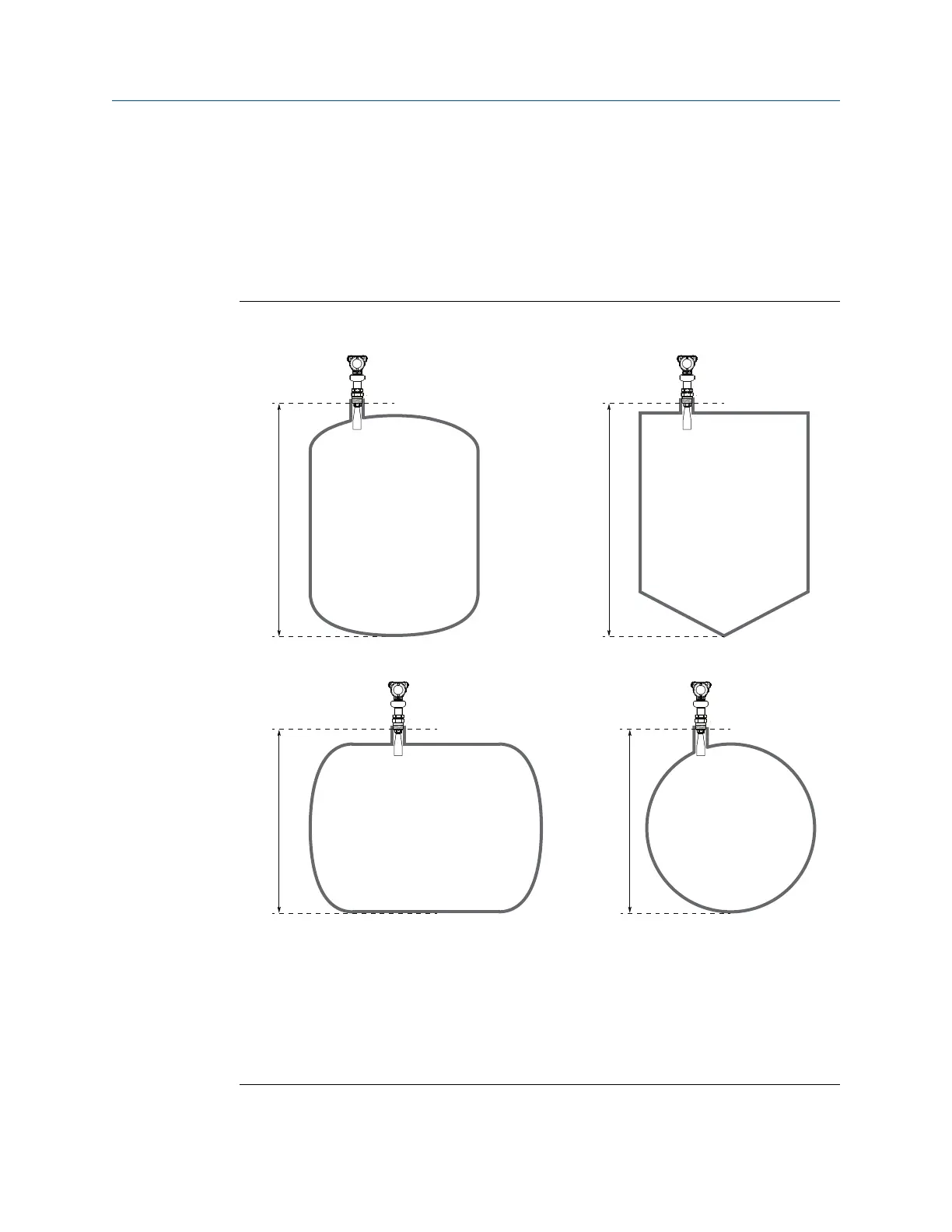

Figure C-4: Tank Geometry, Basic Dimensions
$
$
%
%%
&
&
$
%
&
$
&
'
)*
(
A. Device Reference Point
B. Reference Height
C. Zero Level
D. Vertical cylinder
E. Cubical Tank
F. Horizontal cylinder
G. Spherical tank
Reference Manual Configuration parameters
00809-0100-4408 February 2020
Rosemount 5408 and 5408:SIS Level Transmitters 255
