Emerson SC319C User Manual

2-4-4 U25NDA
[1]
(S-1)
(S-1)

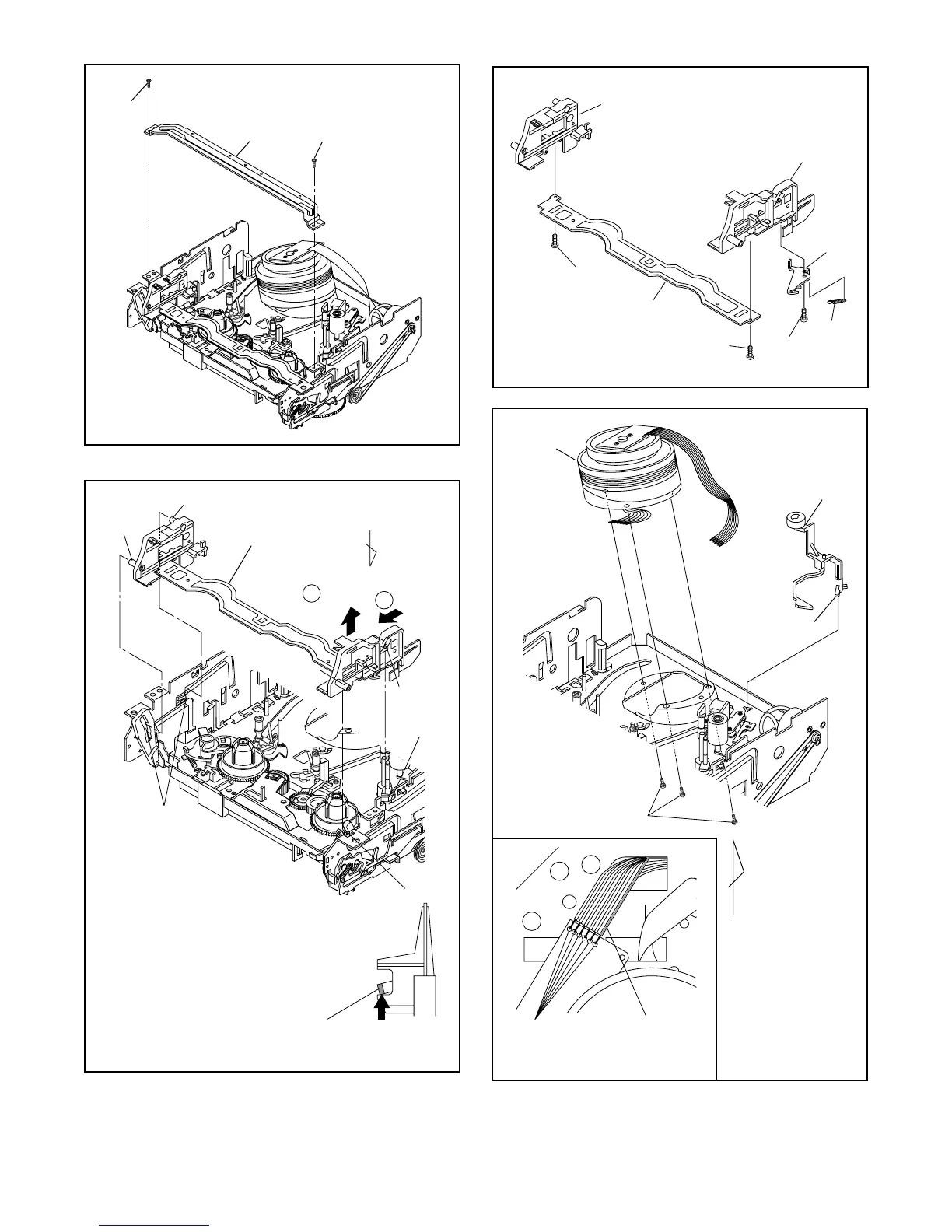

Fig. DM3
[2]
Pin A
Slots B
Pin C
Pin B
Pin D
Locking tab
View for A
Pull up
Slide
Slot A
Slot A
First, while pushing the locking tab as
shown in the right, slide and pull up the right
side on [2] to release Pin A and Pin B from
the slots A.
Then, remove Pin C and Pin D on [2] from
the slots B as shown.
1
2
A
Fig. DM4
[3]
[4]
[5]
[6]
(S-3)
(S-2)
(S-4)
(P-1)
Fig. DM5
[7]
[46]
(L-8)
A
View for A
(S-5)
Fig. DM6
Desolder
from bottom
Lead with
Blue Stripe
