SEMPELL MODEL PSRV - PRESSURIZER SAFETY RELIEF VALVES
TYPE VS99 PILOT OPERATED

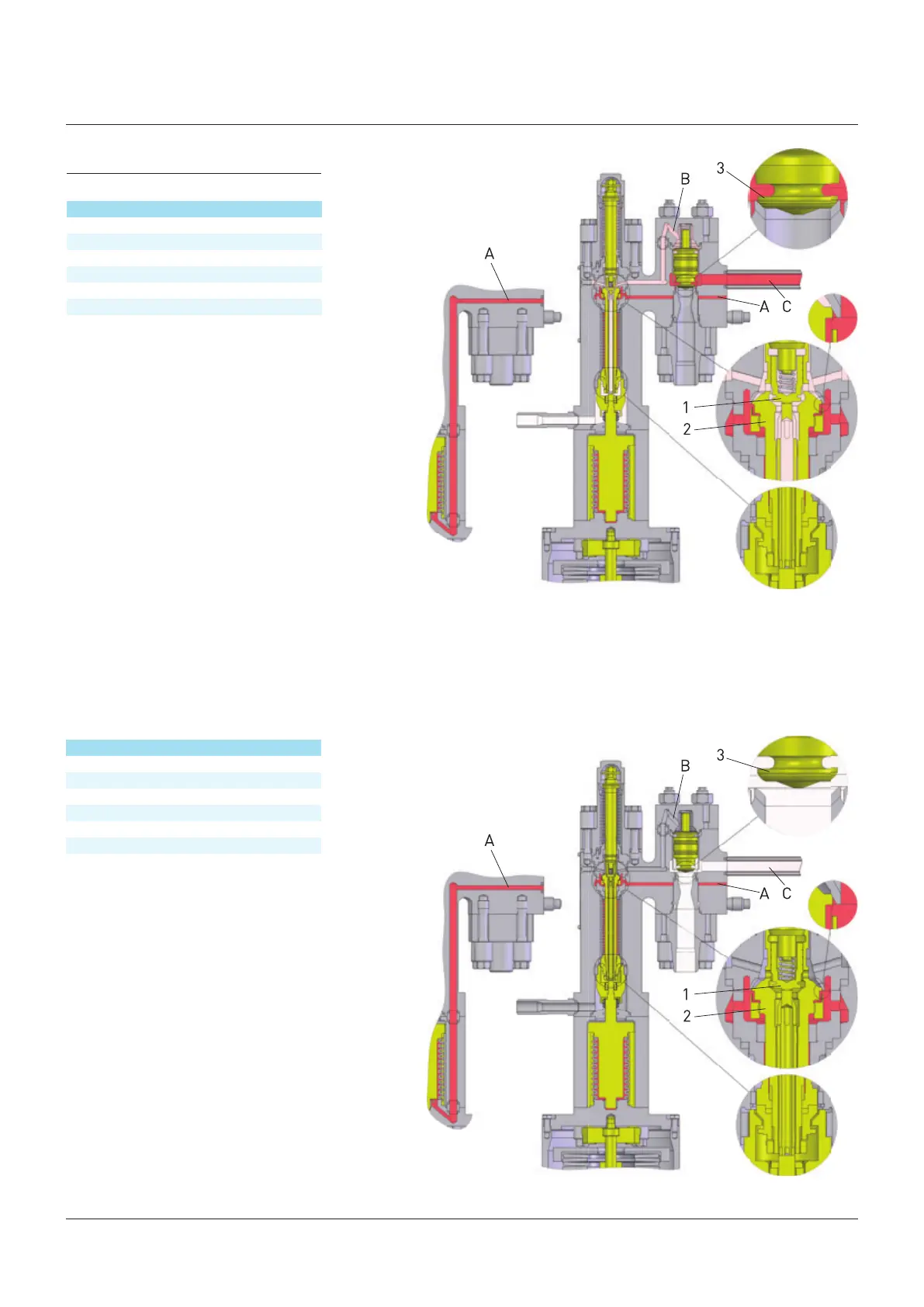

When the set pressure is reached, the opening
force on disc 1 is greater then the Δp existing
there and disc 1 opens suddenly.
If disc 1 is opened, chamber B is relieved above
disc 3 and disc 3 opens. The pilot line C to the
main valve is relieved and the main valve also
opens.
Disc 1 Open
Disc 2 Closed
Disc 3 Closed
Chamber A System pressure
Chamber B Reduced pressure
Chamber C System pressure
FUNCTION SIERION
Disc 1 Open
Disc 2 Closed
Disc 3 Open
Chamber A System pressure
Chamber B Atmospheric pressure
Chamber C Reduced pressure
