SEMPELL MODEL PSRV - PRESSURIZER SAFETY RELIEF VALVES
TYPE VS99 PILOT OPERATED
FUNCTION VCA

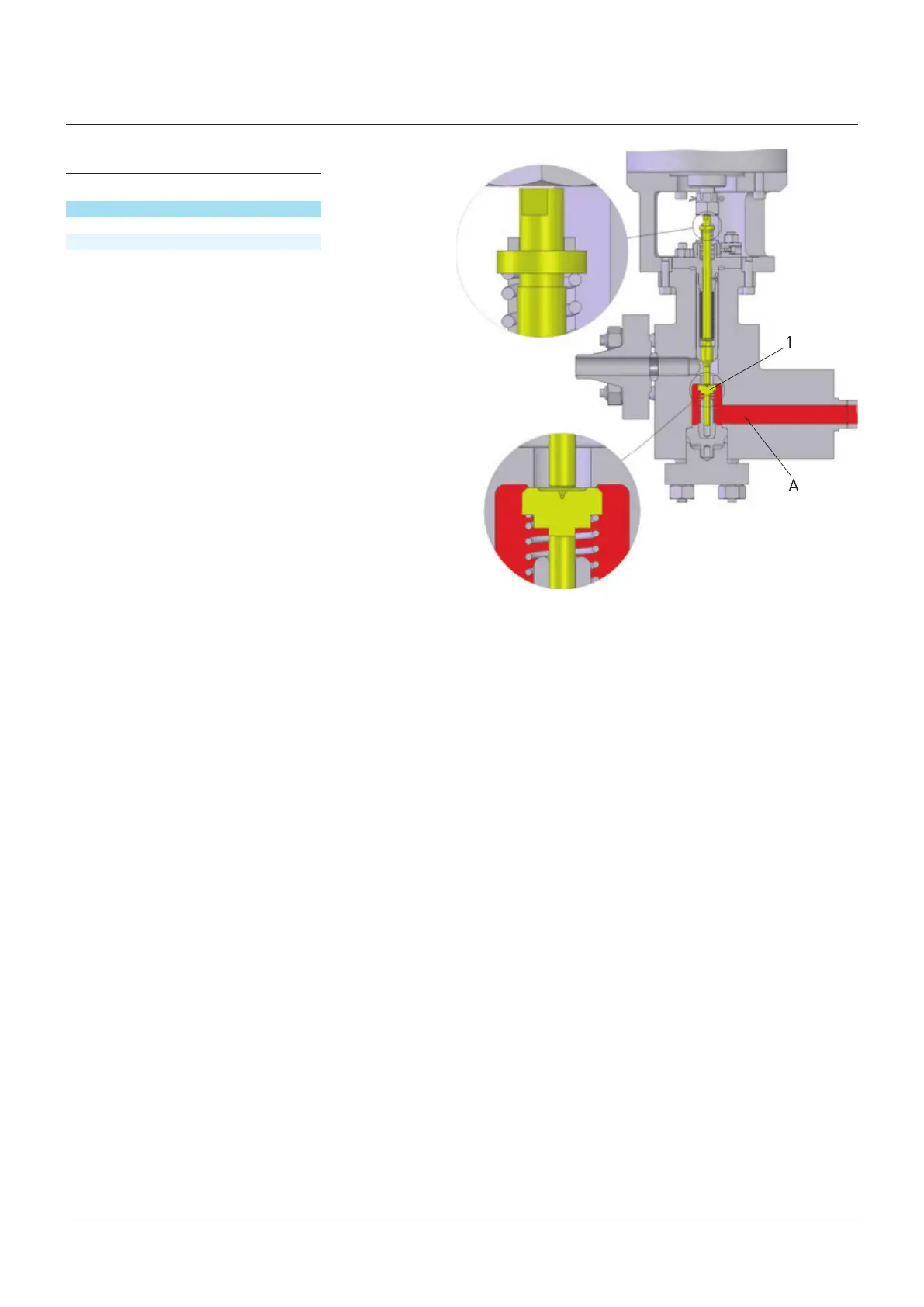

After a corresponding pressure increase in pilot
chamber A, the main valve closes also.
Solenoid 1 De-energized
Disc 1 Closed
Chamber A System pressure
