Emerson SOUTHTOWNE CF4900BS00 User Manual

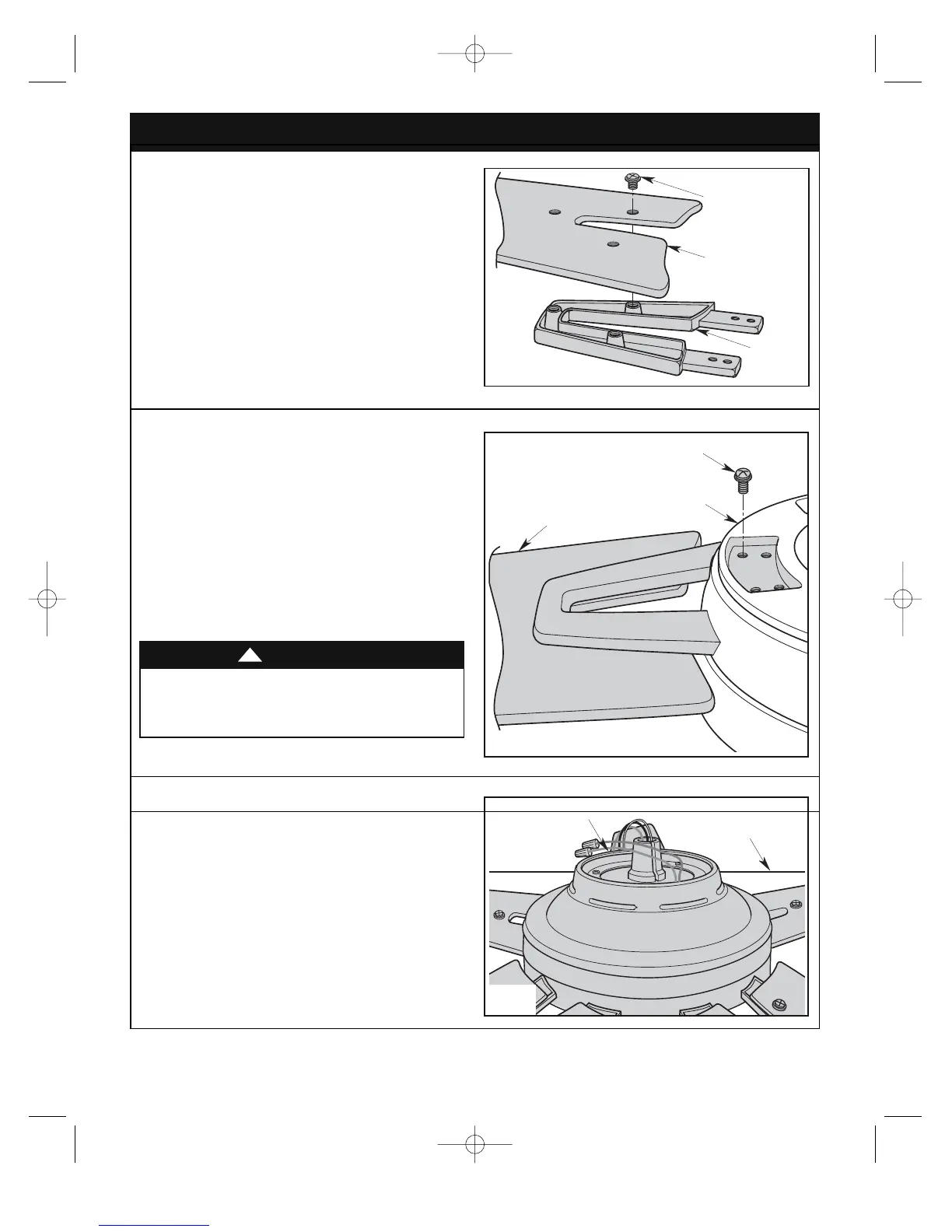

3. Ceiling Fan Assembly
5
emersonfans.com
Please contact 1-800-654-3545 for further assistance
U.L. Model No.: CF4900
3.1
Position the fan blade on top of the blade flange by
aligning the three raised bosses into the blade mounting
holes.
Install the three #10-32 x 1/4” Washer Head Blade
Screws into the mounting holes of the fan blade
assembly and tighten securely (Figure 1). I
Complete the installation of the remaining four blades
per the above instructions.
FAN BLADE (5)
#10-32 x 14" WASHER
HEAD BLADE SCREWS
(3 per blade assembly)
FAN BLADE
FLANGE (5)
Figure 1
3.2
Slide the fan blade assembly through the blade slot in
the fan motor housing assembly (Figure 2).
Mount the fan blade assembly to fan motor housing
assembly using four #10-32 x 5/8” oval head blade
screws (Figure 2).
NOTE: Take care not to scratch fan motor housing
assembly when installing blade assemblies.
Complete the installation of the remaining four blade
assemblies per the above instructions.
FAN BLADE ASSEMBLY
#10-32 x 5/8" OVAL HEAD BLADE SCREW (4)
MOTOR HOUSING ASSEMBLY
Figure 2
To reduce the risk of personal injury, do not bend the
blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING
!
3.3
Turn the partially assembled ceiling fan right side up for
final installation. Place the fan carefully onto the top of
the styrofoam as not to bend the ceiling fan blades
(Figure 3).
STYROFOAM
CEILING FAN
(partially assembled)
Figure 3
BP7485 Southtowne CF4900 12/4/13 10:15 AM Page 5
