74 Unidrive M / HS Frame 7 to 10 Power Installation Guide
Issue Number: 5

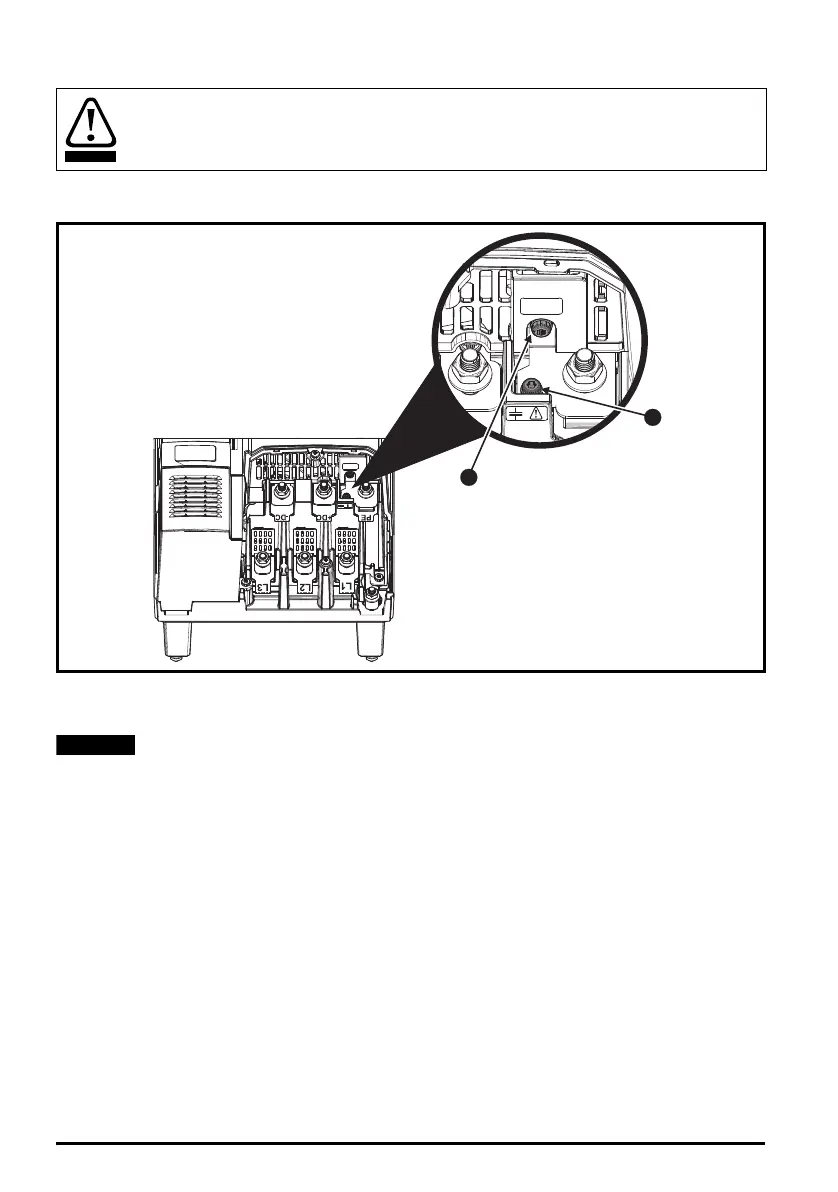

Figure 4-13 Removal of the size 7, 8 and 9A internal EMC filter and line to ground varistors (size 7
shown)
To electrically disconnect the Internal EMC filter, remove the screw as highlighted above (1).
To electrically disconnect the line to ground varistors, remove the screw as highlighted above (2).
The Internal EMC filter on size 9E and 10E cannot be removed.
The supply must be disconnected before removing the internal EMC filter.
Unidrive M frame7 to 10 Power Installation Guide issue5.book Page 74 Tuesday, May 24, 2016 11:52 AM
