EMERYMARK EM 10 - Page 61

61
N. OF
PART
NAME QUANT. CODE
EM-10
CODE
EM-20
CODE
EM-40
1 HEAD 1 222014 222014 222015
2 SECURE PRESSURE NUT 1 221507 221507 221507
3 SWING BOLT 1 221506 221506 221506
4 O-RING EXTRACTION LID 1 222048 222048 222049
5 O-RING DISPATCHER HEAD 1 222022 222022 222023
6 EXTRACTION LID 1 221600 221600 221601
7 SWING 1 221503 221503 221511
8 SWING LEVER 1 221014 221014 221014
9 SPRING OF SWING 1 222045 222045 222045
10 O-RING 1 222030 222030 222030
11 PRESSURE WASHER 3/8 1 202198 202198 202198
12 HEAD LID EM 1 221501 221501 221509
13 HEAD CAP SCREW EM 2 221054 221054 221054
14 HEAD HINGE 1 / 1 / 2 222011 222011 222011
15 HEAD HINGE BUSHING 1 222013 222013 222013
16 DOOR LOCK 1 221051 221051 221051
17 DOOR LOCK LEVER 1 221015 221015 221015
18 SECURE SUPPORT 1 221502 221502 221502
19 TOUCH SCREEN 1 214714 214714 214714
20 FRAME STICKER SCREEN PROTECTION 1 270023 270023 270023

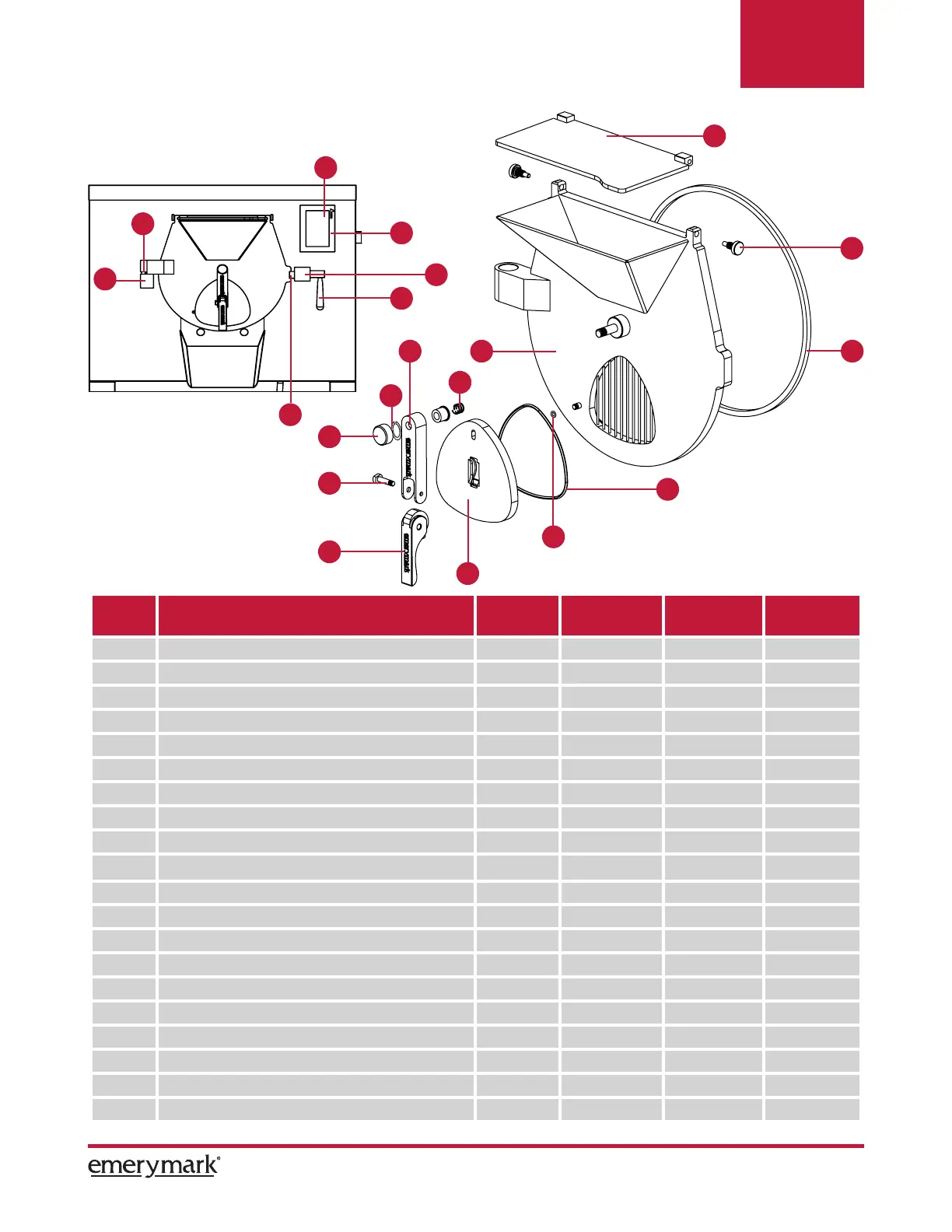

3.1.3 Head
1
2
8
3
5
4
6
7
9
10
12
13
11
17
18
20
19
16
15
14
