EMERYMARK EMP 200 - EMP-200 Electric Circuit Diagram

67

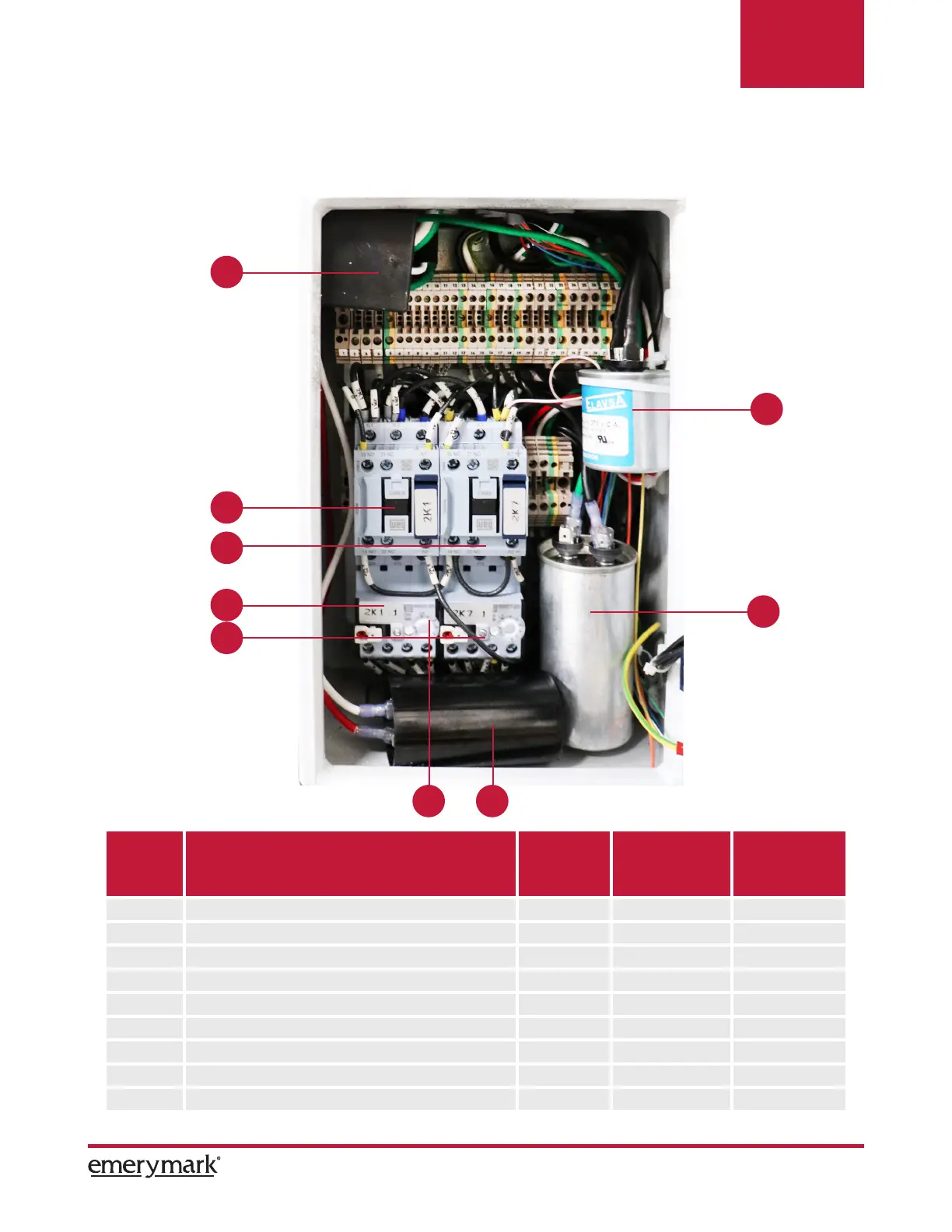

3.1.5 Electric circuit
EMP-200
Maintenance
N. OF
PART
NAME QUANTITY CODE
EMP-200
SINGLE-PHASE
CODE
EMP-200
THREE-PHASE
1 MAGNETIC CONTACTOR 32A 1 204176 204176
2 MAGNETIC CONTACTOR 9A 1 204177 204177
3 THERMAL PROTECTOR 7-10 AMP 1 --- 204179
4 THERMAL PROTECTOR 22-32 AMP 1 204180 204180
5 WORK CAPACITOR 5 MFD 1 204039 204039
6 THERMAL PROTECTOR 11-17 AMP 1 204184 ---
7 START CAPACITOR 189-227 MFD 1 204030 ---
8 RELAY FOR COMPRESSOR 1 204200 ---
9 WORK CAPACITOR 25 MFD 1 204035 ---
1
2
3
4
5
6 7
8
9
