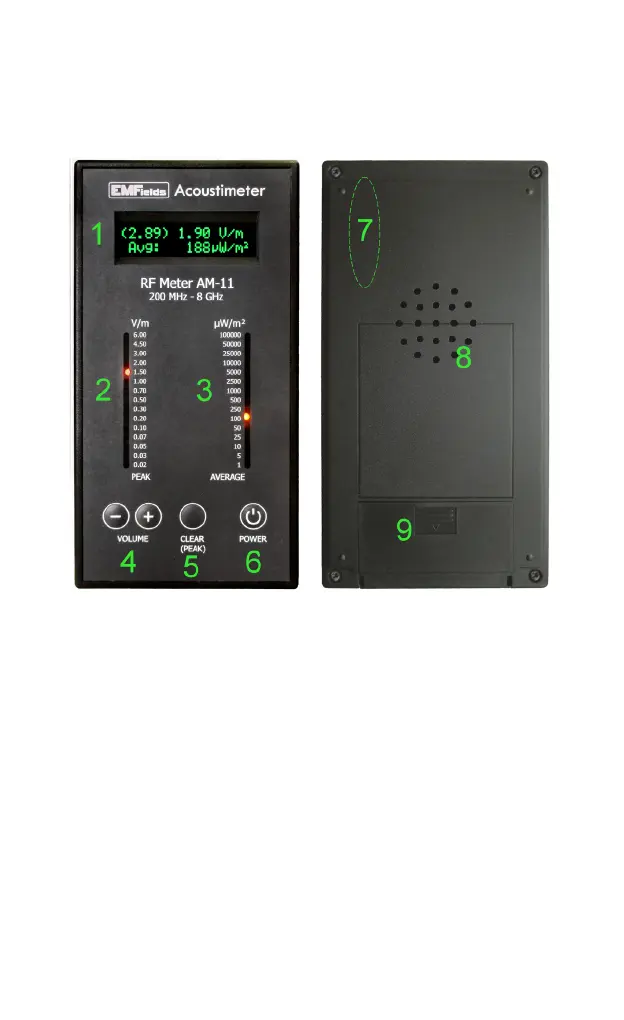

Layout of the meter
Key:
1. OLED Display
2. Peak signal LEDs
3. Average power LEDs
4. Volume controls (5 levels, - lower, + higher)
5. Clear (peak) hold button
6. Power button
7. Internal Antenna location
8. Loudspeaker
9. Battery compartment (for 2x AA cells)
